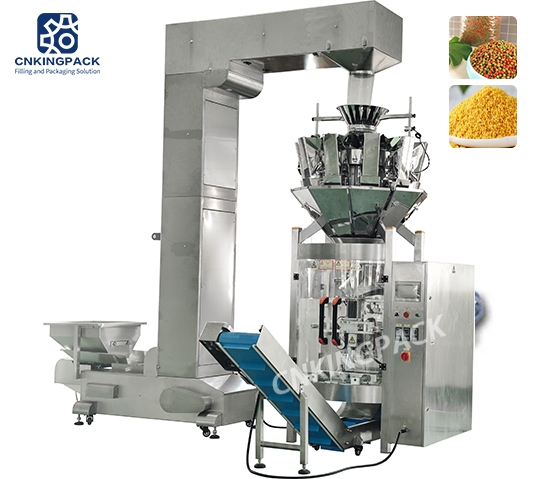

Multi-head Combination Scale Automatic Packaging Machine

Granule Packing Machine with Ten Scales


  • 01Used to pack granular or small products such as candy, peanuts, pistachios, melon seeds, potato chips, fish balls, etc.
  • 02It can be equipped with four-head scales, ten-head scales and 14-head scales.
  • 03The package weight is very accurate.
  • 04All stainless steel materials 5)Z type elevator


  • 01Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
  • 02Use famous brand electric and pneumatic components, stable and long life circle.
  • 03Use superior mechanical components, reduce the wear out loss.
  • 04Easy to install film, auto correcting the excursion of the film.
  • 05Apply advanced operating system, easy to use and reprogrammable.
  • 06The hopper can choose 1.3 liters and 2.5 liters


  • 01All stainless steel body, anti-rust and dust removal design.
  • 02Using thick board, the machine is more solid.
  • 03  Stable operation, simple operation and monitoring, multiple languages ​​can be selected.
  • 04Intelligent and efficient weighing.


This machine is suitable for candy, nuts, potato chips, jelly, fish balls, frozen shrimp and other granular or block products.

Parameter Data

Model KPL-420LK KPL-520LK KPL-620LK KPL-720LK
Max Film Width 420mm 520mm 620mm 720mm
Bag width 40-200mm 80-250mm 100-300mm 140-350mm
Bag length 40-300mm 40-350mm 80-400mm 40-450mm
Packing speed 15-70bags/min 15-60bags/min 10-50bags/min 10-40bags/min
Voltage 220v/380v,50-60Hz 220v/380v,50-60Hz 220v/380v,50-60Hz 220v/380v,50-60Hz
Power 3kw 3.5kw 3.8kw 4kw
Dimension 1400*1100*1500 1570*1140*1510mm 1700*1320*1800mm 1910*1420*2000mm
Weight 450kg 500kg 630kg 700kg
