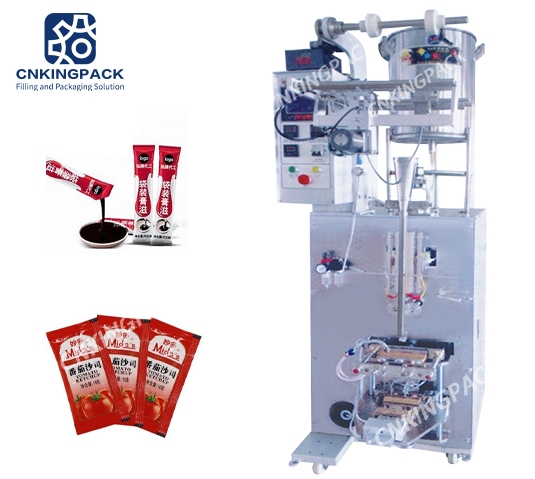

Automatic jelly packing machine

This machine is mainly used for liquid ice lolly (jelly stick), pure water, milk, soy sauce, vinegar and midecal and chemical liquid quantitative packaging.


This machine is designed for filling and back side sealing paste or liquid which is packed in bags like sauce
package,bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.It is widely used in food,beverage and chemical industries.


1.This machine can automatically complete olenoid valve control flow measuring-coding(optional)-bag making-filling-sealing-counting.

2.Computer/PLC control system, photoelectric tracking, maximizes the whole machine's control precision. reliability and the intellectualized degree.

3.Has fault display system, easy to operate and maintain.

4.Machine body and all food touching part are made by stainless steel

5.Suitable packing material:PET/AL/PE, PET/PP, BOPP Film, FOIL, Nylon compound film and other materials can be heat sealed.



1.Imported PLC control system and color touching screen enable easy and efficient operation.

2.Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.

3.Fully food level stainless steel 304 material, ensure packing products keep clean and machine long life-span.

4.Imported color mark sensor, accurate cutting positioning, excellent machine performance and beautiful packaging.

5.A variety of automatic alarm protection functions are used to minimize losses.



Widely applied for food, Medicine, hand sanitizer chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid and so on.

Parameter Data

Packing speed

30-80 bags/min

Packing range


Film width

Max 280mm

Making bag size

L: 50-330mm, W: 15-130mm

Packing accuracy

≤ ±1% (depends on liquid)


1.6 KW

Power supply

220V, 50/60Hz

Seal type

Pillow seal, 4 sides seal

Net weight


Machine dimension

L800 × W900 × H1800mm
