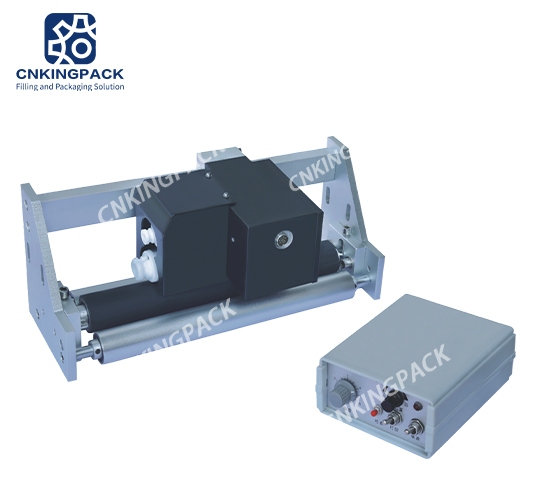

DH-1100A Ink Roller Coding Machine
This machine uses advanced hot code printing technology, adopts hot printing belt instead of ink printing.
It is used for printing factory name, production date, expire date, batch number, etc on plasitc, aluminum or paper bags.
Description
The machine can be used to math with vertical and horizontal automatic packaging machine, and print the label of the product.
Features
- 01The machine is equipped with a motor, which is triggered by synchronous signal.
- 02It is small in size, easy to install, easy to print, clear in printing, and does not lose color。
- 03The use of a special and clever film wrapping structure solves the synchronization error of fast coding.
Advantage
- 01The machine can be used to math with vertical and horizontal automatic packaging machine, and print the label of the product.
- 02It can print by solid-ink roller; the character is clear, instant printing and instant dry, with strong adhesion.
- 03It can list 10 cheracters one line,
- 04The print location of photoelectricity tracing can be adjustable, with accuracy.
Applications
It can print by solid-ink roller; the character is clear, instant printing and instant dry, with strong adhesion.
It can list 10 characters one line,
The print location of photoelectricity tracing can be adjustable, with accuracy.
Parameter Data
|
Supply voltage
|
220V / 50HZ
|
|
Power
|
200W
|
|
Printing range
|
5line Max15letteis per line
|
|
Printing speed
|
20~200pcs/min
|
|
Printing position
|
Set freely
|
|
Temperature range
|
0o-300℃
|
|
Width of packaging film
|
Ma≤450mm
|
|
Appearance and size
|
630x320x170mm
|
|
Net weight
|
15.5kg
|
