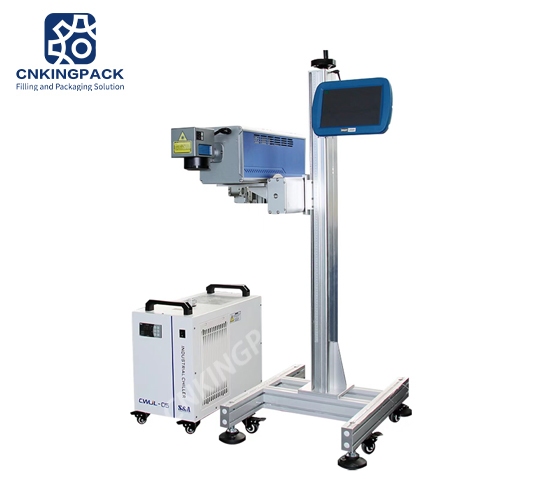

UV Laser Mark Printer Machine
UV laser use for not transparent plastic, PVC bag, PVC label, medicine bottle.
Description
High-speed laser printing equipment is the fourth generation of high-speed laser printing system of our company. It adopts integrated and modular design and standardized manufacturing. It integrates miniaturization, high flexibility, high speed and user-friendly operation, which greatly improves comprehensive product capabilities.
Ultraviolet laser marking machine is mainly based on its unique low-power laser beam, which is especially suitable for the high-end market of ultra-fine processing. The surface marking of packaging bottles for cosmetics, medicines, food and other polymer materials has fine effects and clear and firm marks. Better than inkjet coding and no pollution; flexible PCB board marking, scribing; silicon wafer micro-hole, blind hole processing; LCD liquid crystal glass two-dimensional code marking, glassware surface drilling, metal surface coating marking, Plastic buttons, electronic components, gifts, communication equipment, building materials, etc.
Features
Compared with ink jet printer, laser marking machine has functions of no consumption, no pollution, no noise, energy saving and environmental protection.
Advantage
- 01Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect.
- 02Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours.
- 03Environmentally friendly non-toxic and no noise pollution.
Applications
High molecular polyethylene materials, such as food, beverages, pipes, daily chemicals, etc.
Parameter Data
|
Application industry |
High molecular polyethylene materials, such as food, beverages, pipes, daily chemicals, etc. |
|
|
Laser trimming machine characteristics |
Machine material |
Full alumina structure |
|
|
Laser output power |
≤5W |
|
|
Laser frequency |
20-100KHz |
|
|
Laser |
UV laser generator |
|
|
Laser wavelength |
355nm |
|
|
Marking speed |
≤12000mm/s |
|
|
Control board |
Industrial grade highly integrated all-in-one motherboard |
|
|
Operating system |
Linux or Windows |
|
|
Cooling system |
Water cooling (temperature setting 25°C) |
|
Marking system |
Special for laser printing |
|
|
|
Operating platform |
10 inch touch screen |
|
|
Interface |
SD card interface/USB2.0 interface/communication interface |
|
|
Data protection |
Ensure user data is not lost in the event of an unexpected power outage |
|
|
Camera rotation |
The scanning head can be rotated at any angle 360 degrees |
|
|
Voltage |
AC220V,50-60Hz |
|
|
Total power |
1200w |
|
|
Degree of protection |
IP54 |
|
|
Total weight |
90kg |
|
Pollution level |
Marking itself does not generate any chemicals |
|
|
Environmental resistance |
Storage environment temperature |
15℃-30℃ |
|
|
Working temperature |
|
|
|
Storage environment humidity |
10%-85%(no condensation) |
|
|
Working environment humidity |
|
|
Lens parameters |
Marking range |
110*110mm |
|
Marking type |
dot matrix, vector |
|
|
|
Minimum Line Width |
0.03mm |
|
|
Positioning accuracy |
0.01mm |
|
|
Positioning |
Red light positioning |
|
|
Focus method |
Double red focus |
|
Number of marking character lines |
Edit freely within the marking range |
|
|
Line speed |
0-200m/min |
|
|
character type |
Support font type |
Single-line font/double-line font/bit matrix font |
|
Graphics file format |
PLT format vector file input/output |
|
|
File format |
BMP/DXF/JPEG/PLT |
|
|
Graphic element |
Point, Line, Arc Text, Rectangle, Circle |
|
|
|
Variable text |
Serial number, time, date, counter, shift |
|
|
Barcode |
Code39、Code93、Code128、EAN-13 and so on |
|
QR code |
QRCode、Data Matrix and so on |
|
|
|
|
|
|
|
|
|
|
|
Product detection input |
NPN/PNP/24V |
|
|
Product speed detection |
NPN/PNP/24V/5V/RS422 Synchronizer or sync signal
|
|
communication interconnection |
USB |
|
|
|
PLC |
|
|
|
PLC communication output |
|
|
Technical Information |
Provide equipment simple operation manual, detailed software instructions (CD-ROM), relevant qualification certificates |
|
