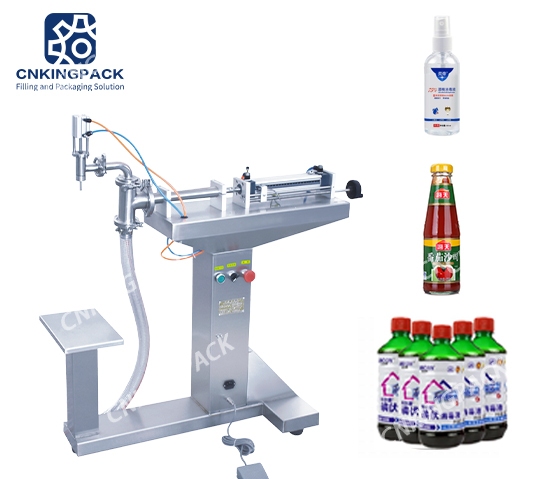

Floor type Semi Automatic Liquid Filling Machine

This machine is suitable for quantitative filling with low viscosity and no gas liquid, such as mineral water, juice, pesticide, soy sauce, and vinegar.

Description

This machine is suitable for quantitative filling with low viscosity and no gas liquid, such as mineral water, juice, pesticide, soy sauce, and vinegar.

Features

  • 01For high viscosity liquid filling and paste filling;
  • 02 Adopts pneumatic working principle, simple operation, high filling precision;
  • 03A certain concentration or certain size granular materials ideal filling  equipment;
  • 04 Stainless Steel Construction;
  • 05 Rugged Rotary Valve System Design;
  • 06Pneumatic Operation,the air compressor should be prepared by the buyer.
         The requirement of the air compressor:Pressure: 0.4-0.6MPa,Power: 1100W, Gas Capacity: >50L
  • 07 Adjustable Piston Feed Speed;
  • 08No-drip Option Included and Installed;
  • 09Extremely Easy to Clean and Maintain;
  • 10Sanitary Stainless Steel Quick Disconnect Fittings;
  • 11Extremely Easy to Operate;
  • 12Quick Connect/ Disconnect Pneumatic Fittings;
  • 13Stainless steel Hopper included

Advantage

  • 01The filling volume is accurate and the error is small.
  • 02The machine structure is simple and easy to operate.
  • 03No noise, low energy consumption, energy saving and environmental protection.

Applications

This machine is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant,engine oil products. It is able to integrate to capping machine and labeling machine in bottling line,fully complete and intelligence control advantage.

Parameter Data

Machine model G1WYD-100 G1WYD-300 G1WYD-500 G1WYD-1000 G1WYD-3000 G1WYD-5000
Filling speed 10-30 bottle /min
Filling range 10-100ml 30-300ml 50-500ml 100-1000ml 500-3000ml 1000-5000ml
Air pressure 0.4~0.6mpa
Filling error ≤ ±1%
Voltage 220V/50Hz or 110V/60Hz (Optional)
