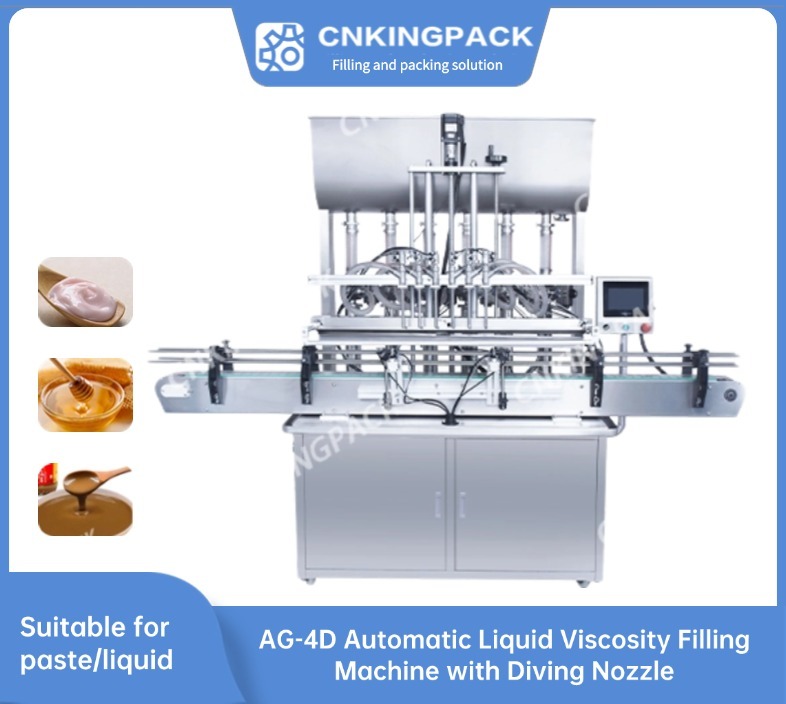

AG-4D Automatic Liquid Viscosity Filling Machine with diving nozzle

This filling machine is suitable for filling liquid products that are prone to foaming, such as detergent, toilet cleaner, cleaning agent, etc.
It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

Description

This filling machine is suitable for filling liquid products that are prone to foaming, such as detergent, toilet cleaner, cleaning agent, etc.
It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

Features

  • 01 Adopt volumetric piston pump, pneumatic control ss check valve to filling various kinds of liquid.
  • 02 Pneumatic control piston pump, easy adjust filling volume.
  • 03 Auto shut on/off filling nozzle, prevent drop while filling.
  • 04 Automatic tray collector under filling nozzle, to avoid dropping on bottle.
  • 05 Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
  • 06Frequency speed control, no bottle no fill intelligence.
  • 07 Main electric elements adopt Wenview , Delta, CHNT brand.
  • 08Whole machine designed and manufactured accordance to GMP regulation.

Advantage

  • 01 Double-row piston cylinder structure, stable and reliable structure. The servo motor drives the double screw transmission mechanism and adopts PLC program control to ensure the high precision of the piston movement stroke.
  • 02 When filling a new specification dose, the dose adjustment can be done at one time on the touch screen, and the fine adjustment of the dose of each filling head is also carried out directly on the touch screen.
  • 03The submerged filling mode in which the cylinder drives the filling head to operate,with the adjustable variable speed filling function, can reduce the foam production of easily foamable materials during filling and prevent bottle mouth pollution caused by material overflow.
  • 04Optimized in and out bottle control mode, two modes of normal/fast can be selected.In the fast bottle in and out mode, the bottle is fed in at the same time as the bottle is discharged, and there is no delay between the in and out of the bottle, which effectively improves the production efficiency.
  • 05 Piston seals using the latest tetrafluorocarbon carburizing technology improve the wear resistance and applicability of piston seals to various materials, and effectively solve the problem of piston filling machines for emulsifiable oils, water-soluble suspensions, and high viscosity. The problem that thick materials cannot be used universally.

Applications

01. Beverage field (such as water, juice, beer, liquor, vodka, wine etc.)
02. Food field (such as honey, sauce, oil, chocolate, vinegar etc. )
03. Chemical and Pharmaceutical field (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
04. Cosmetics field (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )

Parameter Data

Model

AG-2D

AG-4D

AG-6D

Filling Head

2

4

6

Filling volume

100-1000ml

1000--5000ml

100-1000ml

1000--5000ml

100-1000ml

1000--5000ml

Filling type

Piston Quantitative Filling

Piston Quantitative Filling

Piston Quantitative Filling

Speed

300-600B/H

600-1000B/H

1000-1500B/H

Filling accuracy

±1%

±1%

±1%

Material

Stainless steel 304

Stainless steel 304

Stainless steel 304

Air pressure

0.5--0.8Mpa

0.5--0.8Mpa

0.5--0.8Mpa

Power

220V,50Hz,500W

220V,50Hz,500W

220V,50Hz,500W

Air consumption

200-300L/min

200-300L/min

200-300L/min

Weight

300KG

450KG

600KG
