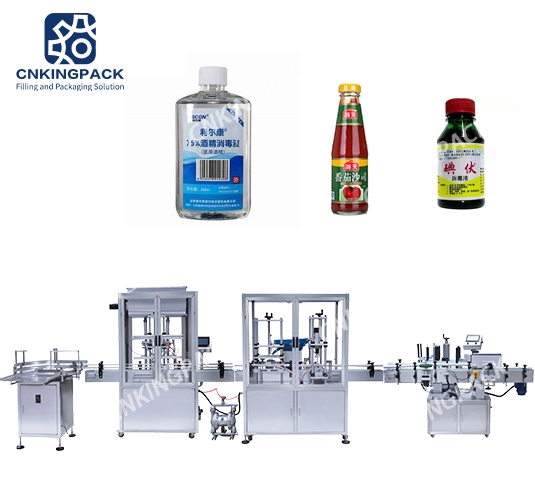

Filling Capping Labeling Line

This line is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

• 01 Adopt volumetric piston pump, pneumatic control ss check valve to filling various kinds of liquid from light to medium heavy.
• 02 Pneumatic control piston pump, easy adjust filling volume.
• 03 Auto shut on/off filling nozzle, prevent drop while filling.
• 04 Automatic tray collector under filling nozzle, to avoid dropping on bottle.
• 05 Label pre-feeding system makes the label feeding stable, stickup smoothly and label position precise.
• 06 Label-feeding adopt tensioning design to ensure that the coding quality, and can accurately control the length and uniformity of the label.

• 01 When filling a new specification dose, the dose adjustment can be done at one time on the touch screen, and the fine adjustment of the dose of each filling head is also carried out directly on the touch screen;
• 02 The submerged filling mode in which the cylinder drives the filling head to operate,with the adjustable variable speed filling function, can reduce the foam production of easily foamable materials during filling and prevent bottle mouth pollution caused by material overflow;
• 03 PLC controlled , touch screen operation, integrated cap capping (automatic cap sorting/cap feeding can be option);
• 04 Automatic infeed cap and bottle position-setting and orientation, adjustable torque control;
• 05 Adopt High stability Keyence labeling system, operation is stable and high-speed;
• 06 Using touch-screen control operating system, simple, practical, efficient;
• 07 Adapt variety shape of object in top labeling;

• 01 Beverage field (such as water, juice, beer, liquor, vodka, wine etc.)
• 02 Food field (such as honey, sauce, oil, chocolate, vinegar etc. )
• 03 Chemical and Pharmaceutical field (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
• 04 Cosmetics field (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
