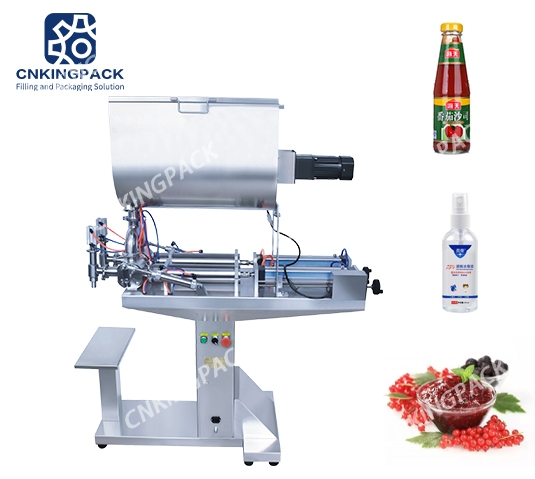

Floor type Viscosity Paste Filling Machine with mixer

The paste filling machine is used of Tomato sauce, peanut butter, salad dressing, chili sauce, bean paste, sesame, jam, sauces,pasta sauce and special industry paste filling.

Description

The paste filling machine is used of Tomato sauce, peanut butter, salad dressing, chili sauce, bean paste, sesame, jam, sauces,pasta sauce and special industry paste filling.

Features

  • 01 This machine adopts pneumatic control and owns a wide application scope, simple measuring regulation, good shape and convenient cleaning, suitable for the explosion-proof unit.
  • 02 Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
  • 03 The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.
  • 04 Filling volume, filling speed can be adjustable, filling accuracy is high.
  • 05 Adopt the anti-drip, Anti-drawing and lifting filling device.

Advantage

  • 01The filling volume is accurate and the error is small;
  • 02The machine structure is simple and easy to operate;
  • 03No noise, low energy consumption, energy saving and environmental protection.

Applications

The paste filling machine is used of Tomato sauce,peanut butter,salad dressing,chili sauce,bean paste,sesame,jam,sauces,pasta sauce and special industry paste filling.

Parameter Data

Model

KP-100U /300U /500U /1000U /3000U /5000U

Voltage

AC220V

Power

120W

Filling range

10-100ml   30-300ml   50-500ml

100-1000ml   500-3000ml   1000-5000ml

Production speed

10-25pc/min

Air pressure

0.4-0.6mpa

Suit bottleneck drameter

≥50mm

Filling head

1

Note:Contact with the materials are made of stainless steel 304
