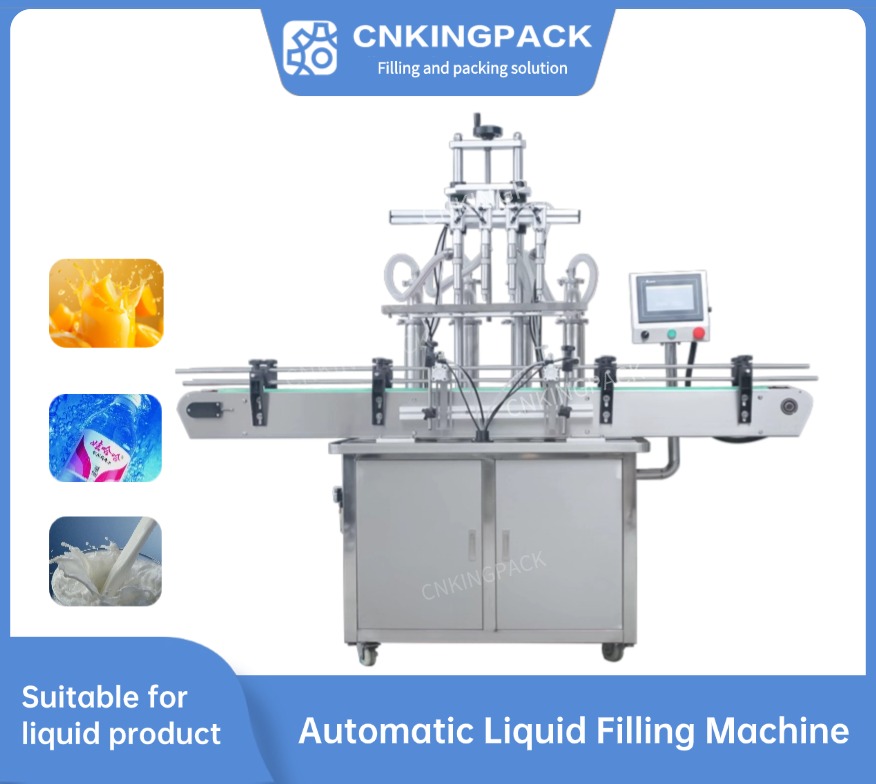

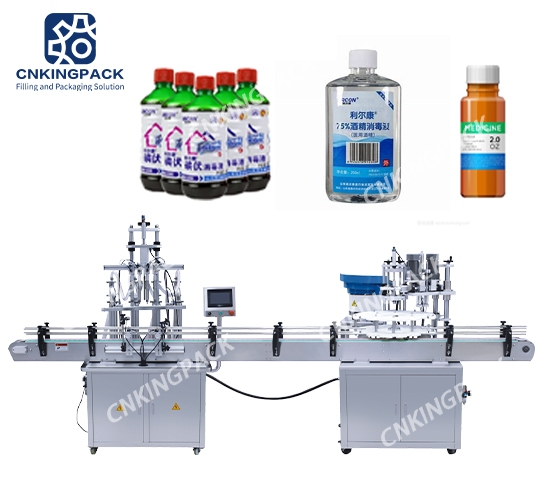

Filling and Rotary Capping Line

This line is applied for liquid filling similar like water, wine, milk, edible oil, flavor drinks, vinegar products.
It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

• 01 Adopt volumetric piston pump, pneumatic control ss check valve to filling various kinds of liquid；
• 02 Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts；
• 03 Frequency speed control, no bottle no fill intelligence；
• 04 Main electric elements adopt Wenview , Delta, CHNT brand；
• 05 Whole machine designed and manufactured accordance to GMP regulation；
• 06 For special bottles and caps, combined with customer requirements, tailor-made the most efficient capping machine for customers.

• 01 Optimized in and out bottle control mode, two modes of normal/fast can be selected.In the fast bottle in and out mode, the bottle is fed in at the same time as the bottle is discharged, and there is no delay between the in and out of the bottle, which effectively improves the production efficiency.
• 02 Piston seals using the latest tetrafluorocarbon carburizing technology improve the wear resistance and applicability of piston seals to various materials, and effectively solve the problem of piston filling machines for emulsifiable oils, water-soluble suspensions, and high viscosity. The problem that thick materials cannot be used universally.
• 03.This machine has high degree of automation as it integrates auto arranging,putting up and screwing cap.
• 04.Capping toraue can be set according to requirements.
• 05.With a small number of parts replacing like mould,auto capping can be suitable for different sizes of bottles.
• 06.There are inverted rotation and a pre-rotation function for putting up caps to ensure accurate capping and high capping pass rate.
• 07.The shell,frame,main structure,etc.of the machine are mainly made from 304 stainless steel so it is with beautiful appearance.
• 08.For this machine PLC with man-machine interface(touching screen)control was adopted,and for the main elecrtical and pneumatic componets we choose domestic well-known brands to ensure stable performance.

01. Beverage field (such as water, juice, beer, liquor, vodka, wine etc.)
02. Food field (such as honey, sauce, oil, chocolate, vinegar etc. )
03. Chemical and Pharmaceutical field (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
04. Cosmetics field (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )
