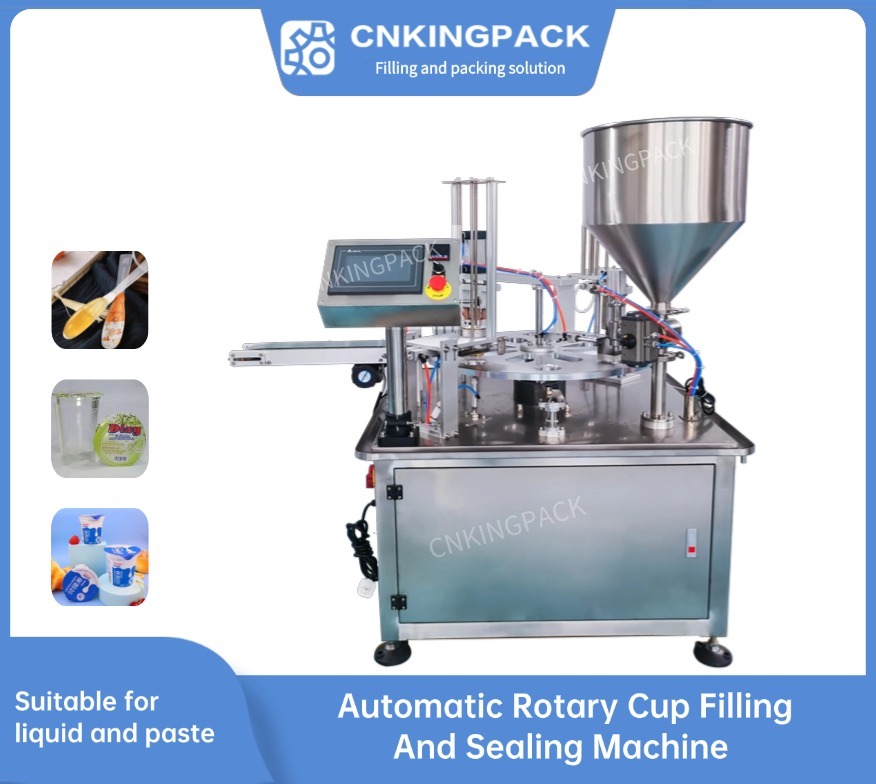

Automatic two cups Cup Filling and Sealing Machine
Description
The whole machine is made of stainless steel 304, touch screen human-computer interaction, easy to operate and humanized, and has a variety of fault prompting functions;
The piston filling system has high precision and a tight seal. This machine is suitable for all kinds of viscous materials. It is widely used in food, daily chemical and other industries. It is an ideal cup/box product filling and sealing equipment.
Features
1. Advanced design, reasonable structure, reliable performance;
2. Touch screen automatic operation, PLC control;
3. Adjustable production speed;
4. Tight and beautiful sealing;
5. Special customized equipment according to the customer requirements and other accessibility features.
Advantage
1.Falling cups: Cups drop down one by one automatically.
2.Filling liquid in the cup
3.Sucking putting lids: Vacuum arm suck and put foils.
4.Sealing lids: 0-400 degrees, can be adjusted.
5.Finished cups-output: Push-out finished cups to a platform.

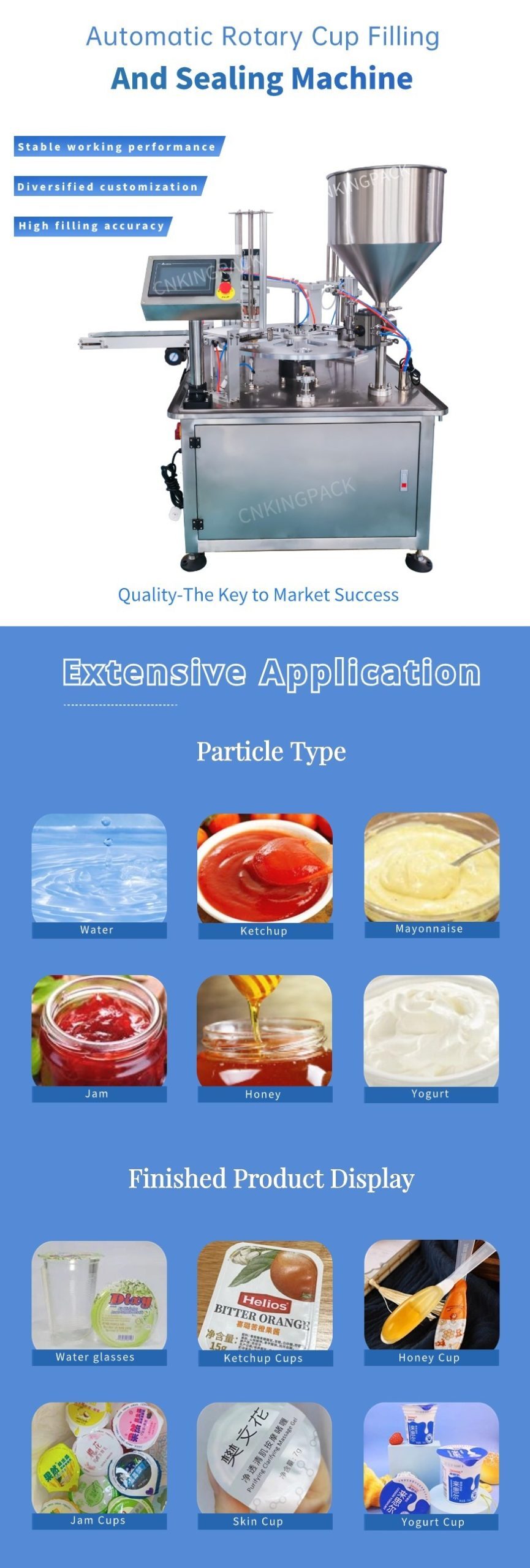

Applications
The filling and sealing machine is suitable for automatic packaging of various cups of liquid paste, granules, powders and other products:
Cup paste: such as mineral water, yogurt, fresh milk, jelly, juice, milk tea, sauce, sweet sauce, etc.;
Cup granules: such as popcorn, peanuts, rice, candy, etc.;
Cup powder: such as coffee powder, flour, coconut powder and so on.
Parameter Data
Model |
KPL-100 |
KPL-200 |
Package Speed |
1000pcs/h |
2000pcs/h |
Voltage |
110/220/380v |
110/220/380v |
Power |
1kw |
1.6kw |
Working Pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
Filling Volume |
10-300ml |
10-300ml |
Cup Caliber |
Customizable |
Customizable |
Overall Dimension |
100*100*175cm |
120*120*175cm |
Weight |
300kg |
380kg |
