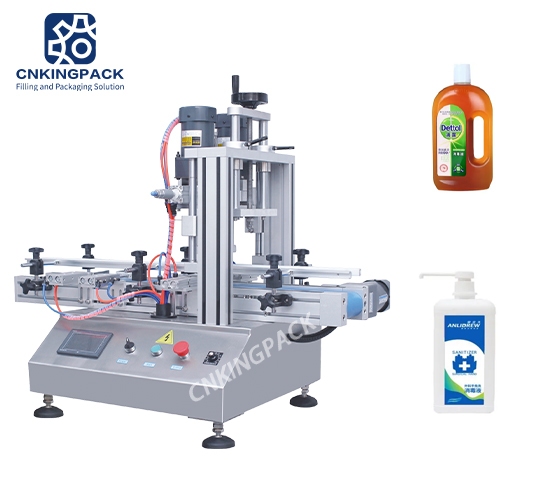

DXCJ-1 Old Type Desktop Capping Machine

This automatic capping machine is suitable for round cap,spray/pump tightening, can work with existing filling line.Electrical control movement, strong stability;With positioning devices, standard Capping, easy to operate

Description

This automatic capping machine is suitable for round cap,spray/pump tightening, can work with existing filling line.Electrical control movement, strong stability;With positioning devices, standard Capping, easy to operate;Wide capping range suitable for different shapes and sizes.

Features

  • 01Intelligent operation panel make the working data visual,this help to control the machine better.and it is with stop button,can protect the machine from damage and keep the operator safe during working.
  • 02There is no limitation of cap shapes,it is suitable for different kinds of bottle caps like spray bottle caps,dropper bottle caps.Caps diameter should be within φ 20-50mm.
  • 03The conveyor is with bottle guiding device which is designed for arranging bottles in order.The high quality conveyor helps to improve working speed and save a lot of labor.
  • 04With oil-water separator which can help you check the air pressure in all the real time and filter impurities.This machine should work with air compressor and customers need to buy this separately,if you need this please contact with us.

Advantage

  • 01PLC controlled , touch screen operation, integrated cap capping (automatic cap sorting/cap feeding can be option)
  • 02Automatic infeed cap and bottle position-setting and orientation, adjustable torque control.
  • 03Gentle manipulation, no scratch and injury to caps and containers
  • 04Easy changeovers, no need to change the fitting. just simple adjust.easy to operate.
    one line capable of several bottle and caps.
  • 05 Connected with filling machine and labeling machine easily
  • 06Module structure, manipulate on the touch screen, easy maintenance

Applications

Widely used in detergent shampoo, shower gel, hand cleaning gel, laundry detergent and many other daily chemical products.resolved the difficult problem on nozzle cap, pump cap, spray pumps, spray gun in hand button Capping;Lock lid with adjustable speed can be adjusted according to different cap tightness.

Parameter Data

Model

DXCJ-1

Application

Pump cap ,needle cap & standard cap capping

Production

1000-2000B/Hour

Power

220V 50Hz  0.5KW

Cap height

10-30mm

Cap diameter

Φ 19--Φ 55mm(can be customized)

Bottle height

80-350mm

Bottle diameter

Φ35-Φ100mm (can be customized)

Air supply

0.4-0.6Mpa

 Weight

115Kg

Dimension

1200*800*1050mm
