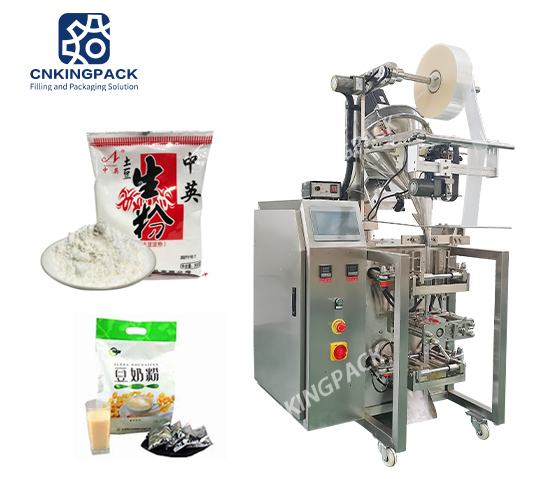

KPL-N320SFP New type Automaitc Powder Packing Machine 4 side Sealing

Suitable for packing milk powder, milk tea powder, protein powder, grain powder, nutrition powder, soy milk powder, condiment, spices, herbal powder , medical powder , chilli powder ,coffee powder, curry powder, corn starch, stevia powder, cocoa powder, flour, starch, chemical powder, amylum, etc.

Description

This is powder packing machine,it can pack milk powder, milk tea powder, protein powder, grain powder, and so on. The bag style can be three sides sealing,back sealing and four side sealing. It can also be made into special-shaped bags such as easy-to-tear bags.

Features

  • 01,All the work of bag making, auger filler measuring, product filling, sealing, counting can be done automatically.
  • 02PLC control system, photoelectric tracking, high reliability and intellectualized degree.
  • 03Equipped with fault display system, easy to operate and maintain.
  • 04Make punching blade (round/ euro hole) and linked bags device after customer's request.
  • 05Machine body and all food touching part are made by stainless steel.
  • 06Can adjust the bag length on the computer screen of the machine, different bag width need to change the bag former mould on the machine at some extra cost.
  • 07If filling weight range is too vast, need to change the measuring system mould(screw), to achieve more accurate weight.

Advantage

  • 01The touch screen operation, PLC control, drive stepper motor to control the bag length, stable performance, easy to adjust and accurate detection. Choose the intelligent temperature controller and PID control
  • 02Configure plexiglass protective cover,Beautiful and safe.
  • 03All made of stainless steel material, with stable working performance and durability.
  • 04Low energy consumption, low noise, energy-saving and environmentally friendly, and simple operation.

Applications

Suitable for packing milk powder, milk tea powder, protein powder, grain powder, nutrition powder, soy milk powder, condiment, spices, herbal powder , medical powder , chilli powder ,coffee powder, curry powder, corn starch, stevia powder, yoghurt powder, cocoa powder, flour, starch, chemical powder, amylum, etc.

Parameter Data

Model

KPL-N320SFP

Packing speed

30-60 bags/min

Packing range

5-70g

Film width

≤ 320mm

Making bag size

 L: 30-180mm, W: 15-150mm

Packing accuracy

≤ ±1%

Power

2.2KW

Power supply

AC220V, 50/60Hz

Seal type

3/4 sides seal,central seal

Net weight

300kg

Machine dimension

L1100 × W850 × H1800mm
