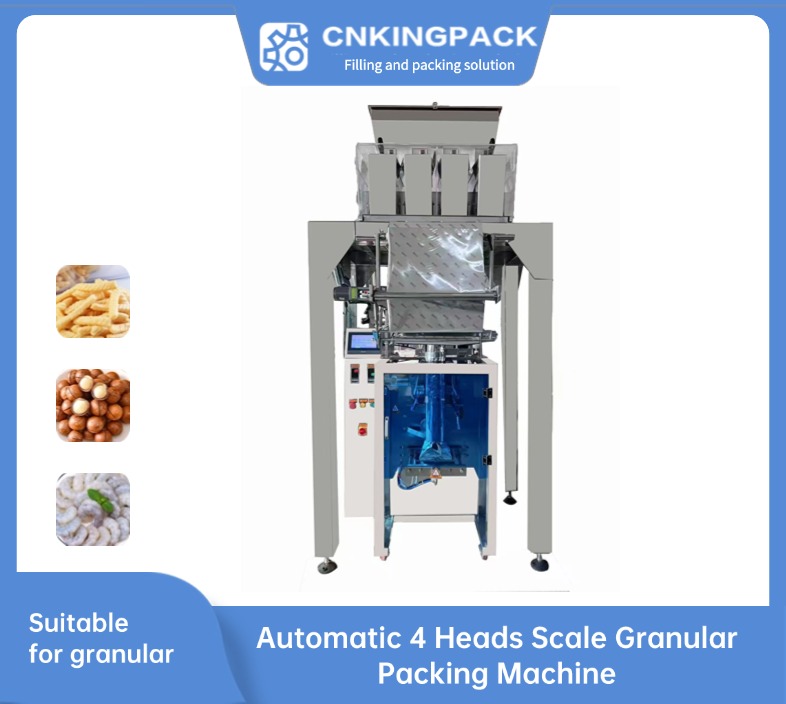

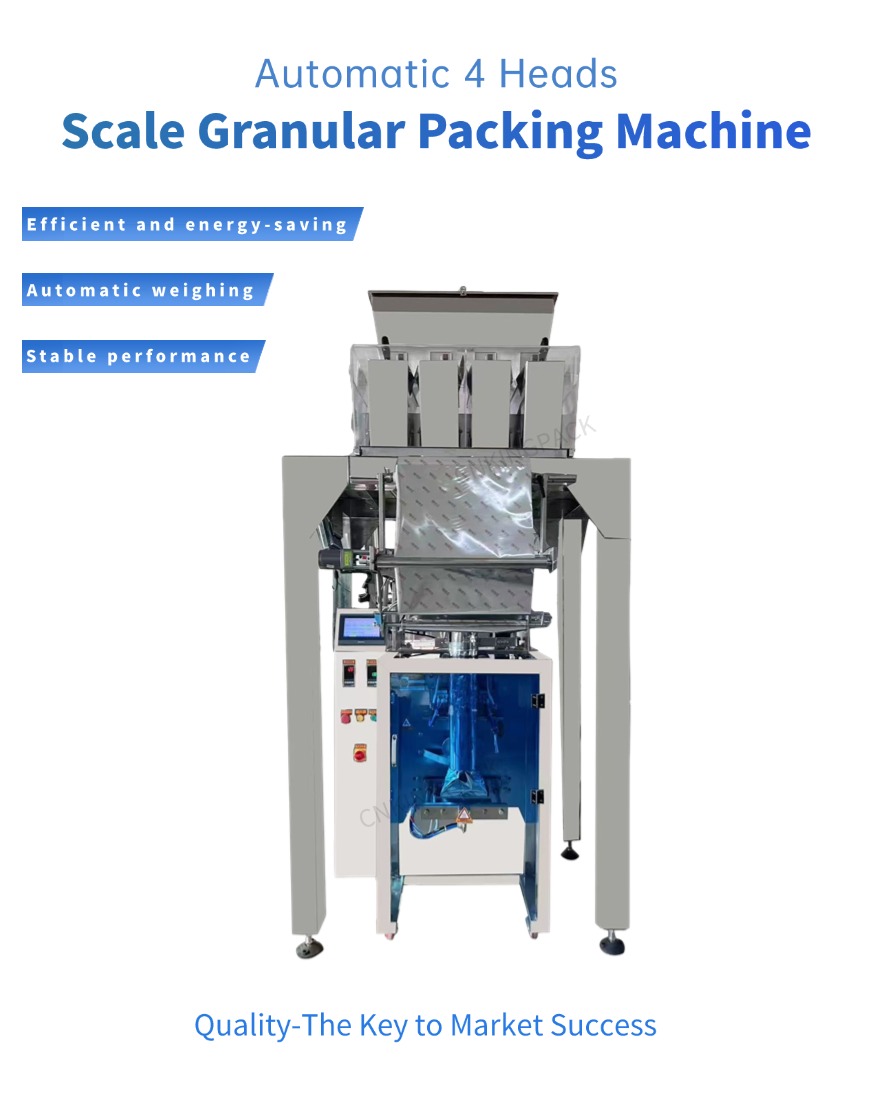

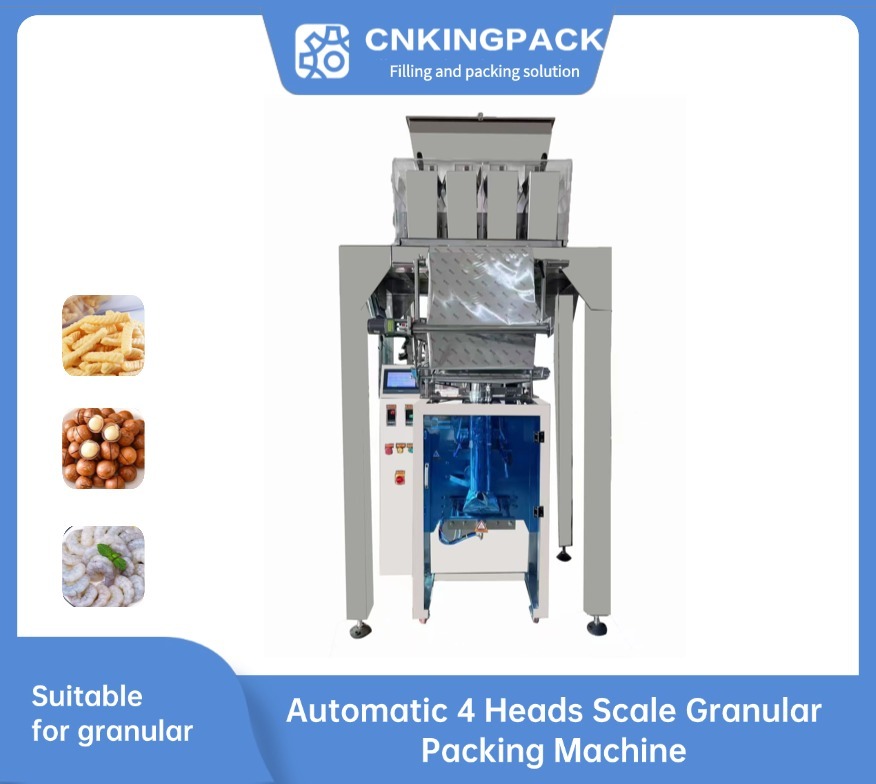

Automatic 4 Heads Scale Granular Packing Machine

This machine suit for the packing of food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread, Farfalle, biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle products.

Description

This machine suit for the packing of food, medicine and chemical such particle, short strip and solid product, for example leaven food, shrimp cracker, popcorn, small steamed bread, Farfalle, biscuit, cornmeal, white sugar, dry food, dry fruit, nut, peanut, seeds,green soya bean, pistachio nut, almond, cashew nut, desiccant and washing powder such big metering particle products.

Features

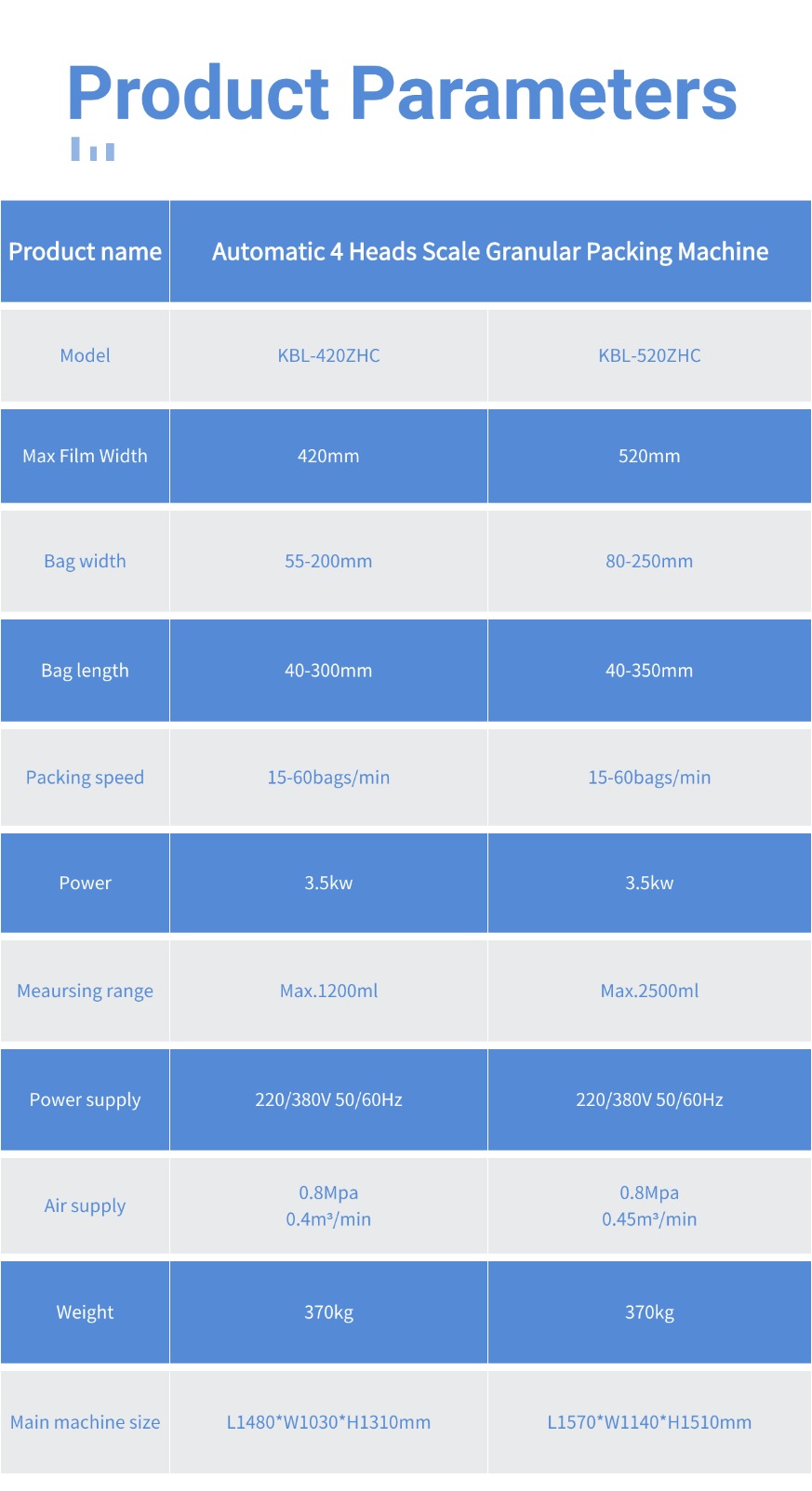

Model KBL-420ZHC KBL-520ZHC
Max Film Width 420mm 520mm
Bag width 55-200mm 80-250mm
Bag length 40-300mm 40-350mm
Packing speed 15-60bags/min 15-60bags/min
Power 3.5kw 3.5kw
Meaursing range Max.1200ml Max.2500ml
Power supply 220/380V 50/60Hz 220/380V 50/60Hz
Air supply 0.8Mpa
0.4m³/min
0.8Mpa
0.45m³/min
Weight 370kg 370kg

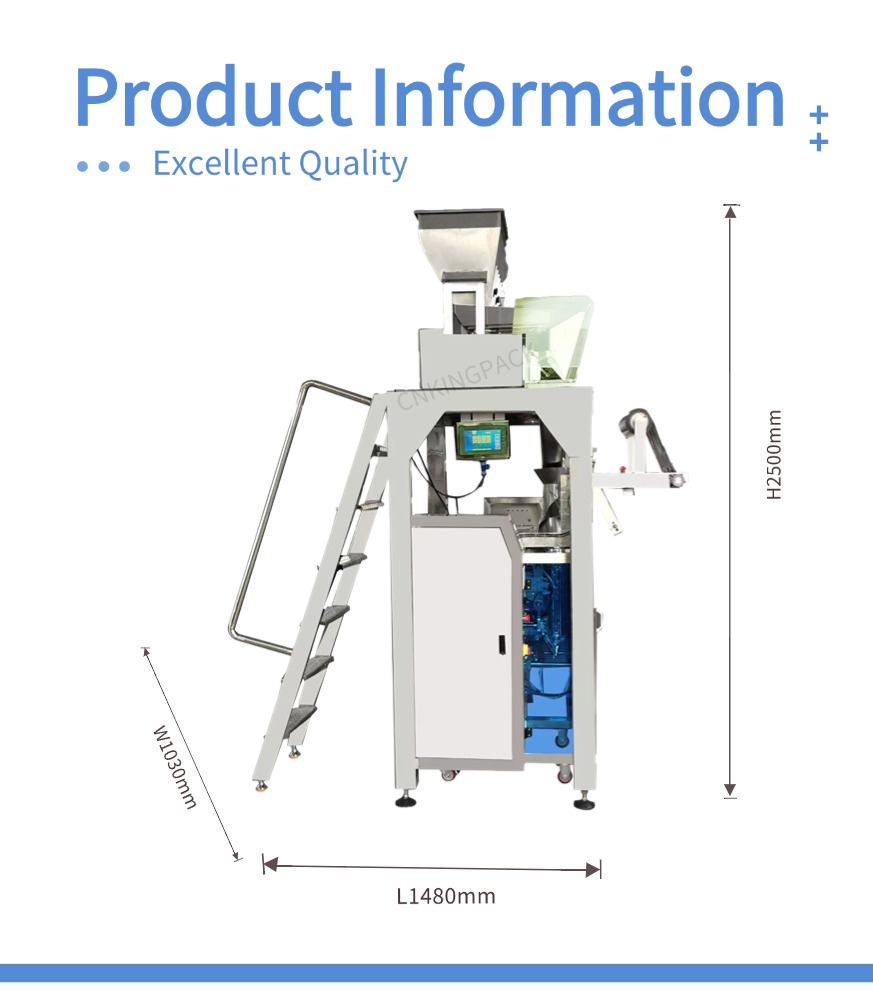

Main machine size L1480*W1030*H1310mm L1570*W1140*H1510mm

稿定设计-2

稿定设计-3

稿定设计-4

稿定设计-5

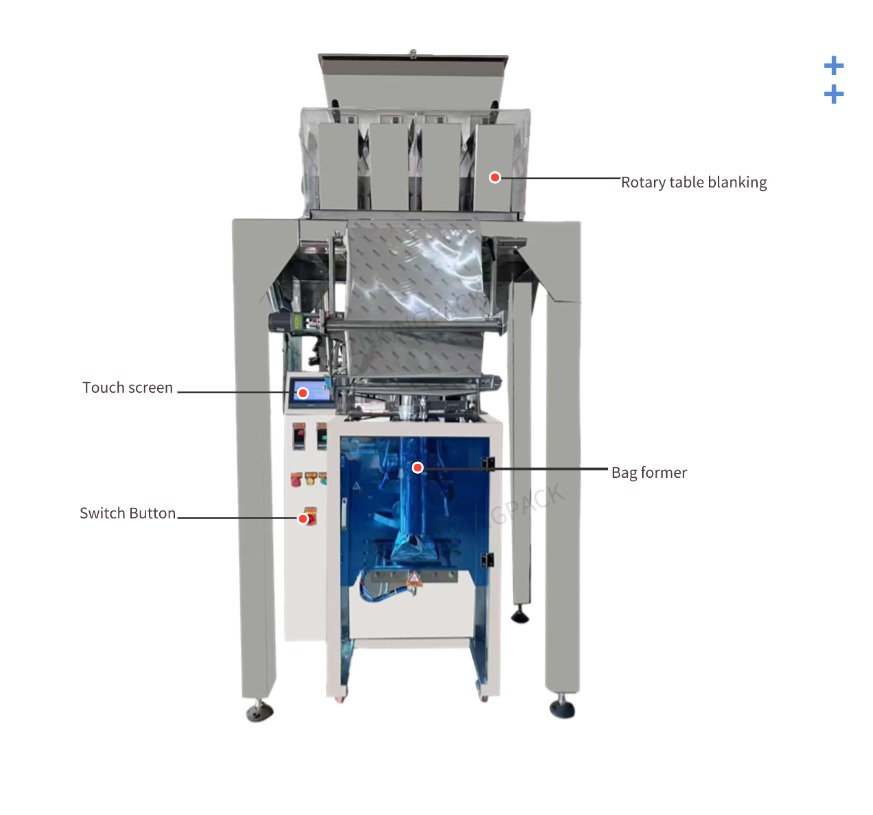

稿定设计-6

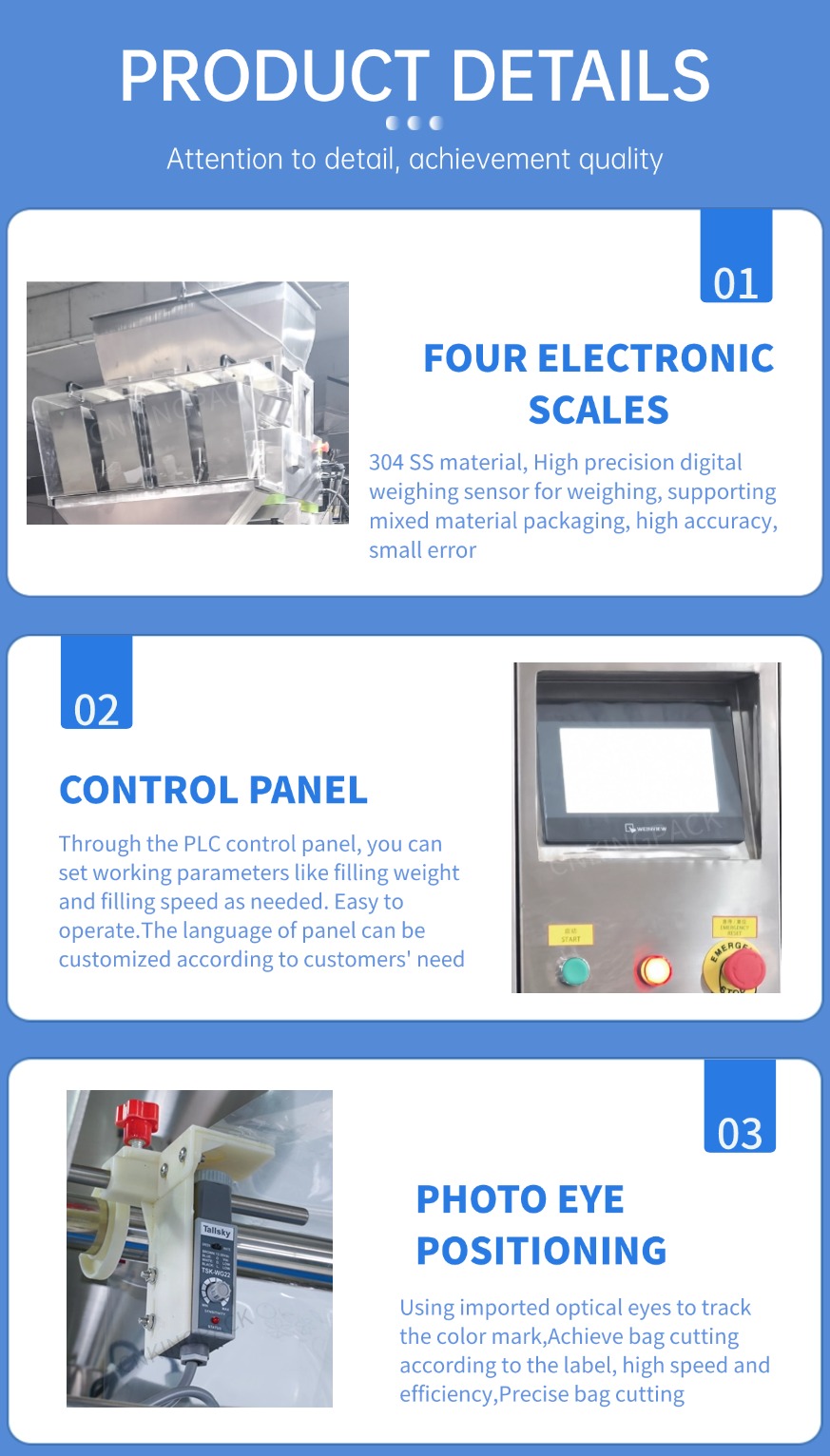

稿定设计-7

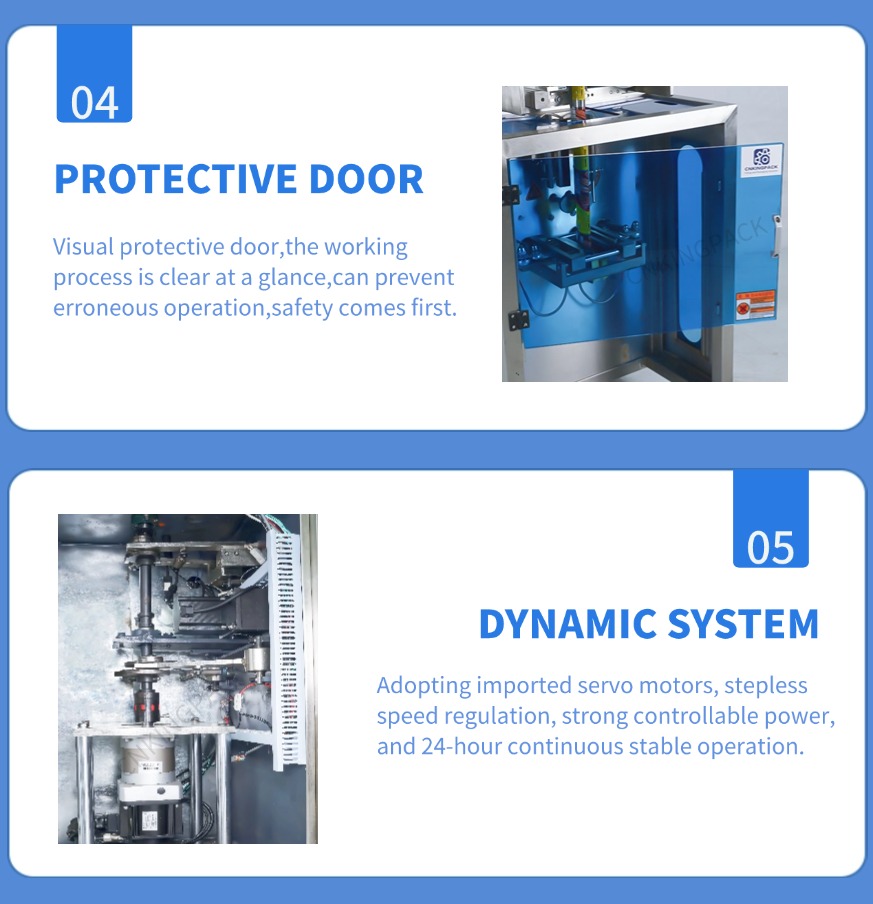

稿定设计-8

稿定设计-9

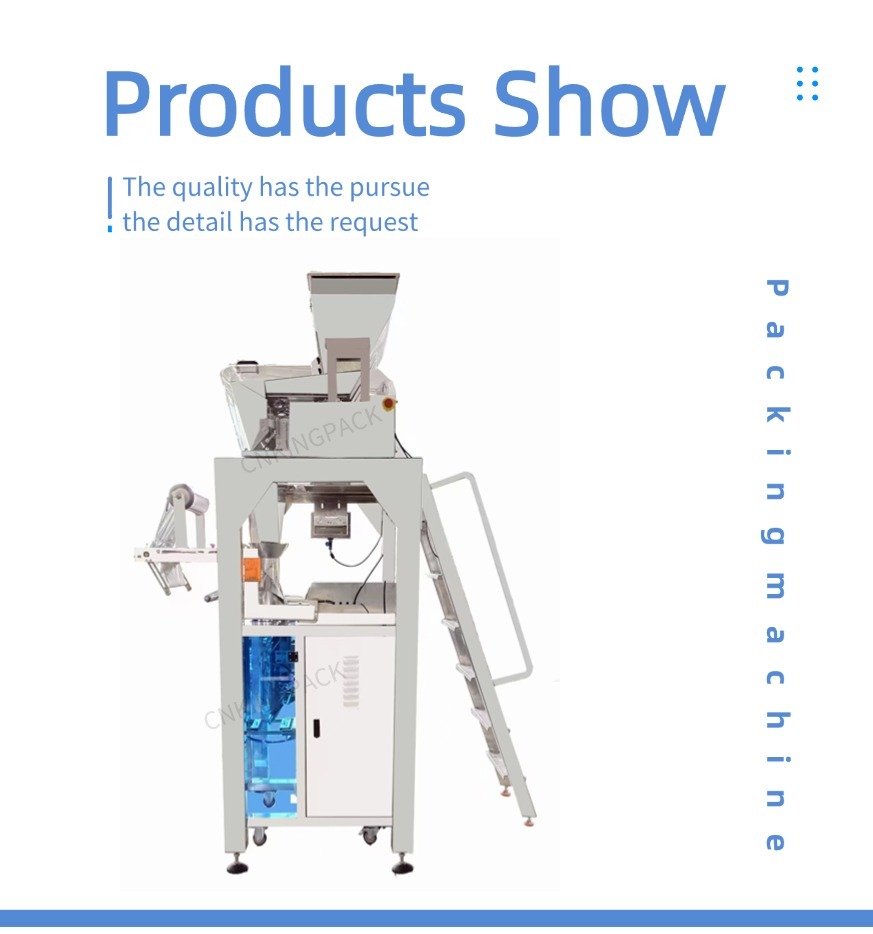

稿定设计-10

稿定设计-11

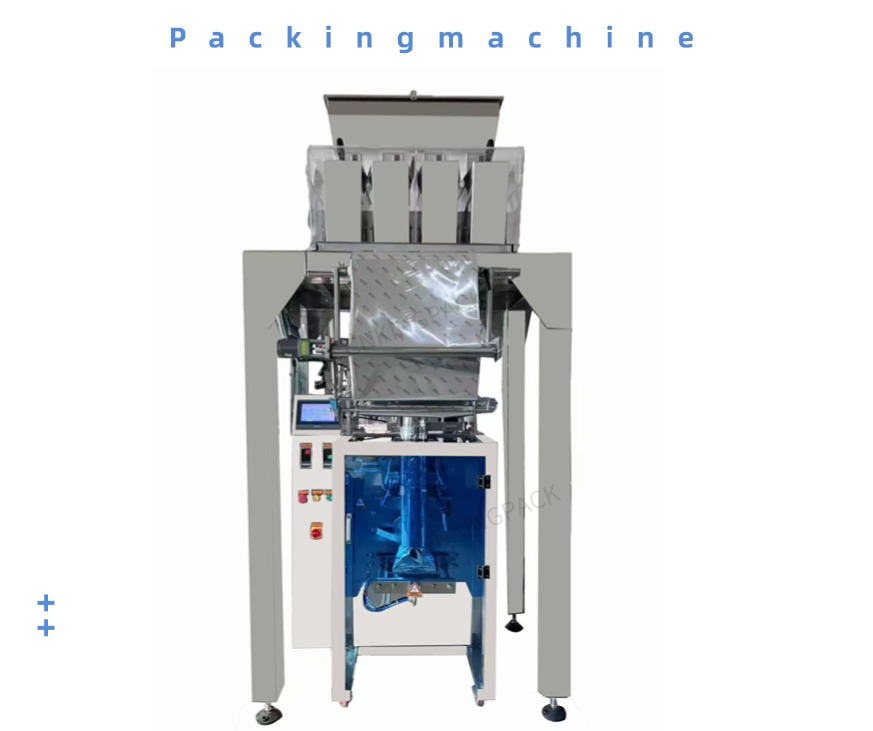

稿定设计-12
