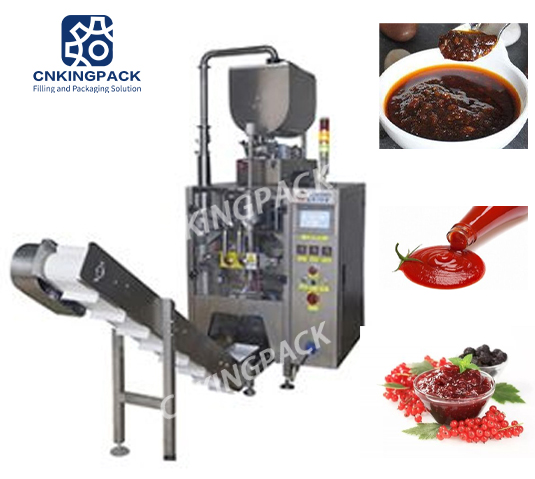

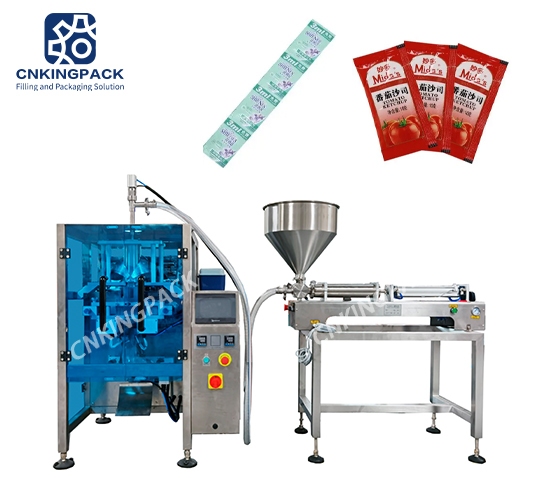

KPL-420BFY Automatic Liquid/Paste Packing Machine
This machine widely used to pack milk ,soybean milk, sauce ,vinegar ,yellow wine, all kind of drink with film.
Description
This machine widely used to pack milk ,oybean milk, sauce ,vinegar ,yellow wine， all kind of drink with film. The whole process can be accomplished automatically, such as ultraviolet sterilization bag figuration date printing quantitative filling enveloping cutting counting, and so on. The temperature of heat-sealing is controlled automatically, the production is beauty and fastness, the machine adopts stainless steel shell, and the sanitation is guaranteed.
Features
- 01Back-seal packaging, valve plug pump filling and metering
- 02Film sterilization, liquid materialsterilization
- 03The finished product bag is exquisite and reliable, hygienic and safe
- 04Assemble the photoelectric control device to ensure the integrity of the packaging bag pattern
- 05Automatically complete bag making, measuring, filling, sealing, cutting, counting,printing batch number
- 06The shell and material contact parts are made of stainless steel
Advantage
Stainless steel 304 foods grade
Good Quality
Good Price
Prompt Delivery
Applications
Suitable for food, beverage, daily necessities, chemical industry and other industries
Parameter Data
| Model | KPL-420BFY | KPL-520BFY | KPL-620BFY | KPL-720BFY |
| Film width | Max.420mm | Max.520mm | Max.620mm | Max.720mm |
| Bag width | 65-200mm | 80-250mm | 100-300mm | 130-350mm |
| Bag length | 60-300mm | 80-400mm | 80-450mm | 80-500mm |
| Meaursing range | 100~1000ml | 200~2000ml | 500~3000ml | 1000~5000ml |
| Capacity | 10-45bag/min | 10-45bag/min | 10-35bag/min | 10-30bag/min |
| Power supply | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz | 220V 50/60Hz |
| Air supply | 0.6MPA | 0.6MPA | 0.6MPA | 0.6MPA |
| Sealing type | Back sealing | Back sealing | Back sealing | Back sealing |
