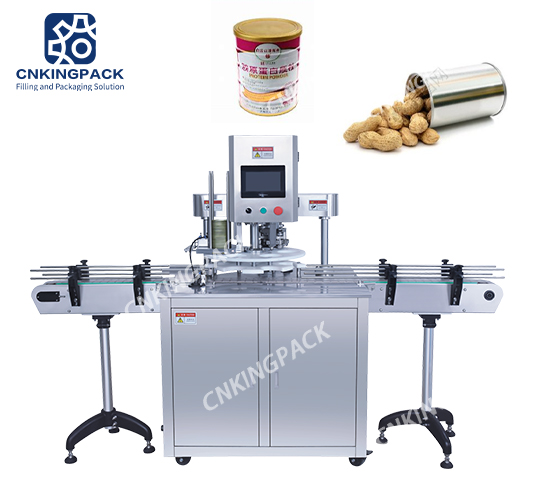

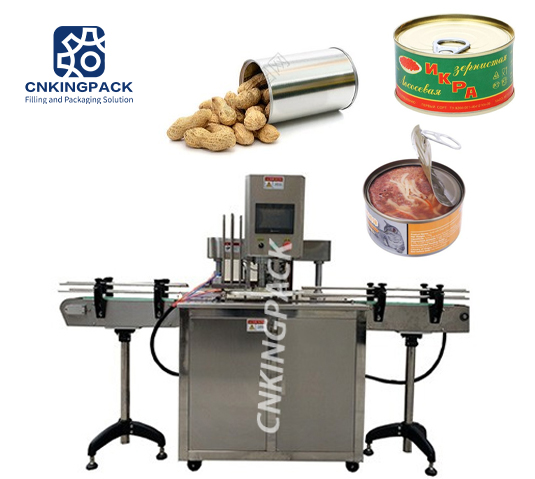

KPL-500 Automatic Metal Cans Sealing Machine

This is suitable for all kinds of tin cans, aluminum cans, plastic containers, paper, cans, and other specifications round cans sealed. Quality, reliable, lightweight and easy to operate, is the ideal equipment necessary food, beverage, pharmaceutical, chemical industry and so on.

Description

A can sealing machine is an essential piece of equipment for any business that packages products in cans. This machine works by sealing the lid of the can to the body of the can, creating an airtight seal. This ensures that the product inside the can is kept fresh and safe from contamination. This machine is often used in the food and beverage industry, as well as in the pharmaceutical and chemical industries. Can sealing machines are available in a variety of sizes and configurations, depending on the size and type of the cans being sealed.

Features

  • 01the electrical part of the motor controlled by inverter, PLC control, HMI touch screen operation;
  • 02the lid controled together with can device: When there is the can, then the lid will be allocated accordingly, no can no lid;
  • 03no lid machine stop: when there is no lid dropping, machine automatic shutdown, so make sure no can damaged;
  • 04the conveyor belt motor speed control system steplessly separated, simple structure, convenient operation and maintenance;
  • 05the cover and the main components made of 304 stainless steel, meet the demand of Food and Medicinal use.

Advantage

  • 01.High degree of automation, simple control and easy operation. It can be connected to the automatic filling machine before this machine, and can be connected to the printer.
  • 02Automatic conveying, automatic feeding end, automatic sealing, automatic output.
  • 03Can-lid joint control device, no over no sealing. When there is a can body entering, the can end(cover) will be allocated accordingly. If there is no can end, there will be sealing process, and there will be an alarm if there is overload or lack of can end(cover).
  • 04This machine is an upgraded version of our company's semi-automatic sealing machine. It adopts the principle of rotation of the can body without turning hob, and the processing precision is very high, and the sealing quality is better than domestic similar products.
  • 05High efficiency. The production efficiency of the machine is 2-3 times that of the semi-automatic table sealing machine, which greatly improves the production efficiency and reduces the labor cost;
  • 06Touch Screen PLC control system, the main engine and the conveyor belt motor are with stepless speed regulation, easy to operate and maintain.

Applications

This is suitable for all kinds of tin cans, aluminum cans, plastic containers, paper, cans, and other specifications round cans sealed. Quality, reliable, lightweight and easy to operate, is the ideal equipment necessary food, beverage, pharmaceutical, chemical industry and so on.

Parameter Data

Model

KPL-500

Voltage

220v/380v 50/60hz

Power

750w

Capacity

30-50cans/h

Cans height

50-200mm

Cans diameter

30-100mm

Dimension

3000*900*1800mm

Weight

300kg
