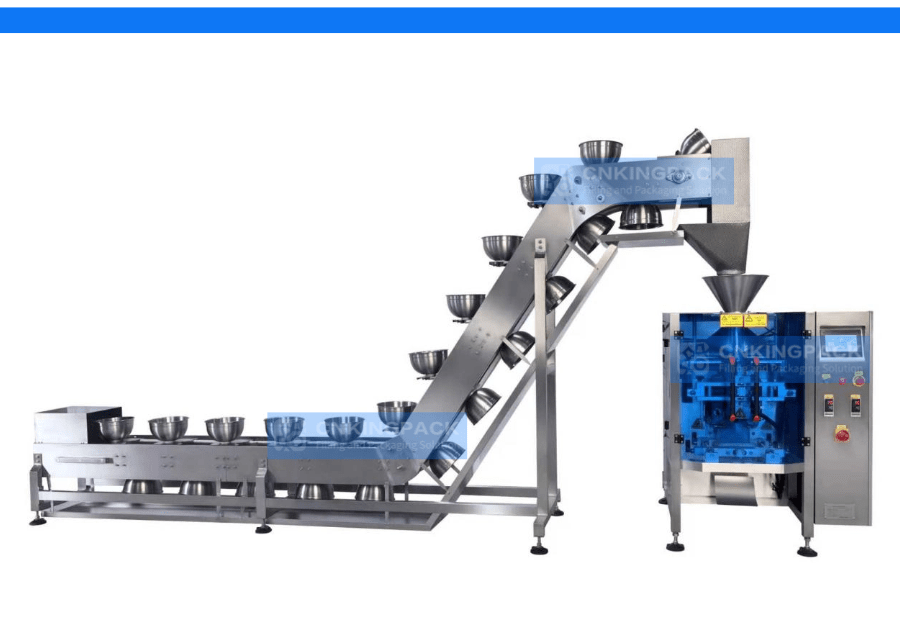

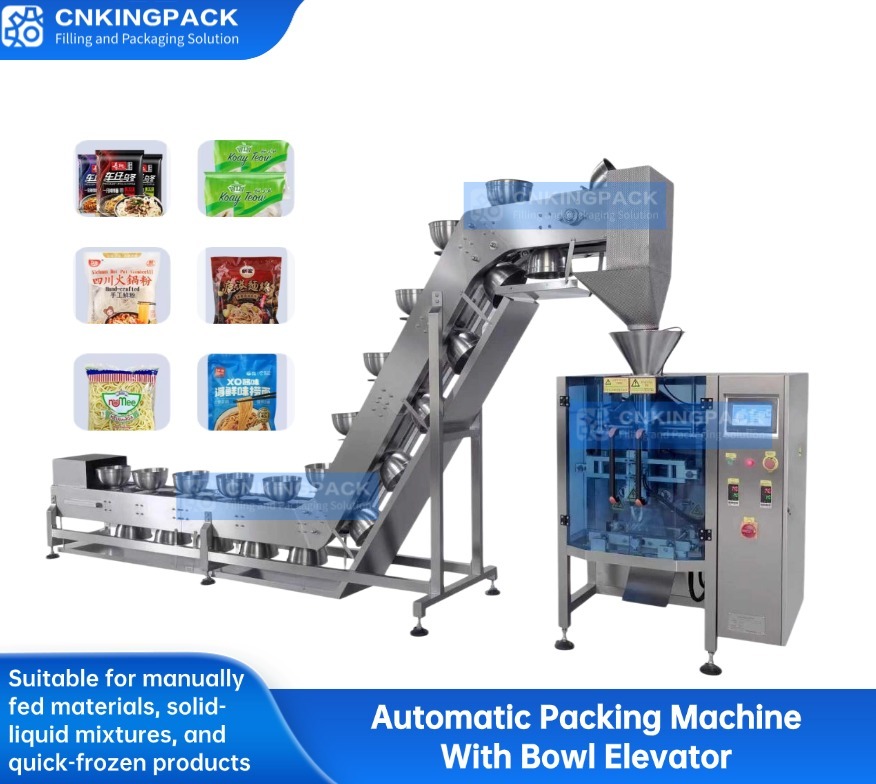

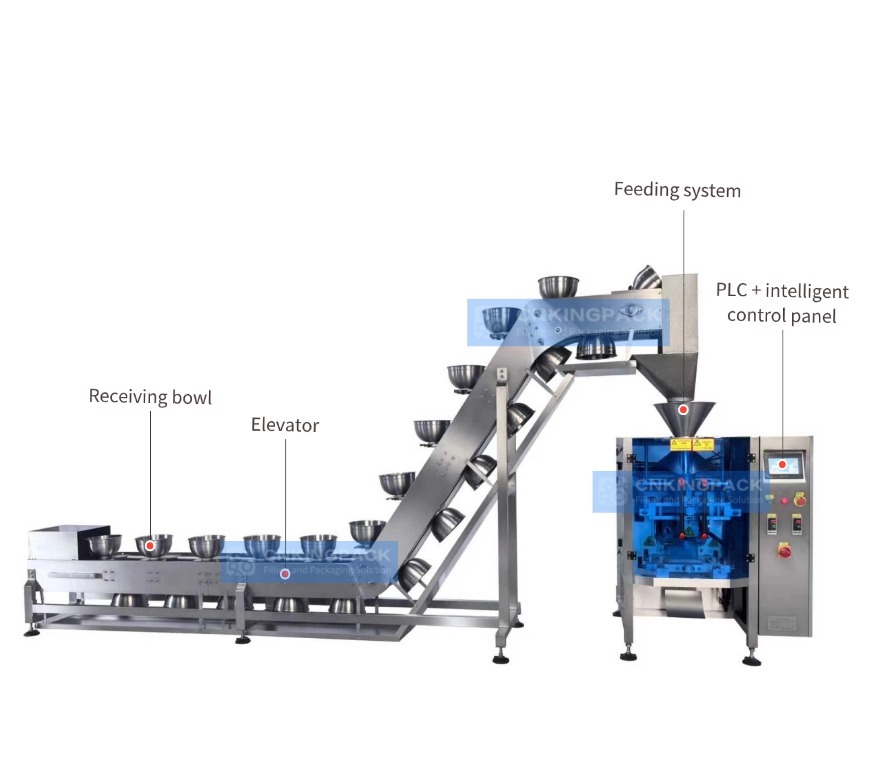

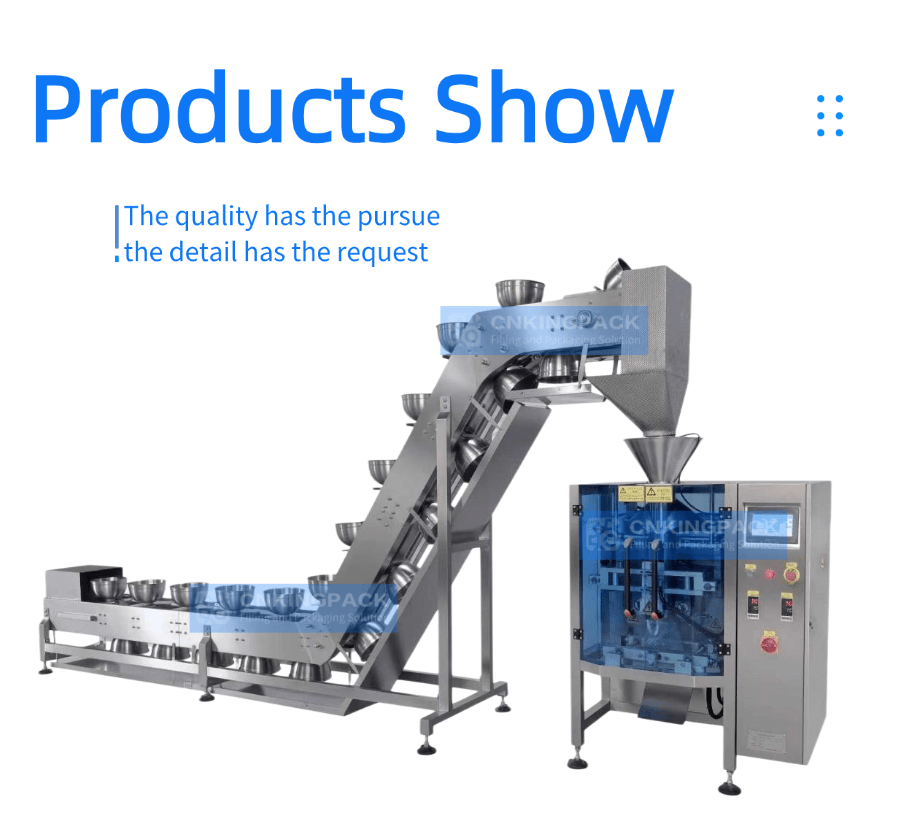

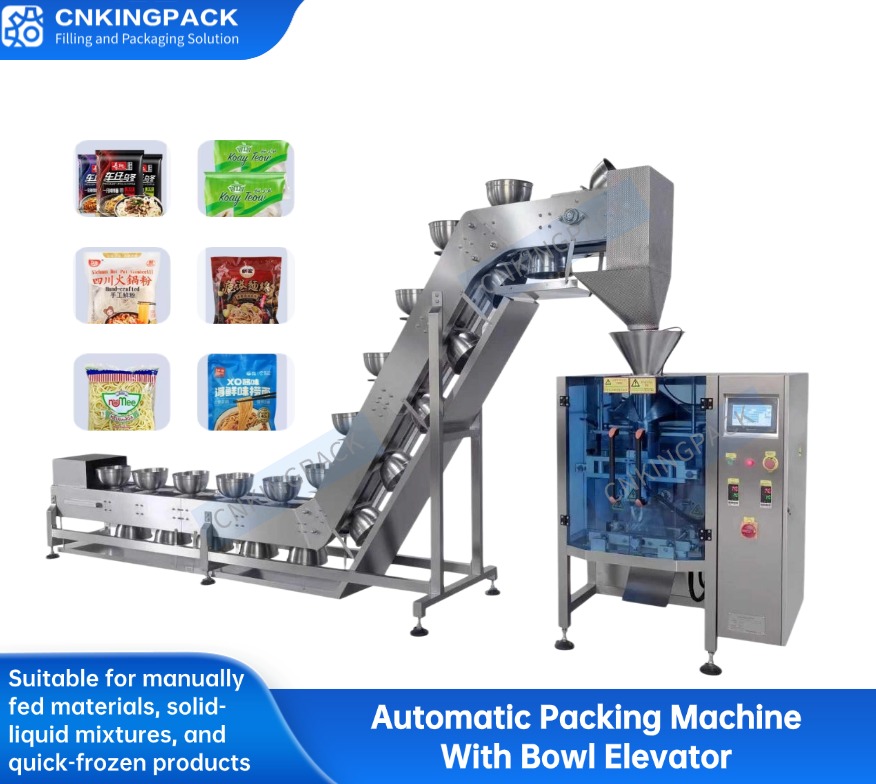

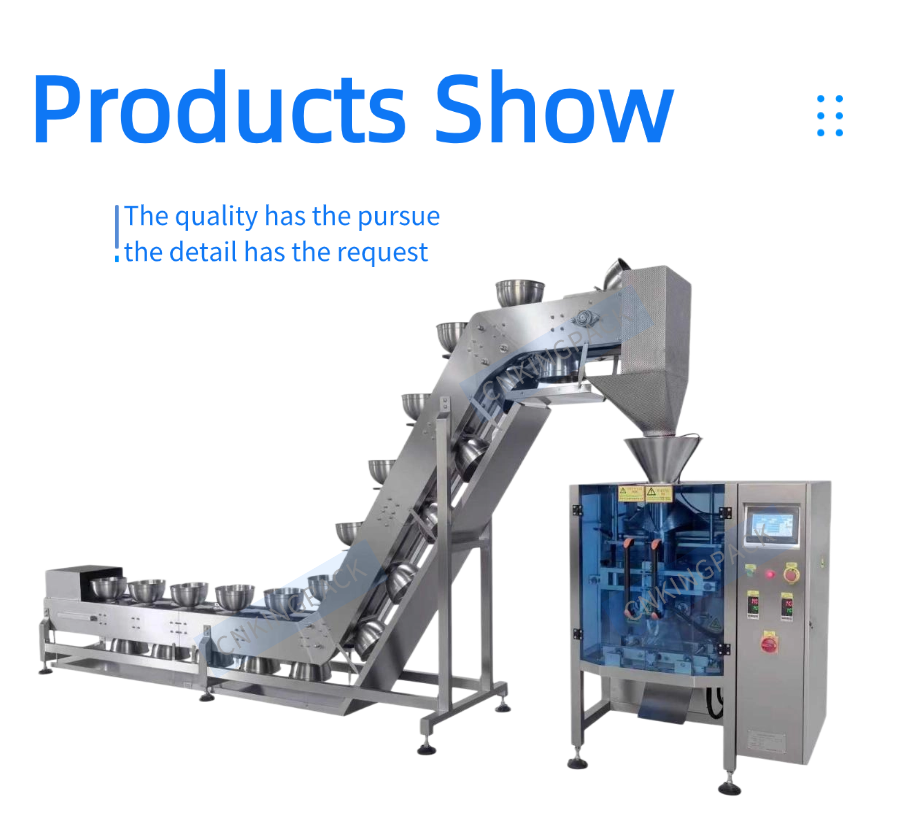

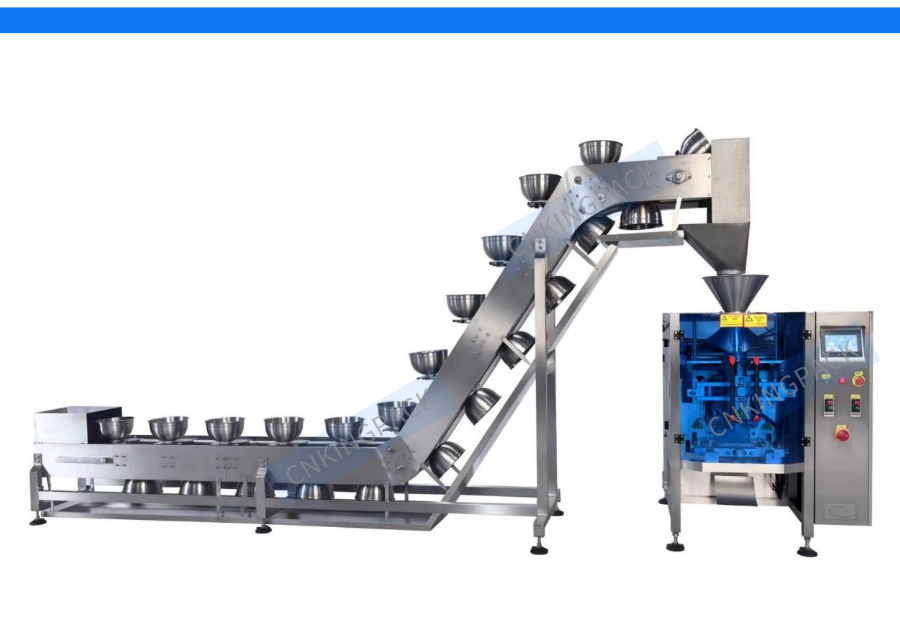

Automatic Packing Machine With Bowl Elevator
It is suitable for manually fed materials, solid-liquid mixtures, and quick-frozen products, such as wet noodles, pasta, and wet rice noodles.
Description
It is suitable for manually fed materials, solid-liquid mixtures, and quick-frozen products, such as wet noodles, pasta, and wet rice noodles.
Features

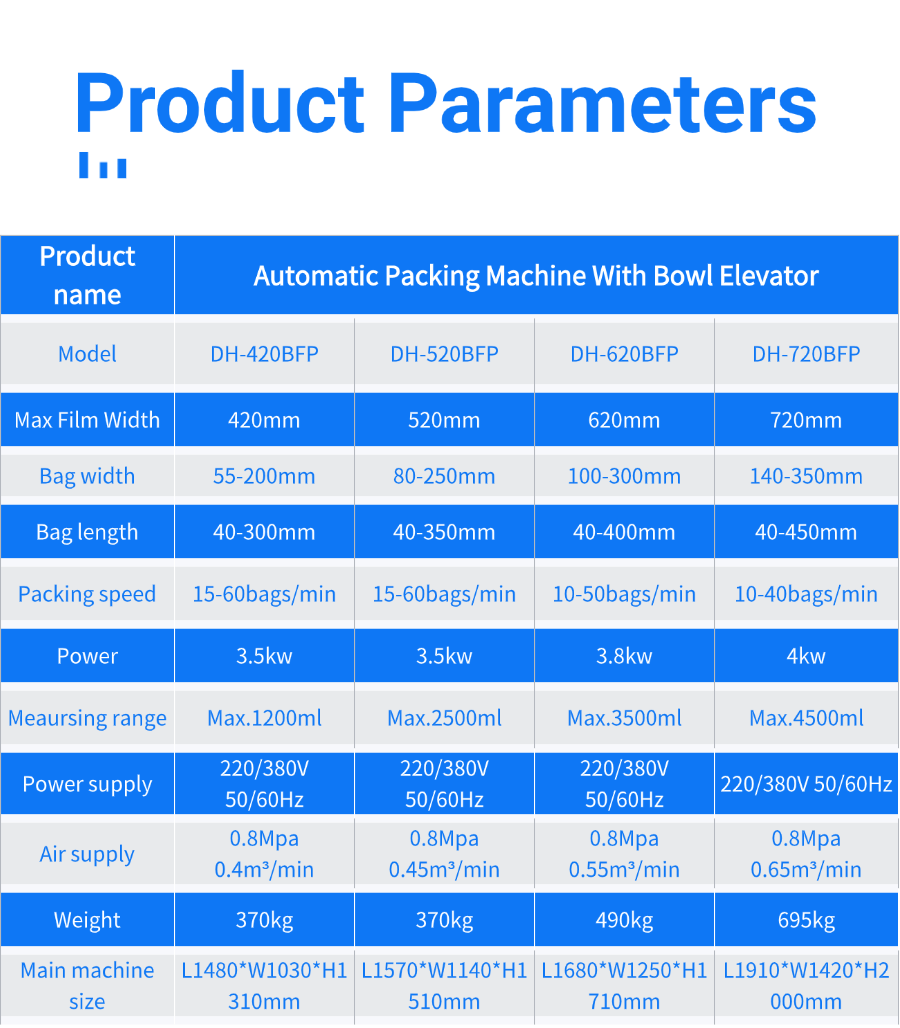

| Product name | Automatic Packing Machine With Bowl Elevator | |||
| Model | DH-420BFP | DH-520BFP | DH-620BFP | DH-720BFP |
| Max Film Width | 420mm | 520mm | 620mm | 720mm |
| Bag width | 55-200mm | 80-250mm | 100-300mm | 140-350mm |
| Bag length | 40-300mm | 40-350mm | 40-400mm | 40-450mm |
| Packing speed | 15-60bags/min | 15-60bags/min | 10-50bags/min | 10-40bags/min |
| Power | 3.5kw | 3.5kw | 3.8kw | 4kw |
| Meaursing range | Max.1200ml | Max.2500ml | Max.3500ml | Max.4500ml |
| Power supply | 220/380V 50/60Hz | 220/380V 50/60Hz | 220/380V 50/60Hz | 220/380V 50/60Hz |
| Air supply | 0.8Mpa 0.4m³/min | 0.8Mpa 0.45m³/min | 0.8Mpa 0.55m³/min | 0.8Mpa 0.65m³/min |
| Weight | 370kg | 370kg | 490kg | 695kg |

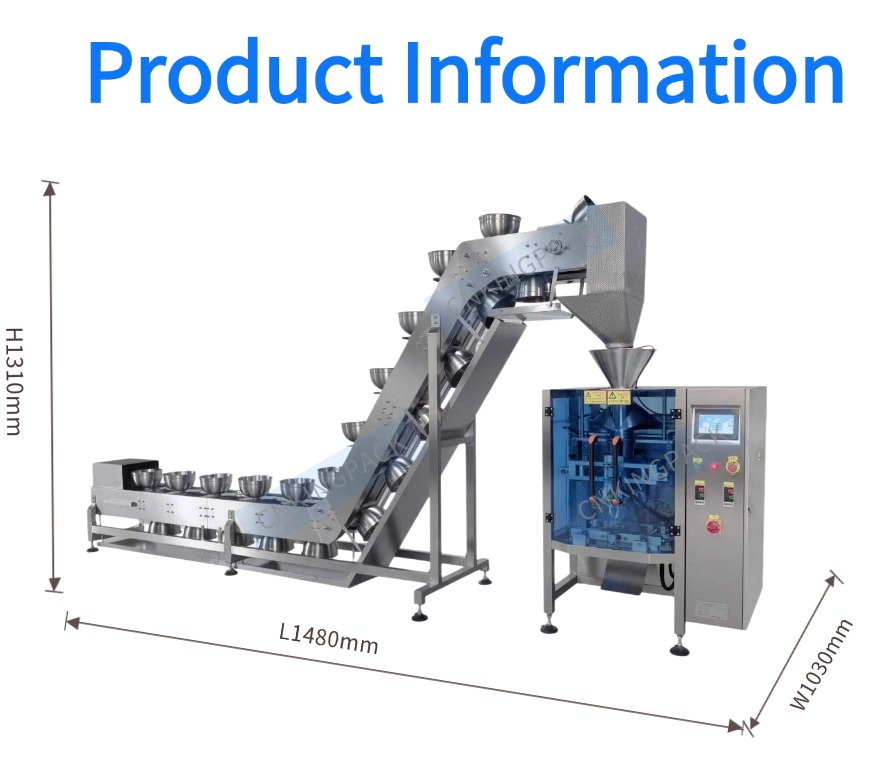

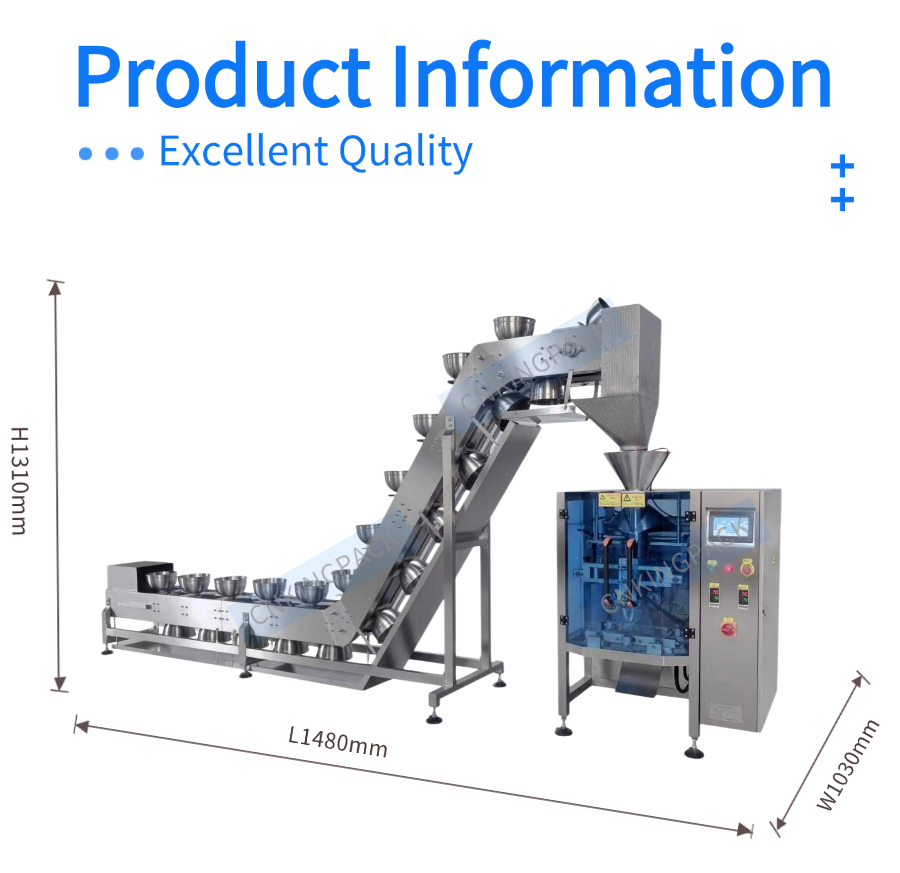

| Main machine size | L1480*W1030*H1310mm | L1570*W1140*H1510mm | L1680*W1250*H1710mm | L1910*W1420*H2000mm |
