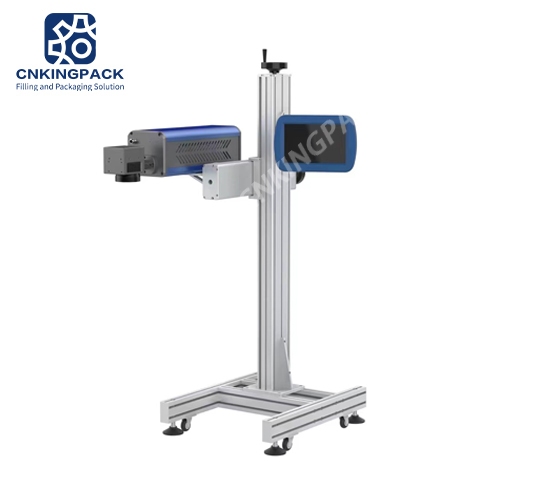

CO2 Laser Mark Printer Machine
CO2 Laser used for PET, acrylic, glass, leather, plastic, cloth, carton, rubber, etc., such as mineral water bottles, edible oil, red wine bottles, food packaging bags, etc.
Description
CO2 laser is a kind of gas laser, which produces a wavelength of 10.6 μm, which belongs to the mid-infrared frequency band. CO2 laser has relatively large power and relatively high electro-optical conversion efficiency. Carbon dioxide laser uses CO2 gas as the working substance. Fill Co2 and other auxiliary gases into the discharge tube, and when the high-voltage tube is applied to the electrode to generate glow light, the gas molecules can release laser light. After amplifying the released laser energy, laser processing can be performed.
Features
Compared with ink jet printer, laser marking machine has functions of no consumption, no pollution, no noise, energy saving and environmental protection.
Advantage
- 01Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect.
- 02Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours.
- 03Environmentally friendly non-toxic and no noise pollution.
Applications
Application fields: pharmaceutical packaging, printing plate making, food, beverage packaging, fabric cutting, craft gifts, electronic components, rubber products, leather clothing accessories, shell nameplates, glass, wood products, bamboo products, etc.
Parameter Data
|
Marking material |
PET, acrylic, glass, leather, plastic, cloth, carton, rubber, etc., such as mineral water bottles, edible oil, red wine bottles, food packaging bags, etc. |
|
|
Machine Features |
Machine material |
All aluminum structure |
|
|
Laser output power |
≥40W |
|
|
Laser wavelength |
10.6um |
|
|
Marking speed |
≤12000mm/s |
|
|
Control board |
Industrial grade highly integrated all-in-one motherboard |
|
|
Operating system |
Linux or Windows |
|
|
Cooling system |
Normal temperature air cooling (no compressed air required) |
|
|
Marking system |
For laser printing |
|
|
Operating platform |
10 inch touch screen |
|
|
Interface |
SD card interface/USB2.0 interface/communication interface |
|
|
Data protection |
Ensure user data is not lost in the event of an unexpected power outage. |
|
|
Camera rotation |
The scanning head can be rotated at any angle 360 degrees |
|
|
Voltage |
AC220V,50-60Hz |
|
|
Total power |
700w |
|
|
Degree of protection |
IP54 |
|
|
Weight |
70kg |
|
|
Dimensions |
650mm*520mm*2000mm |
|
|
Pollution level |
Marking itself does not generate any chemicals. |
|
Environmental resistance |
Storage environment temperature |
-10℃-45℃（no freezing） |
|
|
Working temperature |
|
|
|
Storage environment humidity |
10%-85%（non-condensing） |
|
|
working environment humidity |
|
|
Lens parameters |
Marking area |
≤500*500mm（standard 110*110mm) |
|
|
Marking type |
dot matrix, vector |
|
|
Minimum Line Width |
0.03mm |
|
|
Repeatability |
0.01mm |
|
|
Targeting style |
Red light focus, red light auxiliary preview |
|
|
Number of marking character lines |
Edit freely within the marking range |
|
|
Line speed |
0-280m/min（Depending on the product material and marking content） |
|
Character type |
Support font type |
Single-line font/double-line font/bit matrix font |
|
|
graphics file format |
PLT format vector file input/output |
|
|
file format |
BMP/DXF/JPEG/PLT |
|
|
graphic elements |
Point, Line, Arc Text, Rectangle, Circle |
|
|
variable text |
Serial number, time, date, fraction, shift |
|
|
barcode |
Code39、Code93、Code128、EAN-13,and so on. |
|
|
QR code |
QRCode、Data Matrix,and so on |
|
online editing |
Support online editing of marking information without stopping |
|
|
Software customization |
The software can be customized and developed according to various control requirements of the user's production line |
|
|
product testing |
Product detection input |
NPN/PNP/24V Detector |
|
|
Product speed detection |
NPN/PNP/24V/5V/RS422 Synchronizer or sync signal |
|
communication interconnection |
USB |
Support USB file import/export, system backup |
|
|
PLC communication input |
Interlock input signal, marking start/stop control signal, fault clearing signal |
|
|
PLC communication output |
Laser ready signal, printing signal, fault output signal, |
|
Technical Information |
Provide equipment simple operation manual, detailed software instructions (CD-ROM), relevant qualification certificates |
|
