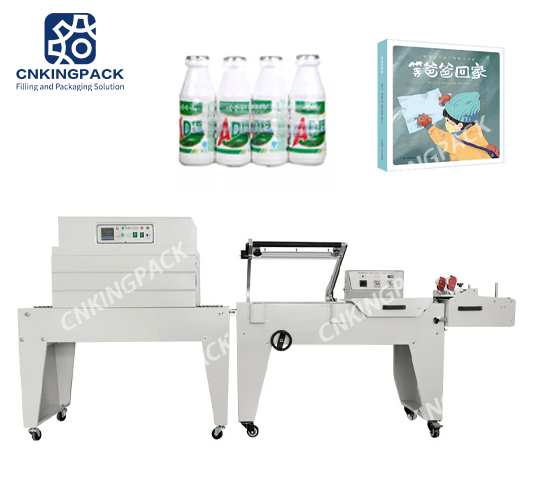

DFQA450 Semi-Auto L Sealer & DSA4525 Shrink Tunnel
It is suitable for packing boxes, toys, electronics, and so on.
Description
DFQA450 semi-auto L-type sealer and BS-A450 shrink tunnel work together to finish seal-cut and shrink packing of film in one operation.
The electric magnet absorbs the cutting frame automatically when the frame is pressed down.
Then the object is automatically transmitted into a shrink tunnel through the conveyor when the film is cut.
Therefore, it has high efficiency.
It is suitable for packing boxes, toys, electronics, and so on.
Features
Advantage
1. Machine adopts stick-proof heating wire to cut and seal film. No smoking of film.
2. Time of seal-cut and conveyor is adjustable according to the actual situation.
3. Down heating adjustment.
Applications
It is suitable for packing boxes, toys, electronics, and so on.
Parameter Data
|
Model |
DFQA450 |
Model |
DSA4525 |
|
Commodity |
L-type sealer |
Commodity |
thermal shrink tunnel |
|
Power source |
220V 50-60HZ |
Power source |
380V/50-60HZ |
|
Heater power |
1KW |
Heater Power |
10.3kW |
|
Conveyor speed |
0 -15m /min |
Conveyor speed |
0 -10m /min |
|
Max sealing size(LxW) |
550x450mm |
Tunnel size(LxWxH) |
1000x450x 250mm |
|
Max conveyor loading |
25kg |
Max conveyor loading |
8kg |
|
Machine size(LxWxH) |
1720x740x1050mm |
Machine weight |
100kg |
|
Machine weight |
116kg |
Machine size |
1260x670x 1290mm |
|
Cutting film |
POF,PVC,PP |
Shrink film |
POF,PVC,PP |
