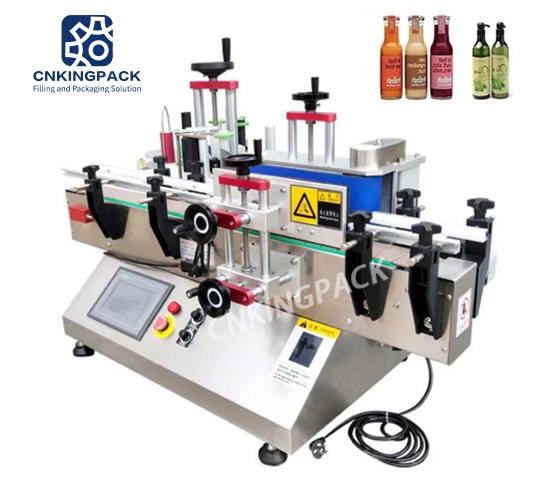

KP-38 Desktop Round Bottle Automatic Labeling Machine

Automatic round bottle labeling machine applicable to circumferential labeling of various cylindrical products. Such as cosmetic bottles, shampoo bottles, shower gel bottles,medicine bottles, jam bottles, essential oil bottles, sauce bottles, wine bottles,mineral water bottles, beverage bottles, glue bottles,Metal can, milk powder canetc.The round bottle labeling machine can be labeled single and double,can add bottle unscrambler.

Description

Automatic round bottle labeling machine applicable to circumferential labeling of various cylindrical products. Such as cosmetic bottles, shampoo bottles, shower gel bottles,medicine bottles, jam bottles, essential oil bottles, sauce bottles, wine bottles,mineral water bottles, beverage bottles, glue bottles,Metal can, milk powder canetc.The round bottle labeling machine can be labeled single and double,can add bottle unscrambler.

Features

  • 011.Bottle labelers enable the user to label all kinds of cylindrical objects.
  • 02High accuracy and high speed, dispensing & labeling automatically.
  • 03The complete operation is PLC control.
  • 04Touch screen operation.
  • 05Label head stepper motor.
  • 06Single label sticking.

Advantage

  • 01Stainless steel body, beautiful appearance.It's small and takes up little space.
  • 02Automatic photoelectric tracking.It has the functions of no label, no label automatic calibration and label automatic
    detection.Avoid wasting labels and missing stickers.
  • 03 Automatic bottling mechanism.Improve the stability, effectively eliminate the bottle error caused by the bottle parting
    unsmooth.
  • 04 Adopt well-known imported components.High quality materials, fine workmanship.
  • 05 Batch operation, simple operation and easy maintenance.Reduce labor intensity and improve work efficiency.
  • 06 Touch screen control, with automatic stop function.

Applications

Automatic stop function; Production number setting prompt; Save parameter Settings; Save electricity and other advantages.304 Stainless steel, in line with GMP production requirements. In the operation interface, it has teaching functions, and the operation of parameter modification and function switching is very simple. High stability, good operation performance and good labeling effect.

Parameter Data

Model

KP-40

Accuracy

±1mm

Speed

50-120pcs/min

Label Height

15-150mm

Label Length

25-300mm

Bottle height

 25-350mm

Accruracy

± 1mm (according to the bottle)

Label Roll

Inner diameter 76mm,  Outer diameter 350mm

Power

AC110V/220V 50/60HZ   1000W

Dimension

1270X1000X780mm
