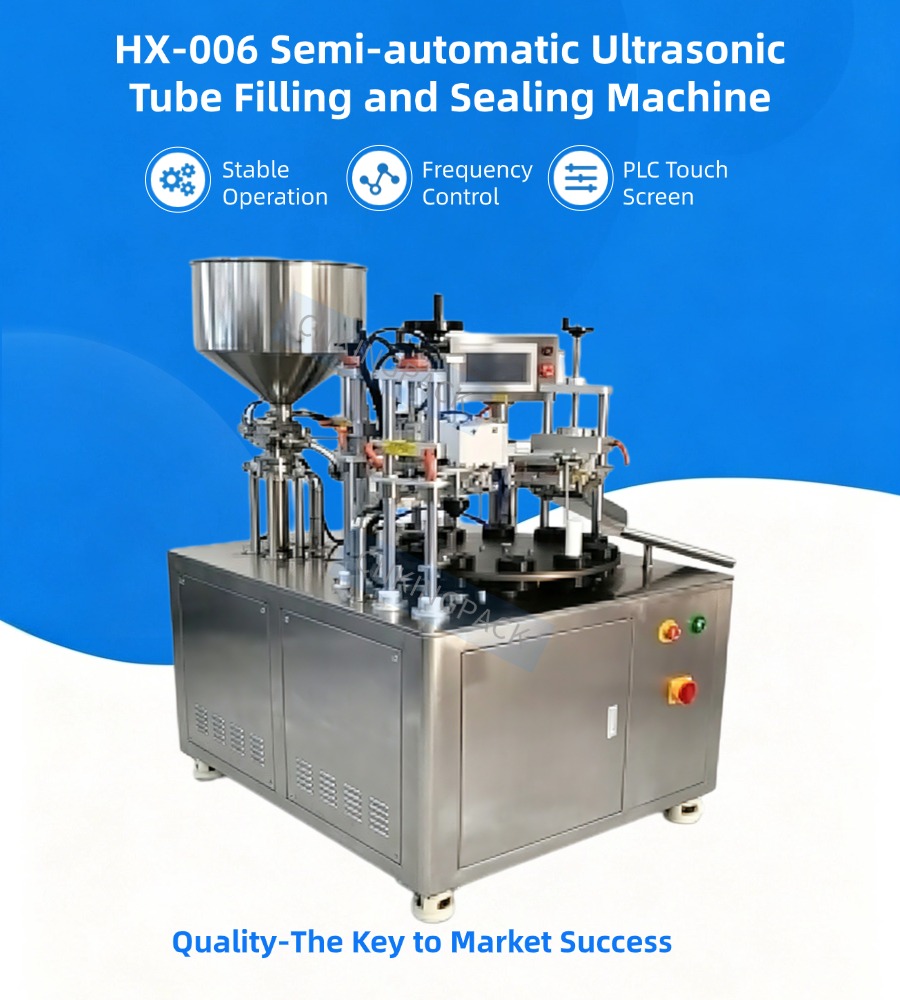

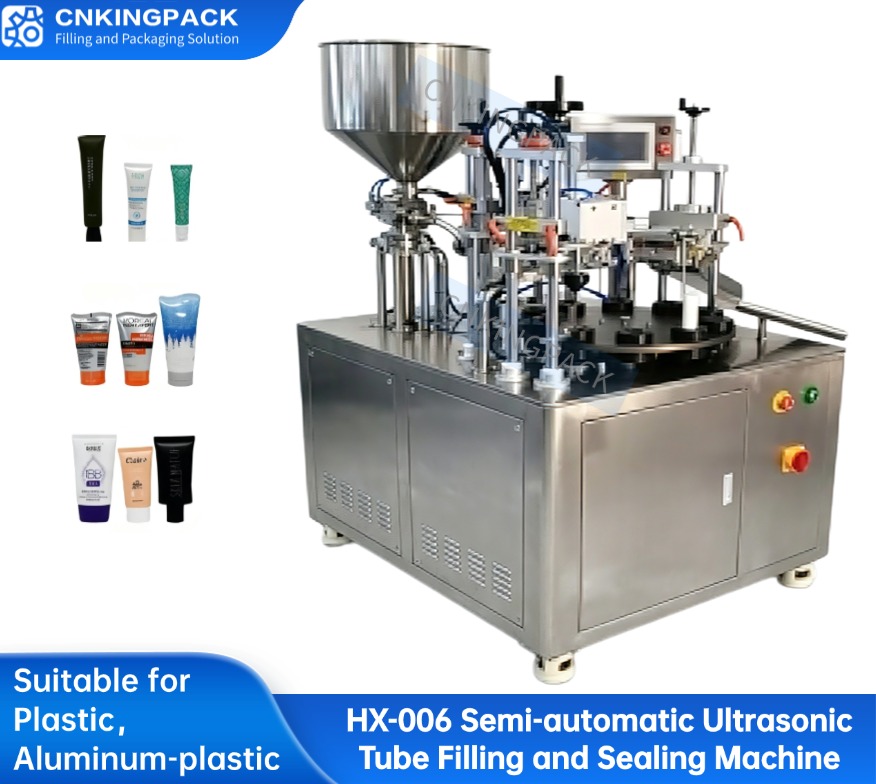

HX-006 Semi-automatic Ultrasonic Tube Filling and Sealing Machine

*This machine uses ultrasonic calculation for sealing, and the sealing effect is stable and long-lasting; the sealing area has clear lines and does not deform;

*Independently developed digital automated ultrasonic automatic frequency tracking electric box, which does not require manual frequency adjustment, and adds automatic power compensation function, which will not cause the machine power to decrease due to long use time. The power can be automatically adjusted according to the material and size of the hose, with stable processing, extremely low failure rate, and longer service life than ordinary electric boxes.

Description

*This machine uses ultrasonic calculation for sealing, and the sealing effect is stable and long-lasting; the sealing area has clear lines and does not deform;

*Independently developed digital automated ultrasonic automatic frequency tracking electric box, which does not require manual frequency adjustment, and adds automatic power compensation function, which will not cause the machine power to decrease due to long use time. The power can be automatically adjusted according to the material and size of the hose, with stable processing, extremely low failure rate, and longer service life than ordinary electric boxes.

Features

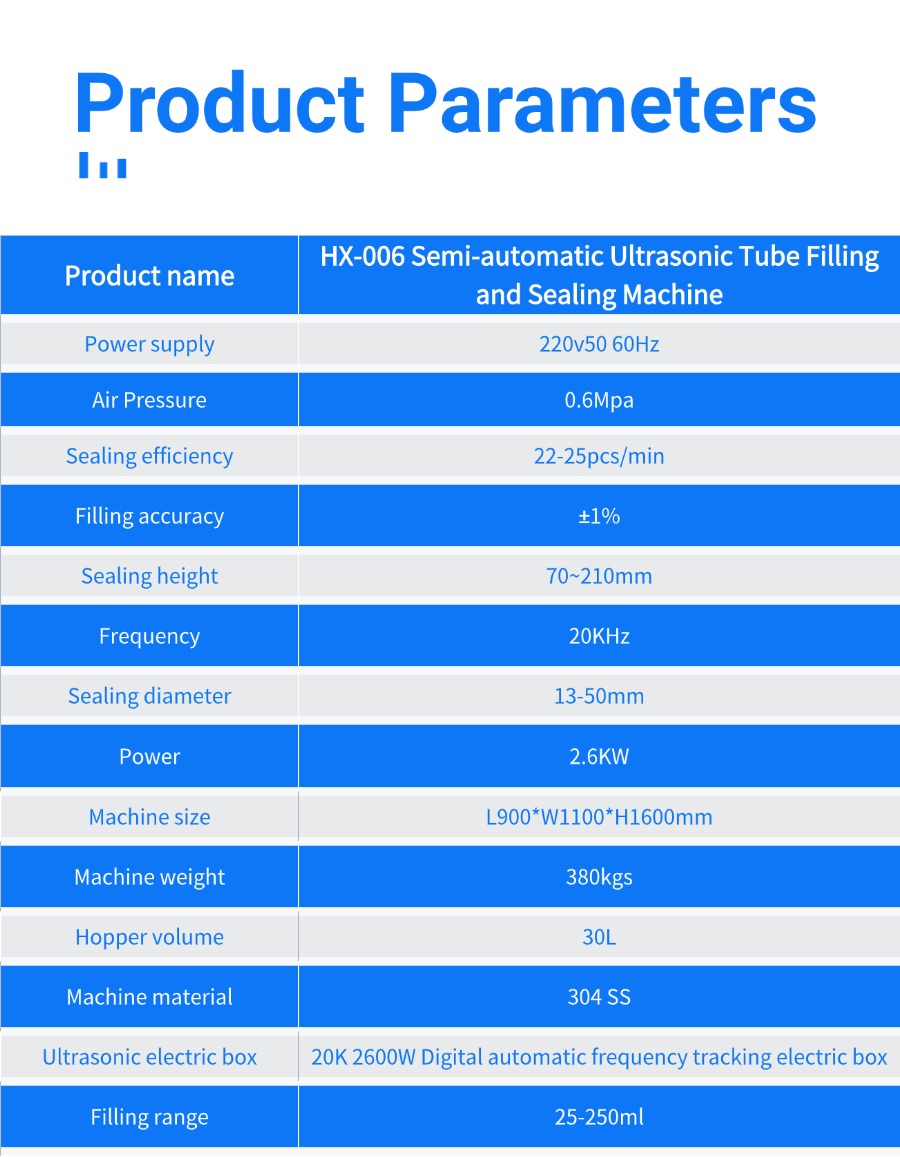

Product name HX-006 Semi-automatic Ultrasonic Tube Filling and Sealing Machine
Power supply 220v 50/60Hz
Air Pressure 0.6Mpa
Sealing efficiency 22-25pcs/min
Filling accuracy ±1%
Sealing height 70~210mm
Frequency 20KHz
Sealing diameter 13-50mm
Power 2.6KW
Machine size L900*W1100*H1600mm
Machine weight 380kgs
Hopper volume 30L
Machine material 304 SS
Ultrasonic electric box 20K 2600W Digital automatic frequency tracking electric box
Filling range 25-250ml
