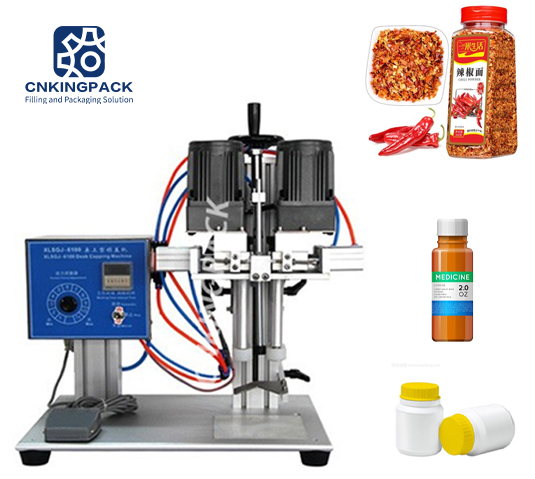

XLSGJ-6100 Semi Automatic Spray Pump Cap Capping Machine

For a variety of cosmetic, pharmaceutical, chemical industry, nozzle, pump head, spray pumps, hand gun caps lock button cover machinery.Higher intensity for a variety of bottle caps capping work.

Description

Electrical control movement, stability; a positioning device, capping standard, easy to operate; lock cover wide range of
different shapes sizes lockable caps; solve the nozzle, pump head, spray pumps, hand gun spin button cover difficult problem; capping speed adjustable.Can be adjusted depending on the tightness of the cap.For a variety of cosmetic, pharmaceutical, chemical industry, nozzle, pump head, spray pumps, hand gun caps lock button cover machinery.Higher intensity for a variety of bottle caps capping work.

Features

  • 01The electrical control movement;
  • 02Positioning device, easy to operate
  • 03Locking cover wide range of lockable caps of different switch sizes
  • 04Locking cover, speed adjustable, can adjust the tightness of different caps

Advantage

  • 01Applicable to a wide range of caps can be, with a cap-oriented structure, to ensure the consistency of the direction of the pump head;
  • 02Simple operation, according to the bottle type for free conversion;
  • 03Screw cap speed adjustable, according to the bottle, cap to adjust the tightness of the cap;
  • 04Small size, easy to move.

Applications



Capping Machine A universal capping machine that can cover a variety of bottles and caps, and is often used in the production and processing of food, medicine, chemical and other industries.The operator can tighten the cap without damaging the cap by adjusting the machine's torque, speed and capping time, depending on the material, style and tightness of the cap.

Parameter Data

Model XLSGJ-6100
Power supply AC220V/50HZ
Power consumption 60W
Air source pressure 5-6kg/cm2
Cap diameter 20-50mm
Bottle height 50-300mm
Twisting force 5-20N.m
Percentage of damage  ≤ 0.1%
Production capacity 600-1800 bottle/hour;
Machine weight 35kg
Overall dimension 620LX560WX770Hmm.
