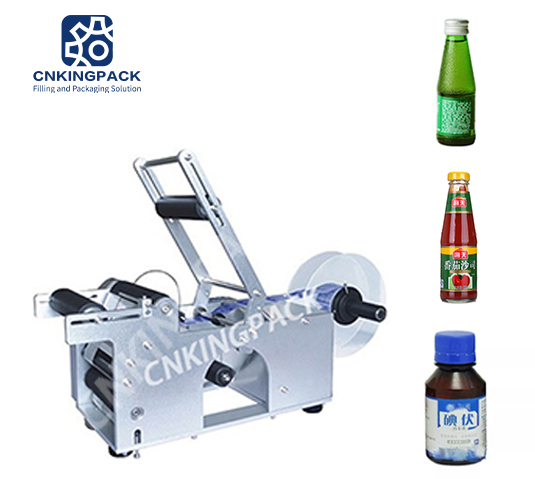

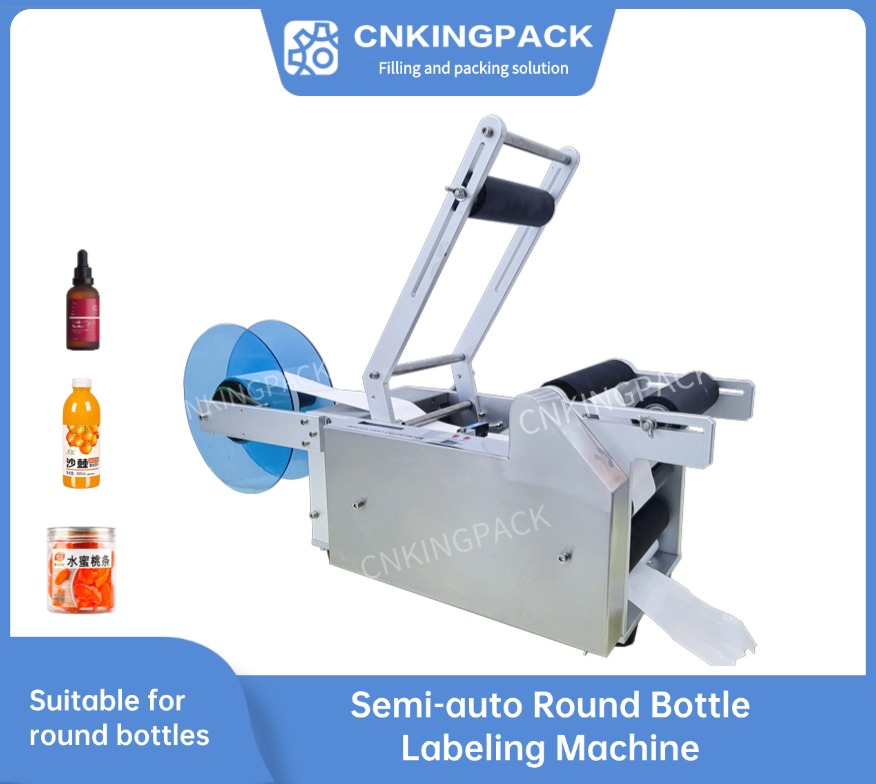

MT-50 Semi Automatic Round bottle Labeling Machine

It's applied to label the self-adhesive label on various size cylinder products, as wine bottle , zip-top cans , etc.

Description

MT-50 Semi-automatic Round Bottle Labeling Machine is ideal equipment for semi-automatic labeling of household chemicals, food and beverage,pharmaceutical, chemical, and the round bottle in the other light industry products on the packaging.

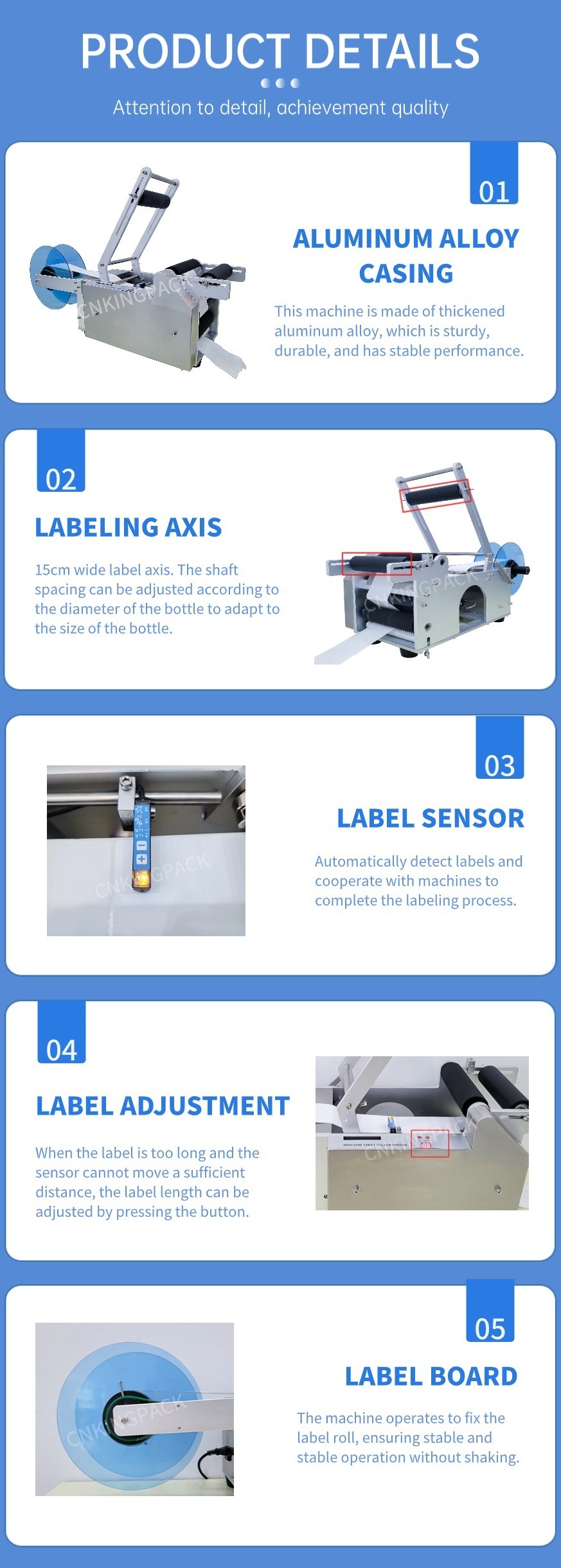

Features

  • 01Wide application, can meet the 10-100mm diameter range cylinder labeling.
  • 02 High precision end labeling, label place deviation less than 0.5mm.
  • 03The body is made of stainless steel, with long service life.
  • 04 Using synchronous belt traction, mechanical stability greatly improved.
  • 05This machine complies with CE certification

Advantage

  • 01This machine is suitable for round bottles of various sizes and the production of small quantities of many varieties.
  • 02This machine can be used in stand-alone label only.
  • 03Features of simple operation and convenient maintenance.
  • 04 Desktop design, Stainless steel body, compact appearance, powerful.
  • 05 Using the advanced electric eye detection sensitivity, object, label.

Applications

This machine suitable for round bottle, circular tank, cylinder self-adhesive labeling, suitable for PET bottles, plastic bottles, glass bottles, metal bottles round bottle labeling, widely used in cosmetics, food, beverage, pharmaceutical and other industries, greatly enhance the productivity and quality labeling.

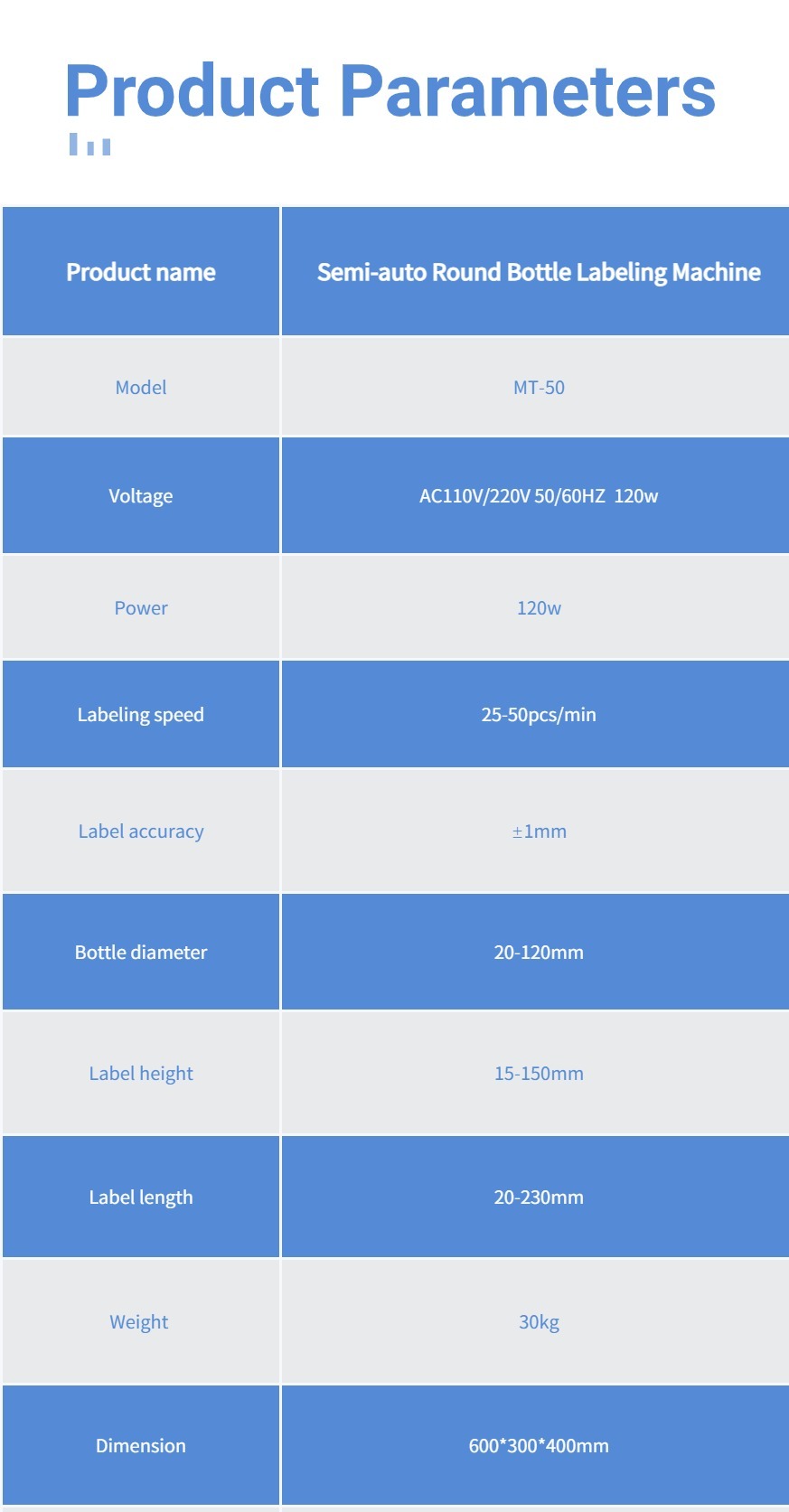

Parameter Data

Model

MT-50

Voltage

220V/110 V 50/60Hz

Motor Power

120 W

Applicable Bottles of Diameter

15-120 mm

Label Roll External Diameter

300 mm

Label Roll Inner Diameter

76 mm

Min. Label Size

26(W) x 25(L) mm

Max. Label Size

150(W) x 240(L) mm

Labeling Speed

20-40 pcs/min

Labeling Accuracy

±0.5 mm

Weight

50 kg

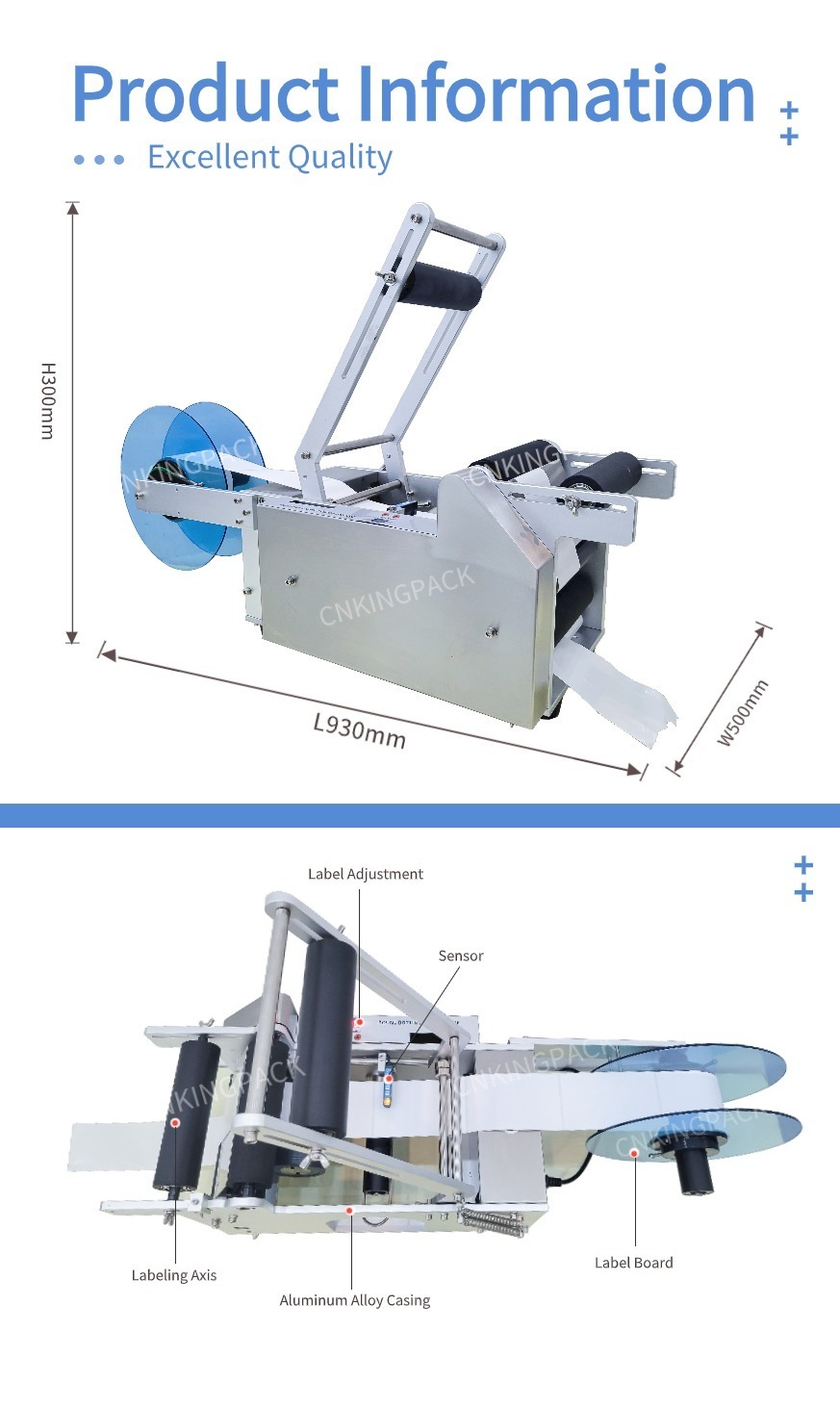

Dimension

75*55*65cm
