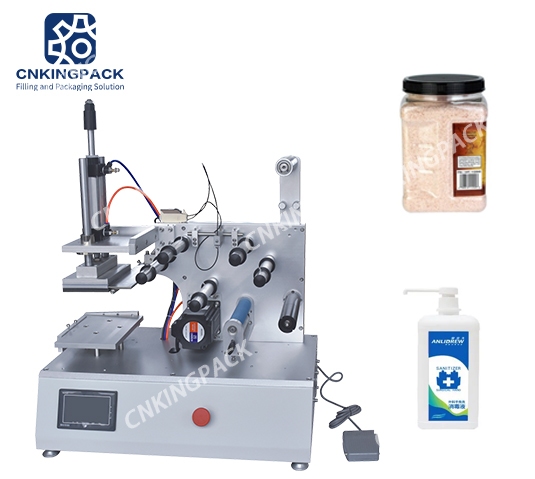

MT-61 Tabletop Semi Automatic Flat Labeling Machine

This machine is suitable for labeling various plastic/glass/metal square bottles and flat surface with self-adhesive label.

Description



This machine is suitable for labeling various plastic/glass/metal square bottles and flat surface with self-adhesive label.It's electric and pneumatic driven,high performance,can do more accurate positioning,widely used in cosmetic,beverage,food,medicine etc,it is an ideal label equipment which can improve the productivity effectively.



Features

  • 01Suitable for different size of adhesive label or adhesive film on all kinds of flat bottle.
  • 02High accuracy and high speed,dispensing & labeling automatically.
  • 03It is used in PET bottle, plastic bottle, glass bottle, Metal bottle, flat bottle and so on.

Advantage

  • 01The position of labeler head is adjustable, up and down, forward and back.
  • 02Suitable for kinds of flat surface, such as square box.
  • 03Good labeling quality, no air bubble, no ruga.
  • 04Compact body, need not maintenance

Applications

The sensor detects the passing of the product, and sends back the signal to the labeling control system. The control system controls the sending of the label at the appropriate position and attaches it to at the position where the product is to be labeled, the product flows through the labeling device, the label is attached to the product, and the attachment of a label is completed.



Parameter Data

Model
MT-80
Voltage
220V  50Hz/110V  60Hz
Power
120W
Working speed
About 25-50pcs/minute
Labeling accuracy
±0.5mm
Min. label size
W3*L4cm
Max label size
W6*L12cm
Label roll inner diameter
75mm
Max label roll outer diameter
300mm
Machine size
About 510*600*320mm
Package size
About 660*350*555mm
Net weight/Gross weight
About 27kg/32.5kg
