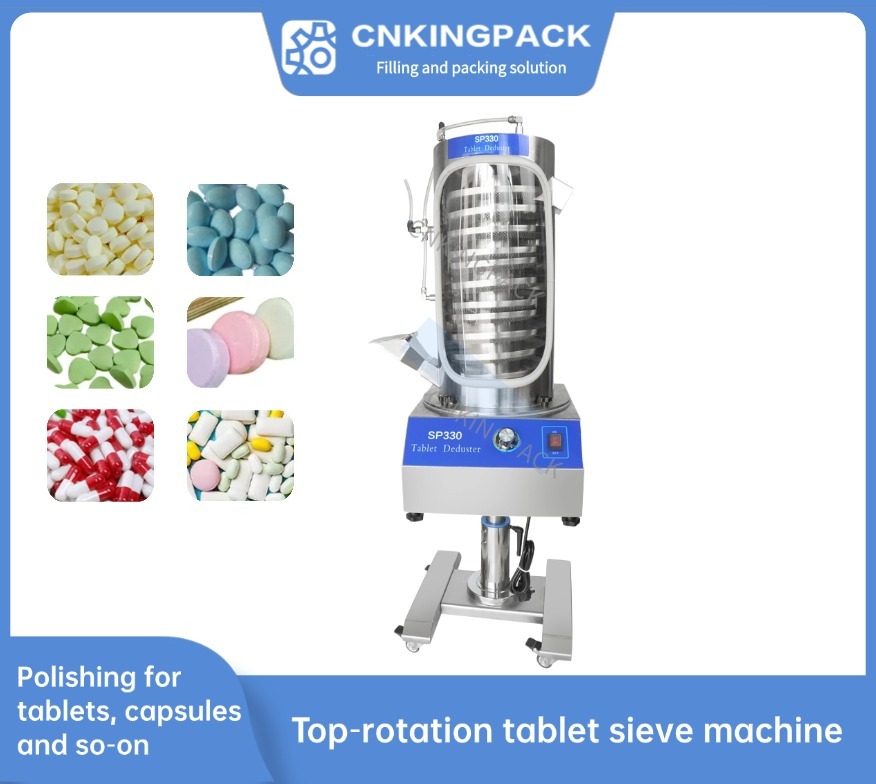

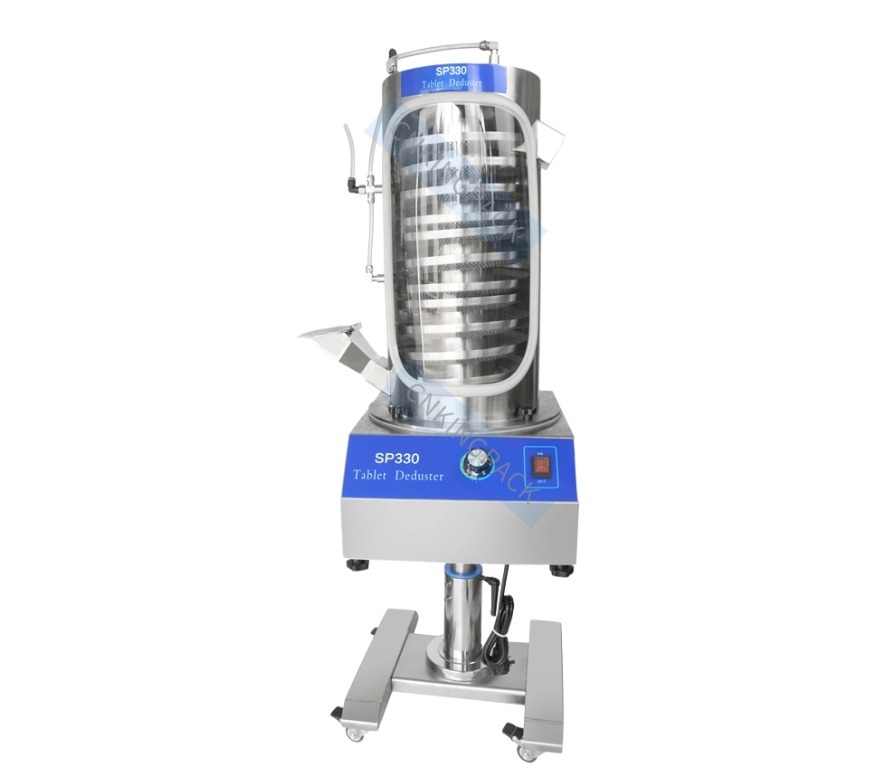

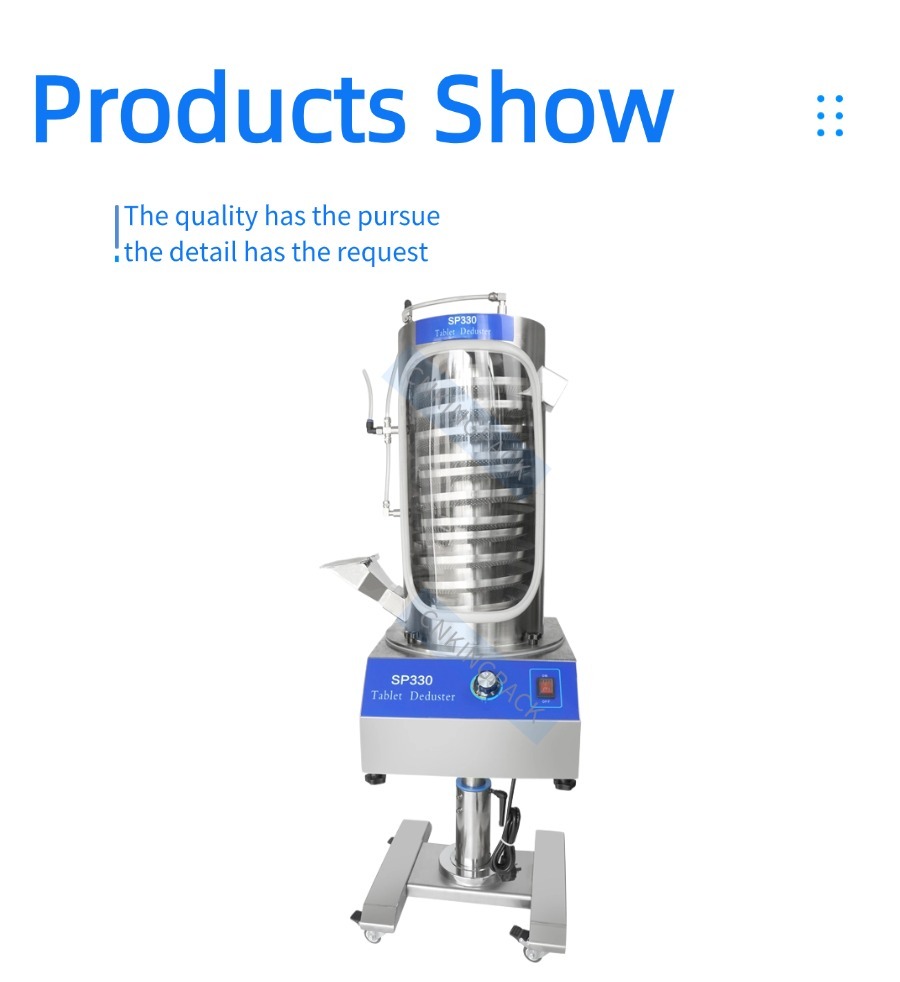

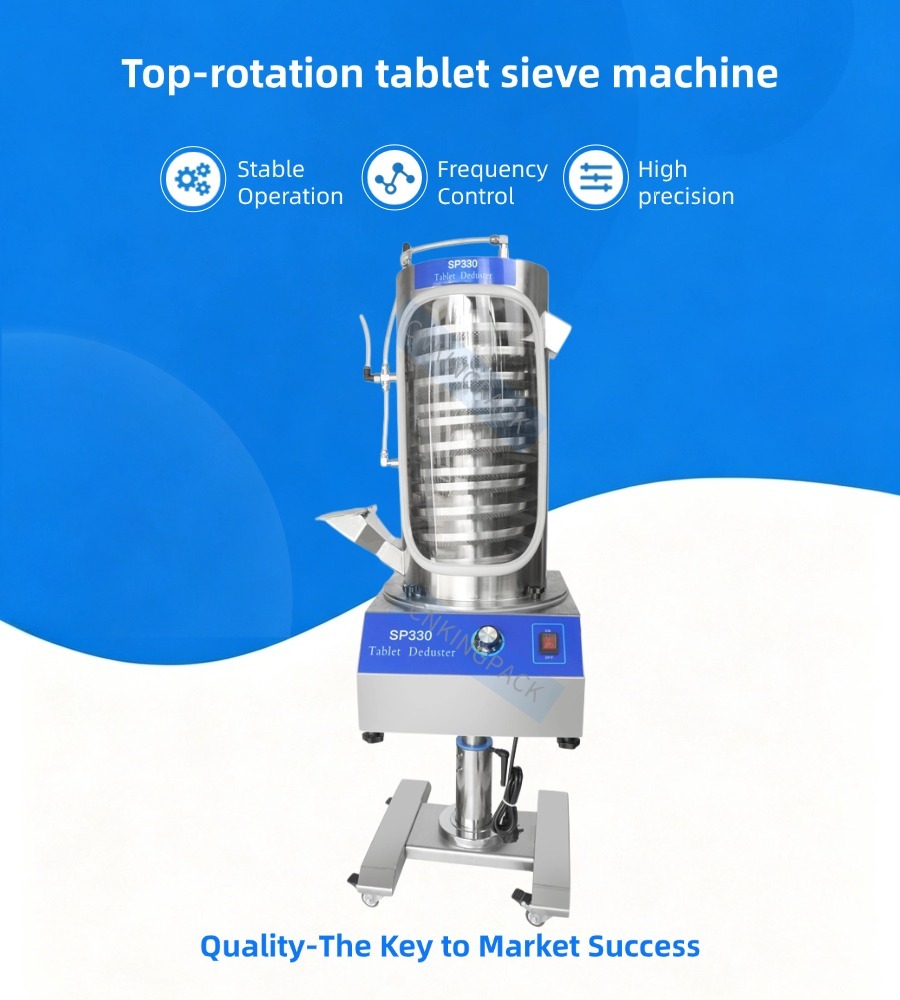

Top‑rotation tablet sieve machine
Triple‑function for polishing, dedusting and lifting of tablets, capsules and others.
Height‑adjustable for connection with other equipment such as tablet presses, metal detectors, etc.
Description
Triple‑function for polishing, dedusting and lifting of tablets, capsules and others.
Height‑adjustable for connection with other equipment such as tablet presses, metal detectors, etc.
Features

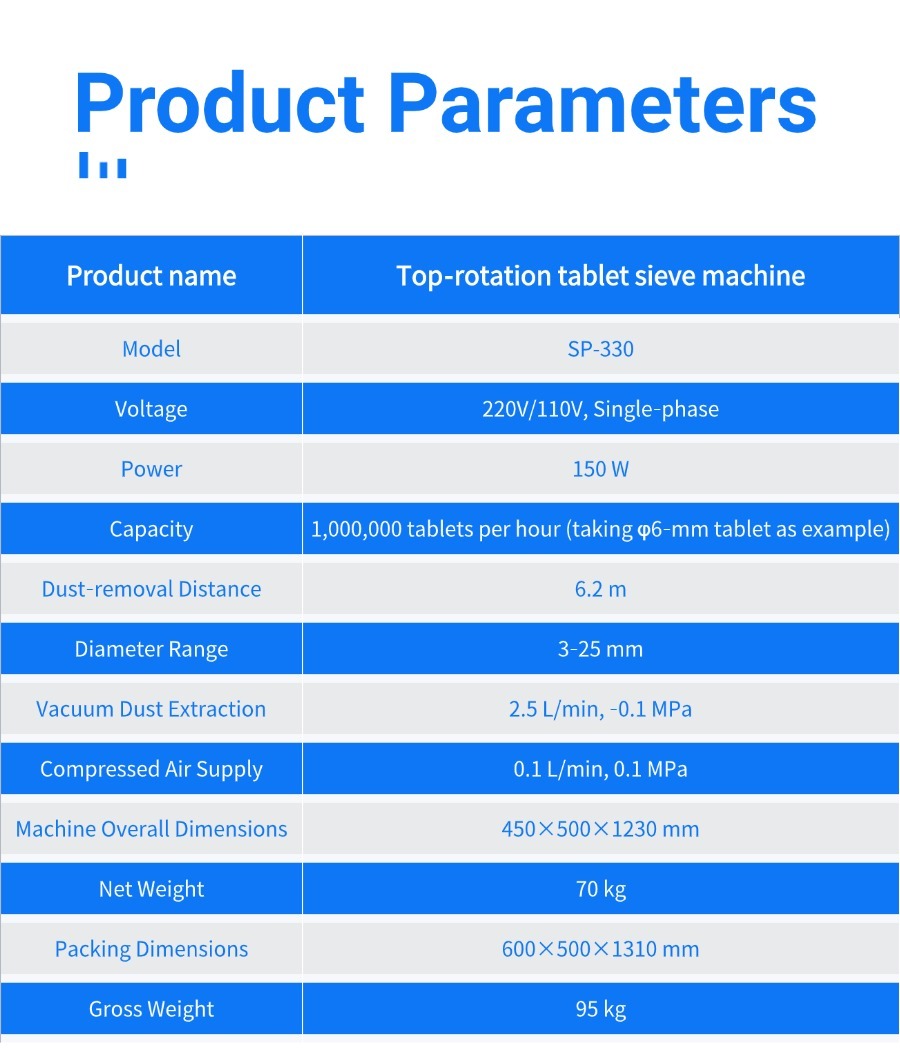

| Product name | Top‑rotation tablet sieve machine |
| Model | SP‑330 |
| Voltage | 220V/110V, Single‑phase |
| Power | 150 W |
| Capacity | 1,000,000 tablets per hour (taking φ6‑mm tablet as example) |
| Dust‑removal Distance | 6.2 m |
| Diameter Range | 3‑25 mm |
| Vacuum Dust Extraction | 2.5 L/min, ‑0.1 MPa |
| Compressed Air Supply | 0.1 L/min, 0.1 MPa |

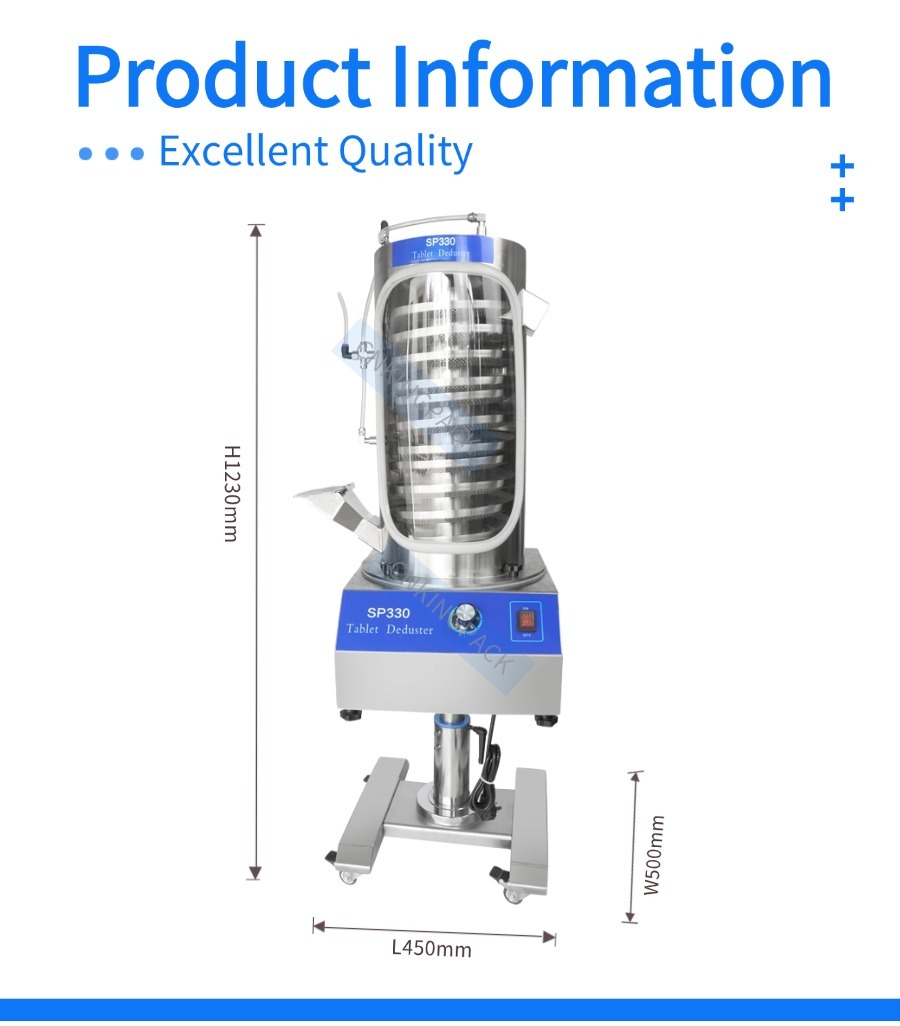

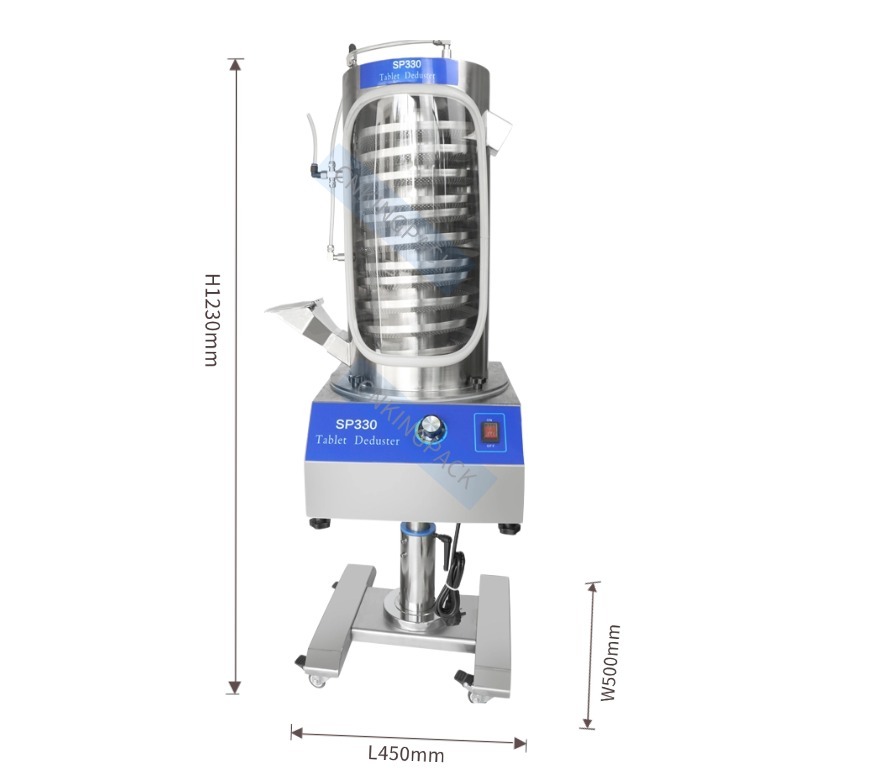

| Machine Overall Dimensions | 450×500×1230 mm |
| Net Weight | 70 kg |
| Packing Dimensions | 600×500×1310 mm |
| Gross Weight | 95 kg |
