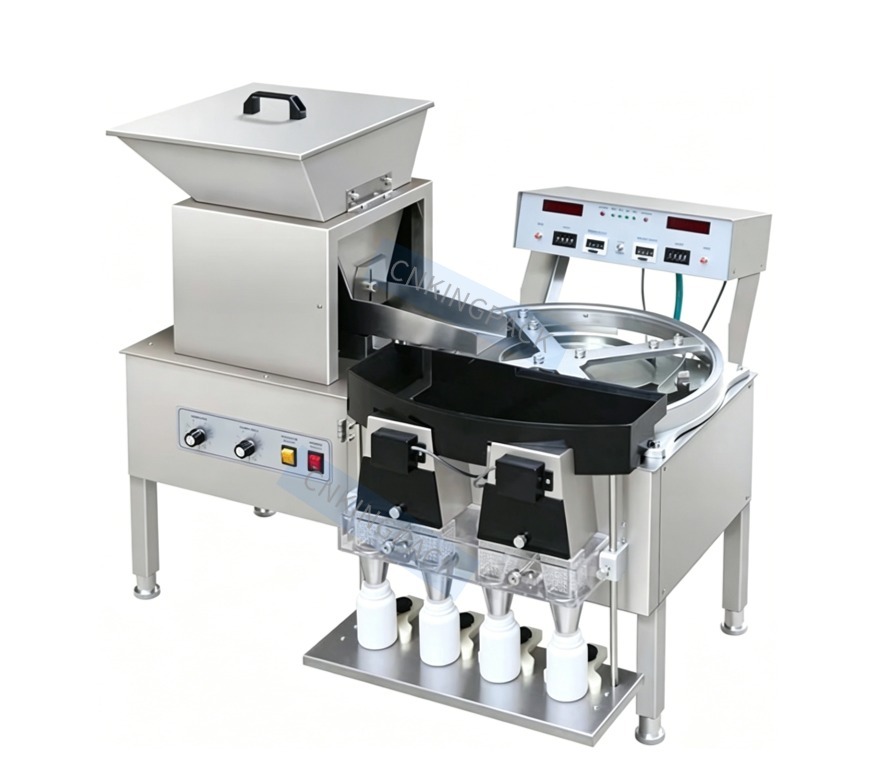

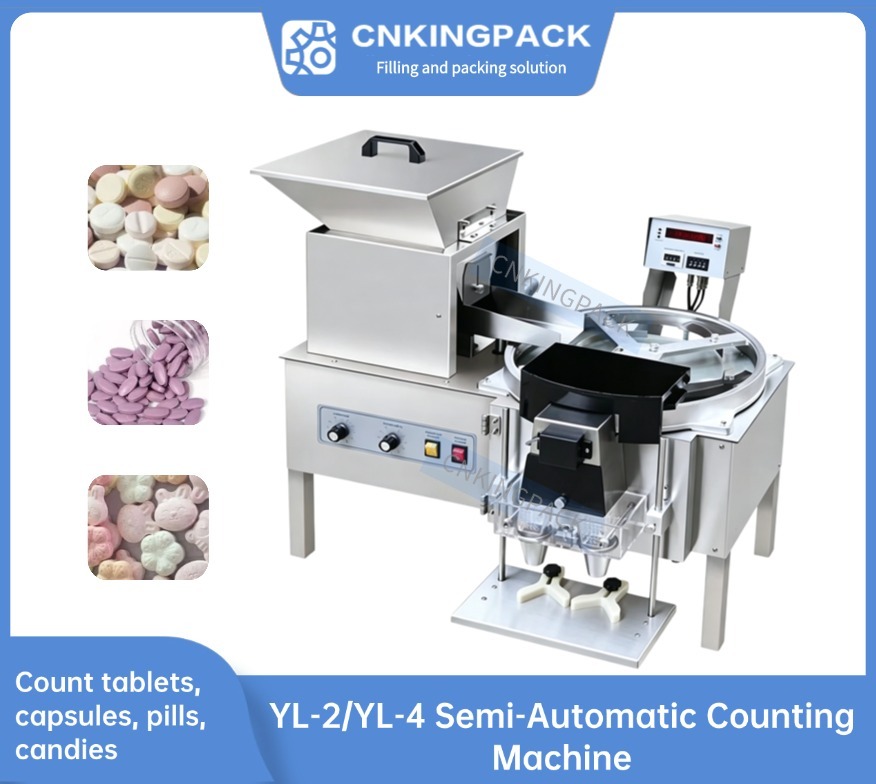

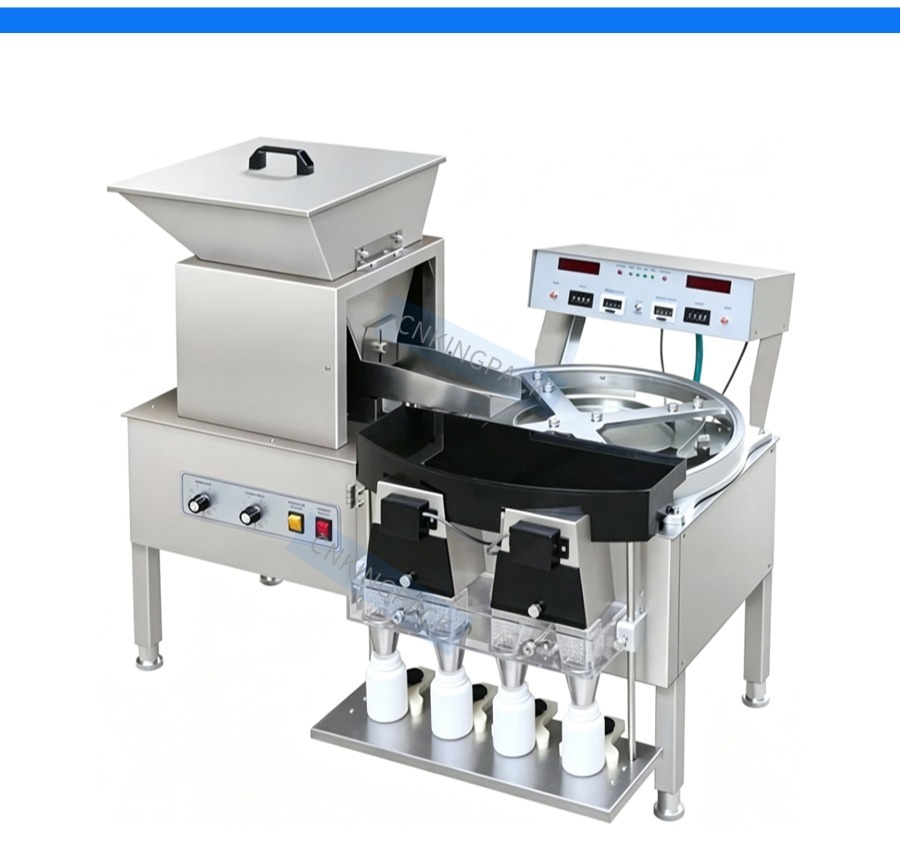

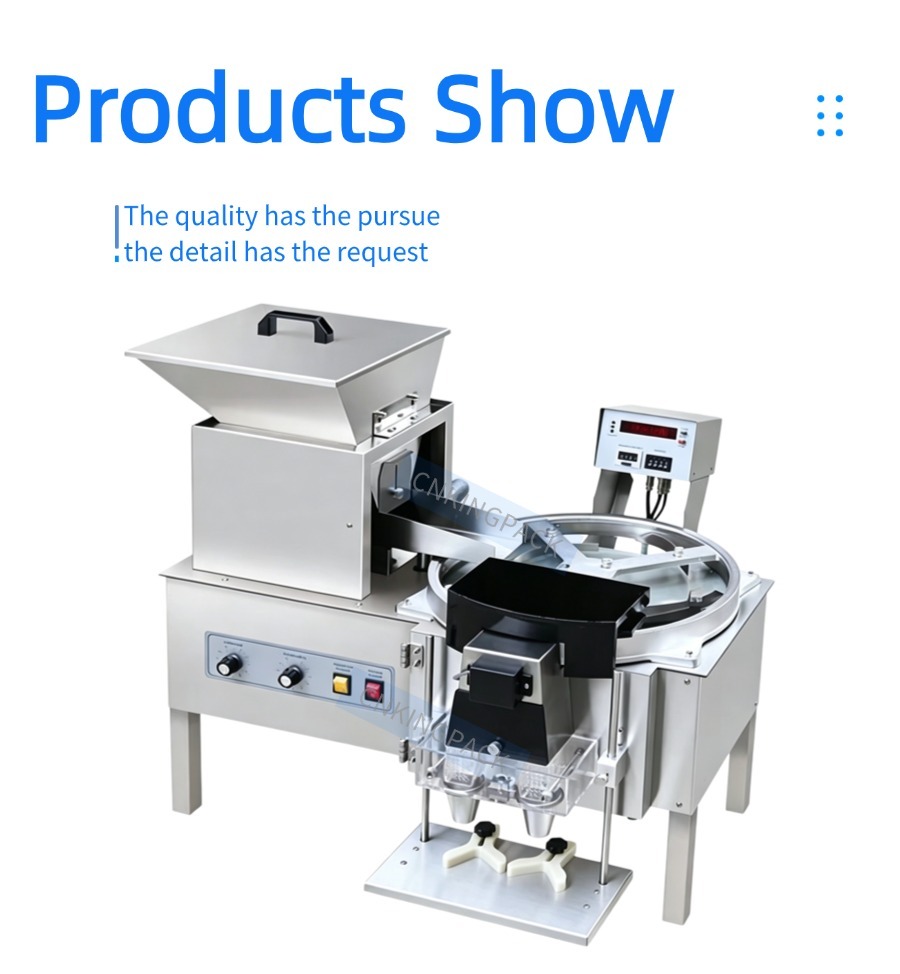

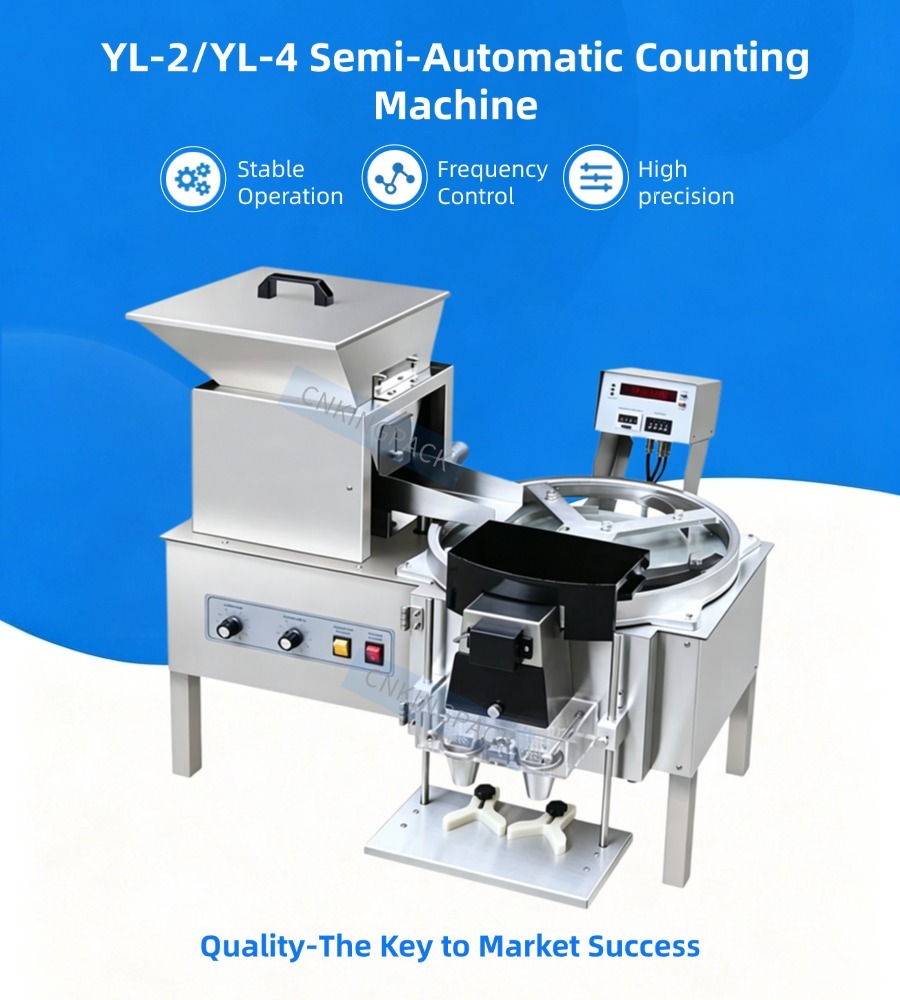

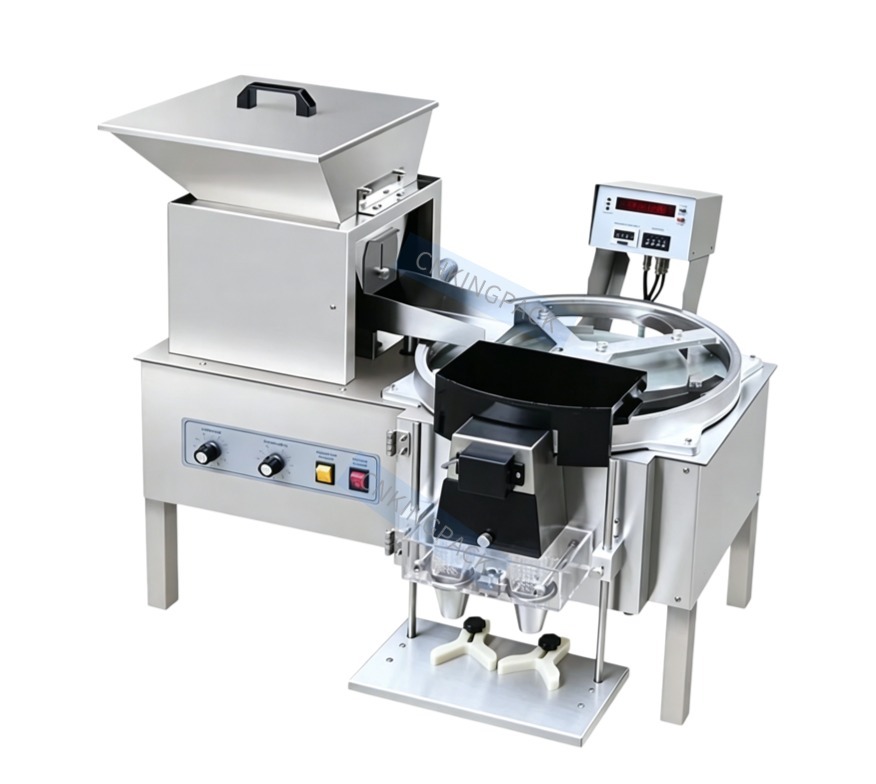

YL-2/YL-4 Semi-Automatic Counting Machine
The product uses the principle of photoelectric induction to count and divide the particles sensed. The machine adopts vibrating blanking and then rotating centrifugal discharging to count the particles one by one.
Description
A reversing solenoid valve is set at the rear of the track to make the falling track switch left and right. When the left side is filled according to the set quantity, it will switch to the right side for filling. At the same time, the bottle under the outlet will be replaced manually, so as to work continuously.
Features

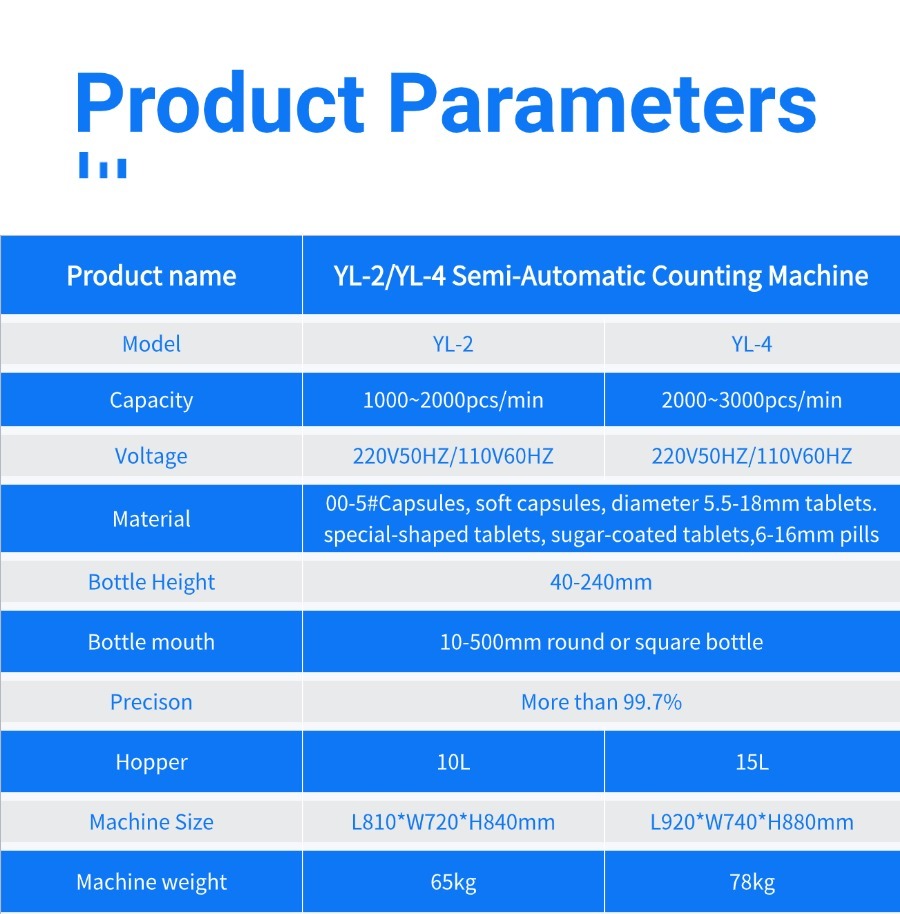

| Product name | YL-2/YL-4 Semi-Automatic Counting Machine | |
| Model | YL-2 | YL-4 |
| Capacity | 1000~2000pcs/min | 2000~3000pcs/min |
| Voltage | 220V50HZ/110V60HZ | 220V50HZ/110V60HZ |
| Material | 00-5#Capsules, soft capsules, diameter 5.5-18mm tablets. special-shaped tablets, sugar-coated tablets,6-16mm pills | |
| Bottle Height | 40-240mm | |
| Bottle mouth | 10-500mm round or square bottle | |
| Precison | More than 99.7% | |
| Hopper | 10L | 15L |

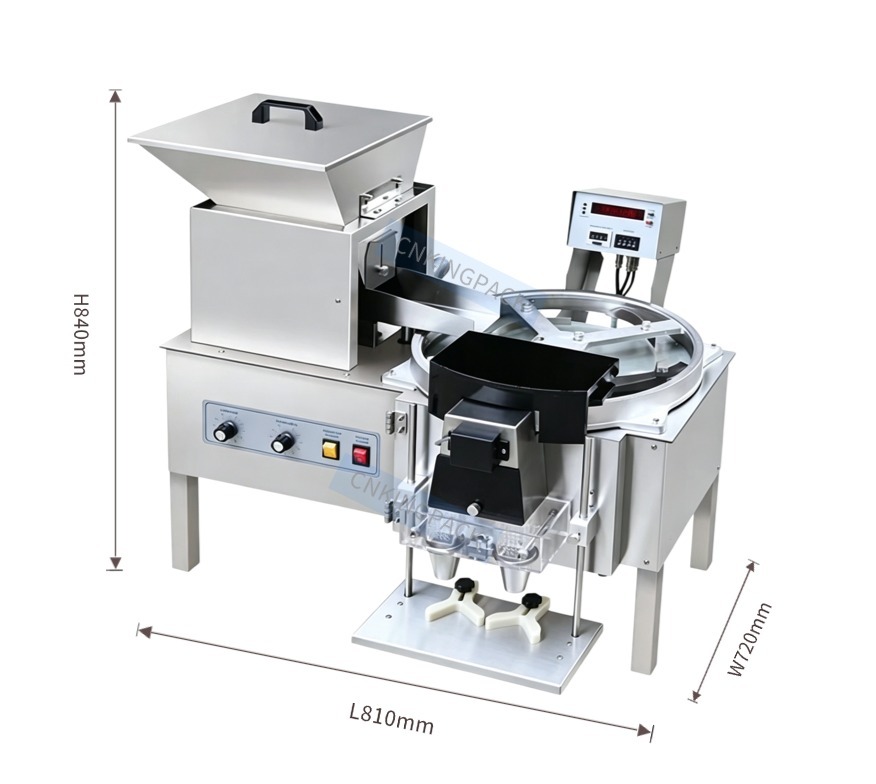

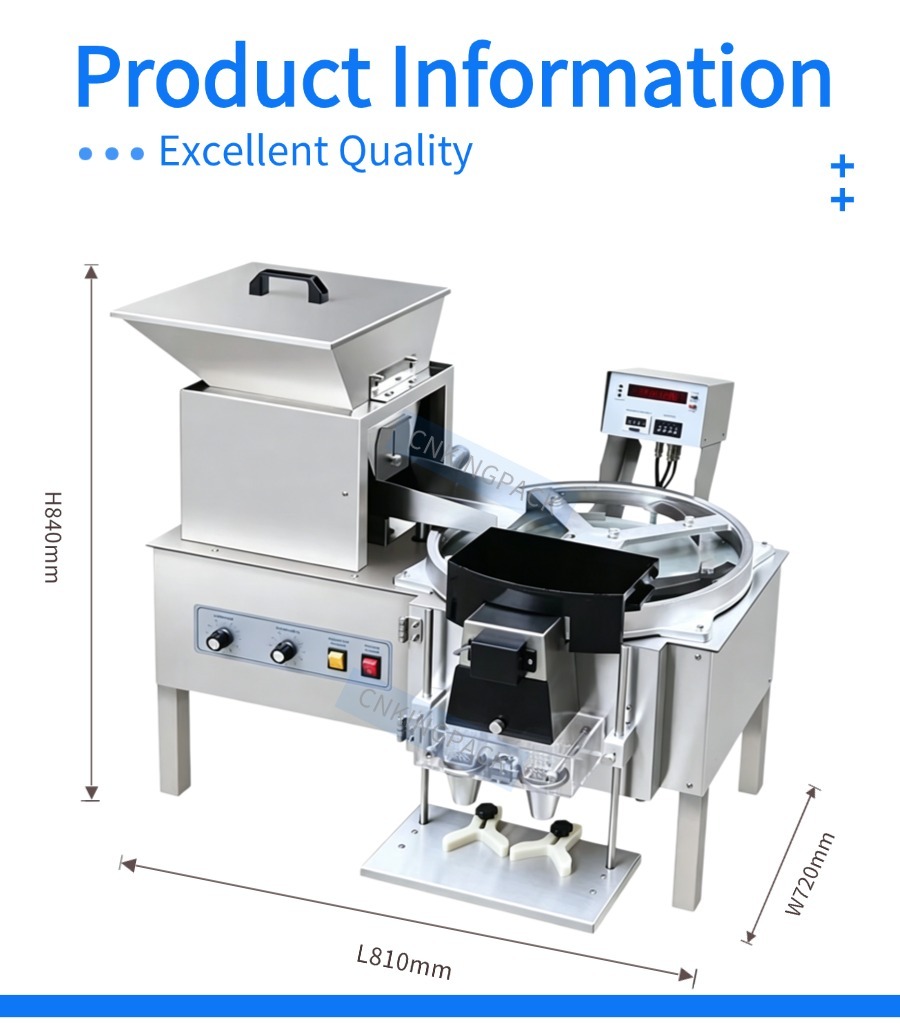

| Machine Size | L810*W720*H840mm | L920*W740*H880mm |
| Machine weight | 65kg | 78kg |
