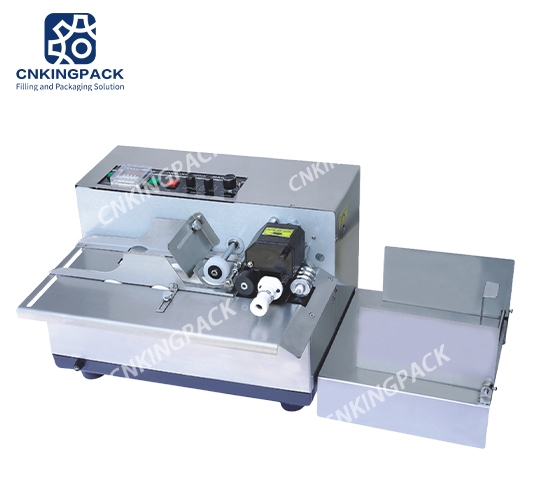

MY-380F Ink roll coding machine
Description
MY-380F/W solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.
Features
- 01Printing method: Adopting solid ink roller, featured with clear printing, easy dry, non sticky, not easy to wipe off.
The printing roller equipped to the machine can be used for both R font and T font types.For types in T font, the machine can print 1-10 lines with 1-10 characters in each line.For types in R font, the machine can print 1-8 lines with 1-8 characters in each line.Types in sizes of 2mm, 2.5mm, 3mm are available as option.
- 02Suitable products: thin papers cardboard, bags, paper sheet,leather,plastic film,aluminum foil,especially fit for coding on paper box of shoes, clothing.
- 03 Heat printing: Adopting constant temperature controlling and adjustable temperature, printed suitable for color ribbon made out of different kinds of materials.
- 04 Working ways: Automatic continuous print codes or control by pedal.
- 05Print heads and letter material: Copper
- 06Letter inclusive: Arabic numerals 0-9 each 3pcs, English letter:MFG, EXP, LOT each 1 pcs.
Adopting photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.
Advantage
- 01Easy operate, safe switch and temperature control help the machine work well .
- 02The machine uses high-quality transport assembly, can continuous printing, intelligent and convenient, high efficiency.
- 03Coding machine can be printed on, if not clear can be adjusted the print word pressure.
- 04Original is black ink wheel with machine. Other color need buy additional.
Applications
The position of the MY380 is controlled by electronic and can be adjusted freely. The imprinted action and counting are controlled by photoelectric switch, and can set up the number of coding. Special clutch, sensitive, precise, stable. The machine adopts advanced solid ink wheel, which has the excellent properties of instant printing and easy to erase. It is especially suitable for plastic film, metal foil and other non-absorbent materials and paper packaging. The printing wheel adopts special zinc alloy word, long life and easy to replace.
Parameter Data
|
Model
|
MY380
|
|
Speed
|
0~300pcs/min
|
|
Solid ink roller size
|
36*32mm
|
|
Product size
|
Length:55-550mm Width:30-300mm
|
|
Print location
|
Single way width:60mm Length:250mm Adjustable
|
|
Print row
|
T-type max 5 rows R-type max 5 rows
|
|
Character size
|
2.5x1.5(8PT) 2.5x2(9PT) 3x2(10.5PT) 5x2.5(18PT) 4 sizes optional
|
|
Dimension
|
440*345*260mm
|
|
Weight
|
23KGS
|
