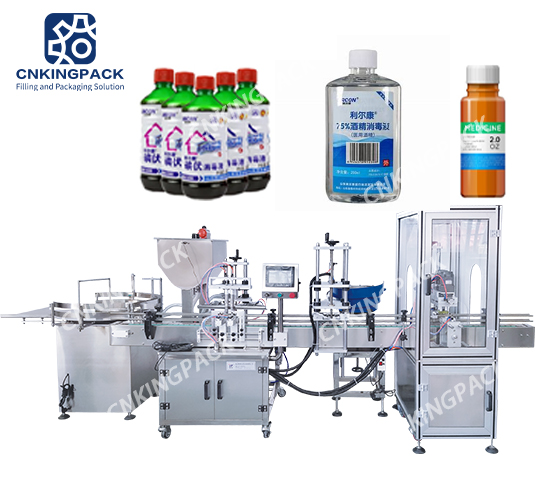

Filling Capping Line

This line is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

Description

This line is applied for viscosity and paste filling similar like cream, shampoo, liquid soap, lubricant, engine oil products. It is able to integrate to capping machine and labeling machine in bottling line, fully complete and intelligence control advantage.

Features

  • 01 Convenient to take out component parts to clean and sterilize, adjust to fit to other bottle size with no change parts.
  • 02 Frequency speed control, no bottle no fill intelligence.
  • 03 Main electric elements adopt Wenview , Delta, CHNT brand.
  • 04 Whole machine designed and manufactured accordance to GMP regulation.
  • 05 Intelligent operation panel make the working data visual,this help to control the machine better.and it is with stop button,can protect the machine from damage and keep the operator safe during working.
  • 06 The conveyor is with bottle guiding device which is designed for arranging bottles in order.The high quality conveyor helps to improve working speed and save a lot of labor.

Advantage

  • 01 PLC controlled , touch screen operation, integrated cap capping (automatic cap sorting/cap feeding can be option);
  • 02 Automatic infeed cap and bottle position-setting and orientation, adjustable torque control;
  • 03 Gentle manipulation, no scratch and injury to caps and containers;
  • 04 When filling a new specification dose, the dose adjustment can be done at one time on the touch screen, and the fine adjustment of the dose of each filling head is also carried out directly on the touch screen.
  • 05 Optimized in and out bottle control mode, two modes of normal/fast can be selected.In the fast bottle in and out mode, the bottle is fed in at the same time as the bottle is discharged, and there is no delay between the in and out of the bottle, which effectively improves the production efficiency.

Applications

  • 01 Beverage field (such as water, juice, beer, liquor, vodka, wine etc.)
  • 02 Food field (such as honey, sauce, oil, chocolate, vinegar etc. )
  • 03 Chemical and Pharmaceutical field (such as syrup, eye drop, alcohol, reagent, ampoul, syringe etc. )
  • 04 Cosmetics field (such as perfume, body spray, nail polish, cream, lotion, detergent, hand gel etc. )

Parameter Data

Filling machine parameters

Model

DG-2

DG-4

DG-6

Filling Head

2

4

6

Filling volume

100-1000ml

1000--5000ml

100-1000ml

1000--5000ml

100-1000ml

1000--5000ml

Filling type

Piston Quantitative Filling

Piston Quantitative Filling

Piston Quantitative Filling

Speed

300-600B/H

600-1000B/H

1000-1500B/H

Filling accuracy

±1%

±1%

±1%

Material

Stainless steel 304

Stainless steel 304

Stainless steel 304

Air pressure

0.5--0.8Mpa

0.5--0.8Mpa

0.5--0.8Mpa

Power

220V,50Hz,500W

220V,50Hz,500W

220V,50Hz,500W

Air consumption

200-300L/min

200-300L/min

200-300L/min

Weight

400KG

550KG

700KG



Capping machine parameters

Name

Automatic Twist Cap Capping Machine

Model

PC-400

Application

Pump cap ,needle cap & standard cap capping

Production

1000-2000B/Hour

Power

220V 50Hz  0.7KW

Cap height

10-30mm

Cap diameter

Φ 19--Φ 55mm(can be customized)

Bottle height

80-350mm

Bottle diameter

Φ35-Φ100mm (can be customized)

Air supply

0.4-0.6Mpa

 Weight

300Kg

Dimension

2000*1100*1550mm
