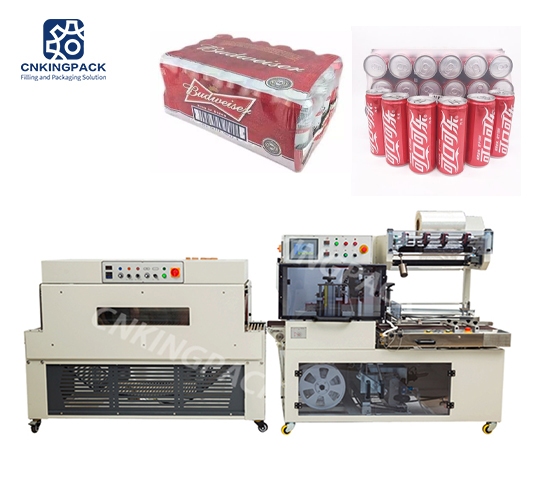

Automatic L-type Sealing and Shrink Packaging machine
These machine can fold film ,seal sides and shrink film to finish the package.The temperature and time can be adjusted according to operation needs.These machine are widely used in food,electronics, and printing industries.
Description
This shrink packaging machine is a high-speed vertical up and down sealing and shrinking packaging machine designed for the refined production of cosmetic films. Mainly for high and thin products, it can automatically complete the steps of feeding, film wrapping, sealing and cutting, shrinking, etc., to ensure that the sealing line is in the middle position, automatic film blowing, and the sealing line is thin, suitable for POF film and cross-linked film. The heat shrinkable packaging effect is beautiful, smooth and wrinkle-free, without personnel operation, the packaging speed is 5-80 Pcs/min, and the work efficiency is high. This sealing and shrinking packaging machine are also suitable for printing, color box, medicine, daily chemical, auto parts, food and other industries.
Features
DQL5545 AUTOMATIC L-TYPE SEALER CHARACTERISTIC：
1. The sealing knife adopts copper alloy sprayed with teflon, it won't stick film, sealing fastness, without smoke, non-pollution. Horizontal and vertical sealing knife adopt whole connecting without gap, the film won't break. Sealing frame adopts high quality alloy steel, the sealing quality is stable, frame difficult to be damaged.
2. The machine has entire automatical system, it equiped with sensors can reach high speed automatical working.
3. It is convenient to adjust according to different sizes products, just adjust the handle wheel can reach it, operation is easy.
4.it can be connected with production
5.it has protection function to avoid sealing product wrong and ensure the safety of operator
DSC4520 SHRINK TUNNEL(WITH VISUAL WINDOW):
1. It adopts Schneider AC contactor, high-power Solid state booster and intelligent temperature controller to make
temperature system more accurate, prolong the working life.
2. It adopts solid roller conveyor, the rollers wrapped with high temperature silica gel tube. It can stand heavy product and difficult abraded (you can choose net type conveyor)
3. It adopts high-power fan motor to ensure enough strong wind to reach perfect packing effect.
4. Inside wall adopts stainless steel, it has fast temperature transfer, even heating, low energy consumption, long working life characteristics.
Advantage
1.The fully automatic heat shrink packaging machine is widely used in the production of packaging lines and has high work efficiency.
2.The cutter adopts Teflon coating anti-adhesive and high-aluminum-bonded knife, the seal will not split, no coking, no smoke and zero pollution.
3.Equipped with imported detection optoelectronics and relays. (Using Omron optoelectronic).
4.Automatic feeding, the length is automatically adjusted by the delay switch.
5.Equipped with an induction motor to automatically take up scrap.
6.When the size of the package is changed, the adjustment is very simple, and there is no need to change the mold and the bag maker.
Applications
This machine Suitable for large quantity shrink wrapping industries such as stationery, food, cosmetic, pharmaceutical, metal industries etc, imported PLC automatic program control, easy operation, safety protection and alarm function, and effectively prevent incorrect, packaging, Equipped with imported horizontal and vertical detection photoelectric, easy to switch selection. It has the function of contact, specially designed for packing small size products. The machine can be connected with the production line, no need additional operators.
Parameter Data
|
Model |
DQL5545 |
DSC4520 |
|
Max packing size(mm) |
L+2H≤550, W+2H≤450,H≤130 |
W450×H200 |
|
Max sealing size(mm) |
L550×W450 |
/ |
|
Power（KW） |
1.30 |
13 |
|
Capacity |
0-16m/min |
0-16m/min |
|
Voltage |
220V 50/60HZ |
380V 50/60HZ |
|
Sealing temperature |
180℃—250℃ depends on thickness of film and environment temperature |
180℃—250℃ depends on thickness of film and environment temperature
|
|
Thickness of film(mm) |
0.015－0.10 |
0.015-0.10 |
|
Air pressure(Kg/cm2) |
5 |
5 |
|
Packing material |
POF PVC |
POF PVC |
|
Machine weight(kg) |
320 |
210 |
|
Machine size（mm） |
L1700*W900*H1400 |
1600*700*1400 |
