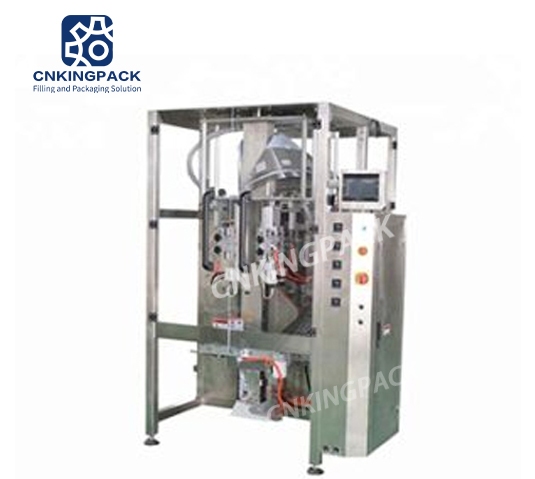

KPL-420SBT Automatic 4 Side Ironing Packing Machine
This machine can pack different products with different measuring devices,such as granule packing,powder packing,liquid or sauce packaging.
Description
Stand up pouch filling and sealing machine can pack different products with different measuring devices,such as granule packing,powder packing,liquid or sauce packaging.
Features
- 01Imported PLC computer control system,color touch screen,easy operation and much more stable;
- 02Seperate pneumatic control and power control with low noise and more stable circuit ;
- 03Imported servo pulling film system and imported color sensor,accurate positioning,perfect operation;
- 04Multiple automatic alarm protection,reducing the loss furthest;
- 05External loading film system to make the setting easily.
- 06Enclosed mechanism is used to prevent dust entering effectively.
Advantage
Stainless steel 304 foods grade
Good Quality
Good Price
Prompt Delivery
Applications
Suitable for food, beverage, daily necessities, chemical industry and other industries
Parameter Data
| Model | KPL-420SBT | KPL-620SBT |
| Film width | Max.420mm | Max.620mm |
| Bag length | Max 300mm | Max 400mm |
| Front Width | 50-150MM | 100-174mm |
| Side Width | 35-70MM | 60-116mm |
| Iron Width | 5-10MM | 5-10mm |
| Packing Speed | 15-50PCS/MIN | 10-30pcs/min |
| Gas Consumption | 0.55m³/min | 0.65m³/min |
| Air Pressure | 0.65MPA | 0.8mpa |
| Power | 220V AC 50HZ, single phase,4.2Kw | 220V AC 50HZ, single phase,5.5Kw |
| Packaging Film | Complex film(OPP/CPP,OPP/PE.PET/PE etc) | Complex film(OPP/CPP,OPP/PE.PET/PE etc) |
| Dimension | 1510x1350x1770mm | 1600x1500x2200mm |
| Weight | 650KG | 900kg |
