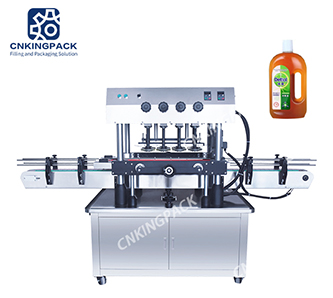

PC-300 Automatic Online Twist Capping Machine
Capping for plastic cap of various bottles, jars, atomizer bottle, etc.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.
Description
This automatic capping machine can cap a wide range size of the bottle, it is mainly used for tightening screw caps, suitable for all kind of shape lid ,such as plastic bottles, glass bottles, cosmetic bottles, bottles of mineral water. Host speed using imported inverter, stepless speed regulation. This machine has compact and reasonable structure, so it can be easily linked with other equipment into line. it is suitable for food, medicine, pesticide, chemical industries and so on. Feel free to contact us if any questions regarding our products you would like to know.
Features
- 01 Variable speed AC motors.
- 02 Spindle wheels adjustment knobs, with lock nut hand wheel.
- 03 Meter Index for easy mechanical adjustment.
- 04No change parts required for a wide range of containers
- 05Comprehensive universal cap chute and escapement
- 06 With 2 layer bottle clamping belt, suitable for containers of various shap.
Advantage
- 01Frequency control, stable and safe.
- 02 Capping system up & down , which was control by motor, it is easy to adjust capping height to be suitable for different bottle height.
- 03 Easy setting, good appearance and practical functions
- 04 High capping speed.Compared with normal claw-shaped capping machines,its capping speed is increased by3-4 times.Besides,it can effectively prevent hair-shaped on bottle and damaging caps,and so on
- 05 Suitable for bottles with various specifications by adjusting the timing belt distance, turning wheel distance and machine height, without changing the components
- 06 Suitable for round, square, oblate, or flat bottles with various specifications
- 07 can be used separately or used with other equipment such as calculating machine, sealing machine and labeling machine, becoming an automatic mechanical packaging line
- 08 Applicable to the capping of cosmetic, medicine and drink bottle caps
Applications
Capping for plastic lids of various bottles, jars, atomizer, etc.Widely used in cosmetic, drinks, chemical, medical, food industry etc, which
can highly improve productivity and product quality.
Parameter Data
Name |
Automatic online twist capping machine |
Model |
PC-300 |
Application |
Pump cap ,needle cap & standard screw cap |
Production |
2000-6000B/Hour |
Power |
220V 50Hz 1.1KW |
Cap diameter |
20-40mm |
Bottle height |
80-350mm |
Twisting force |
5-20N.m |
Weight |
400Kg |
Dimension |
3000*1000*1700mm |
