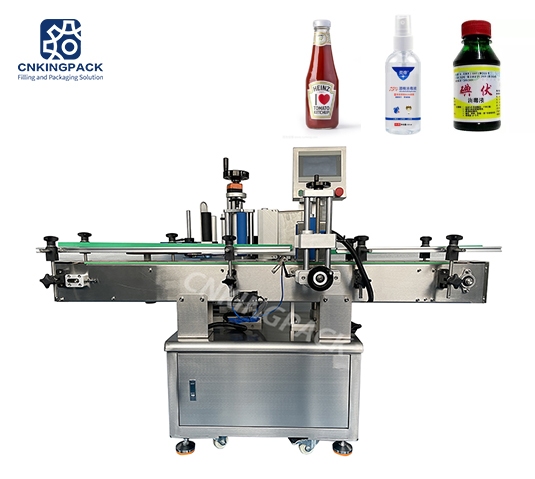

KP-70N Automatic Round Bottles Positional Labeling Machine

This labeling machine labels stickers by the pressing belt during bottle transporting.This kind of labeling method can improves labeling efficiency.It is good for single side labeling on round bottles.This machine is widely used in food,daily chemical, cosmetics industries.

Description

It's applied to label the self-adhesive label on various large size cylinder products, as wine bottle , zip-top can , etc.

This machine is widely used in electrical , pharmacy, foodstuff, beverage, cosmetic and chemical etc industries.



Features

  • 01Label pre-feeding system makes the label feeding stable, stickup smoothly and label position precise.
  • 02Label-feeding adopt tensioning design to ensure that the coding quality, and can accurately control the length and uniformity of the label.
  • 03The label-rolling and label pressing adopt different structure by different bottles shape to ensure the quality of the labeling.

Advantage

  • 01Adopt High stability Keyence labeling system, operation is stable and high-speed;
  • 02Using touch-screen control operating system, simple, practical, efficient;
  • 03Adapt variety shape of object in top labeling;
  • 04Screw adjustment to suppress body movements accurately;
  • 05Synchronization chain mechanism ensure labeling smooth and precise calibration;
  • 06Advanced technology of pneumatic coding system, print the batch number and expiry clearly.
  • 07Transmission-type rolling bottles, make sure the labels attached more firmly;
  • 08Labeling transparent label without bubble and wrinkle

Applications

Widely used in medicine, food, toys, cosmetics, and other industries. Disinfection bottle labeling, Gel double standard labeling, red wine bottles are labeled positioning labeling and so on.

Parameter Data

Model
KP-70N
Voltage
110/220V 50-60HZ 1100W
Label Length
30-300mm
Label Width
30-150mm
Suitable Bottle Diameter
φ20-120mm
Outside Diameter Of Standard Roll
φ280mm
Inside Diameter Of Standard Roll
φ76mm
Labeling Accuracy
±1.0mm
Conveying Speed
16m/min
Marking Speed
5-19m/min
Labeling Speed
30-60 bottles/min
Machine Size
About 2000*1450*1600mm
Machine Weight
About 250kg
Package Size
About 2110*1000*1450mm
Package Weight
About 296KG
