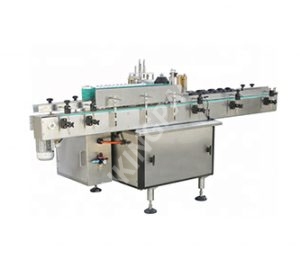

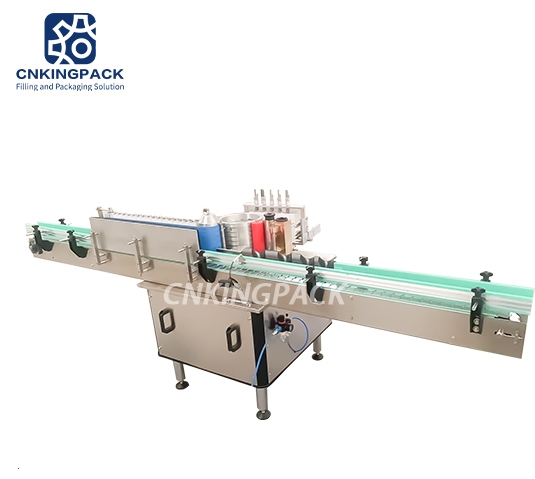

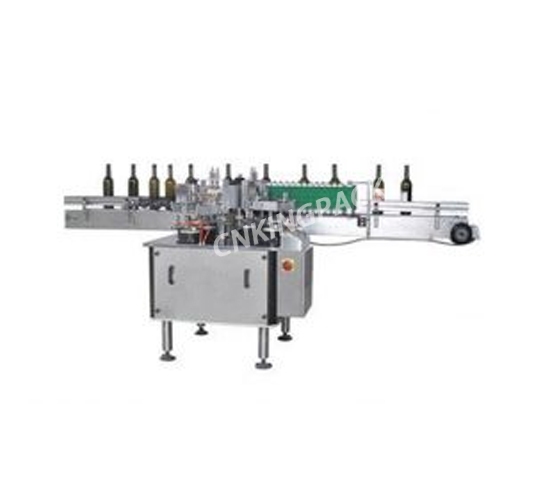

TXY-1 Automatic Wet Glue Labeling Machine

Suitable for glass bottle wet glue labeling,Operator need to put paper labels into label box,and the machine will label stickers automatically.The wet glue is the resin glue.This machine is mianly for the food,chemical industry.

Description

Designed for round bottles, it is suitable for all kinds of round bottle labeling. In the operation of the equipment, the resin glue is glued with the sticking rod, and then the label is transferred to the sticking rod from the label box, and the label is attached to the bottle after rotating and sucking to the vacuum belt by vacuum.

Features

  • 01The paste tank and the stainless steel roller are matched and processed precisely, and the glue is taken at any time, and no glue is leaked.
  • 02The special rubber roller is processed by several processes, so it is not deformed and wear-resistant. Glue is even and thin, saving glue consumption.
  • 03Use a vacuum suction label, with a belt, the label can be smoothly pasted on the bottle.
  • 04The photoelectric detection of the bottle, the standard is not issued if there is no bottle.
  • 05Using the frequency converter, the motor running speed can be adjusted freely, and the labeling capacity can be freely controlled.
  • 06It can be operated independently or connected to the production line.
  • 07With manual adjustment device, easy to adjust and operate.
  • 08Replacing a small amount of parts such as stick rods and vacuum belts can quickly adjust bottles that meet various specifications. And it can eliminate human adjustment factors to the greatest extent.
  • 09The machining process of the whole machine is precise and delicate, and the basic parts are all standard parts, which is convenient for maintenance and repair.
  • 10The whole machine is basically imported configuration to ensure the quality, make it more stable, longer use time, and low maintenance rate.

Advantage

  • 01The overall control panel is designed and manufactured with 304 stainless steel and aluminum alloy, which is easy to disassemble and assemble.
  • 02.The speed of labeling and labeling is easy to adjust, equipped with photoelectric detection, no bottle, no label delivery, beautiful appearance.
  • 03.Easy to operate, saving glue, accurate and smooth labeling.
  • 04Replacement of belts and rollers according to label specifications, modular replacement parts, easy to operate.

Applications

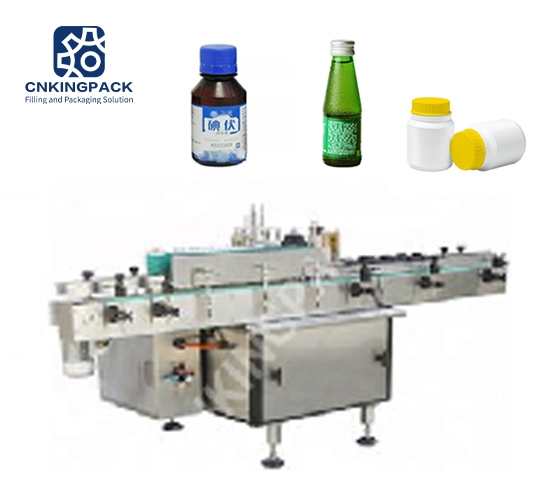

The wet glue labeling machine is suitable for paste labeling of 20-1200ml plastic or glass bottles and cylindrical containers in pharmaceutical, food, chemical and other industries.

Parameter Data

Model TXY-1
Voltage 220V/380v 50HZ/60HZ
Power 2kw
Compressed air pressure 0.3-0.4Mpa
Working speed 70-100 bottles/min(depends on the efficiency of labor)
Suitable bottle diameter 30-120mm
Labeling accuracy ±1mm(not including the deviation of bottle and label)
Sticker label size length 30-320mm width 30-100mm
Machine weight 600kg
Machine size 3000*1000*1000mm
