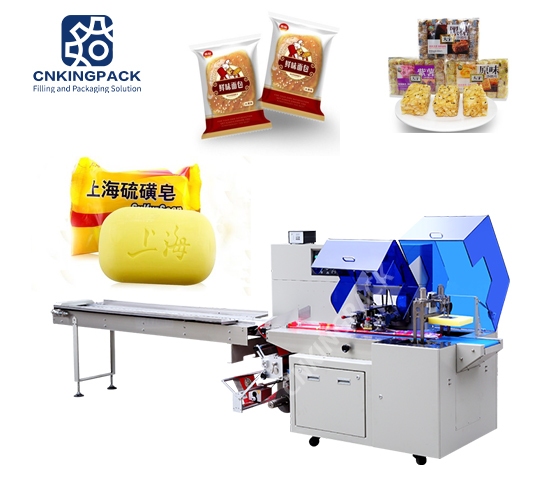

BG-600XW Reciprocating down film pillow packing machine

This Machine is suitable for packing regular objects, such as biscuits, fruits, candy, moon-cake, bread, bars, dessert, instant noodle, industrial parts, box, trays, face mask, etc

Description

This Machine is suitable for packing regular objects, such as biscuits, fruits, candy, moon-cake, bread, bars, dessert, instant noodle, industrial parts, box, trays, face mask, etc

Features

  • 01 Double motors, converter and PLC controller,flexible bag length setting and cutting,saving time and film.
  • 02 human-machine interface, convenient and quick parameter settings.
  • 03 Self diagnosis failure function, failure displayed clearly.
  • 04 High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
  • 05 Separated PID control system for temperature, suitable for various packing materials.
  • 06Stopping the machine in selected position, no sticking on the knife and no waste of the film.
  • 07 Simple driving system, reliable working, convenient maintenance.
  • 08 All controlled by program, convenient for function adjusting and upgrading.

Advantage

  • 01Cross seal and middle seal are controlled by independent Panasonic servo motor.With simple mechanical structure stable operation and low noise.
  • 02High speed,high accuracy,the maximum speed can be up to 500 bags/min.
  • 03 Human machine interface convenient and smart parameter settings.
  • 04 Automatic fault diagnosis function,fault displayed clearly.
  • 05Color tracking digital input seal cutting position,make the seal cutting position more accuracy.
  • 06 All controls can be implemented by software system,facilitate functional tuning and technical upgrading, and never fall behind.

Applications

Food

Cake, Bread, Meat , Pastry, Biscuits, Green Bean Cake, Several Sausage In a Bag, Noodles, Beef Jerky, Etc.

Hardwares

Hinge, Stainless Steel Pipe, Bearings , Screw, Nuts And Washer, Etc.

Hotel Supplies

Soap, Disposable Comb, Tooth Paste And Brush In One Set.

Stationary

Pencil, Eraser, Notebook, Paper Card, Adhensive Tape.

Electric Products

Battery, Usb Cable, Earphone, User Manual And Accessories In One Set.

Medical Products

Mask, Glove, Gauze, Capsule.

Daily Use Products

Knife, Fork, Plate, Sponge, Scourer, Wipes, Several Straws In a Bag, Cups, Bottles.

Parameter Data

Model  BG-600XW
Film width max 590mm
Bag length 120-450mm
Bag width 100-270mm
Product height  130mm
Film roll diameter max 320mm
Packing speed 40-80 bags/minute
Power specification  220v,50/60HZ, 3.2KW
Machine size L4426*W960*H1514mm
Machine weight 950kg

Note: Reciprocating end seal mechanism, the seal is more firm, and the seal cutter hasno loss. End-sealing gusseting device, the bag shape is more beautiful, and improved the product level.
