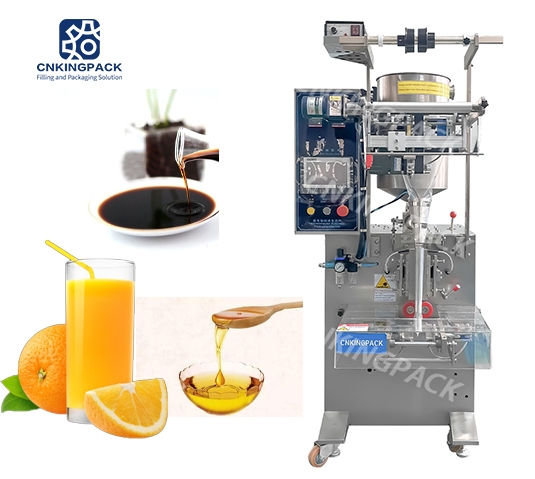

Automatic paste packing machine

Packing machineThis automatic liquid packing machine is suitable for automatic packaging of liquid of foods,medicine and chemicals,such as pesticide,shampoo,body foam bath lotion, facial cream, ingredient oil,fruit sauce,tomato ketchup and honey etc.

Description

This machine is designed for filling and back side sealing paste or liquid which is packed in bags like sauce
package,bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.It is widely used in food,beverage and chemical industries.

Features

  • 01Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically.
  • 02Computer PLC control and automatic alarming function.
  • 03English and Chinese human-machine operation interface, it is easy to operate, high degree of automation.
  • 04High sensitivity photoelectric eye color tracing, more accuracy.
  • 05 Famous brand components, ensure the quality and durability of the machine.

Advantage

  • 01Imported PLC control system and color touching screen enable easy and efficient operation.
  • 02Noiseless stepping motor to improve steady working condition and decrease vibrator and noise.
  • 03Fully food level stainless steel 304 material, ensure packing products keep clean and machine long life-span.
  • 04Imported color mark sensor, accurate cutting positioning, excellent machine performance and beautiful packaging.
  • 05A variety of automatic alarm protection functions are used to minimize losses.

Applications

Widely applied for food, Medicine, hand sanitizer chemical liquid products such as Ketchup, flavoring, Sauce, Pasty, Shampoo, cream, body wash liquid and so on.

Parameter Data

Model No.

 KP-320L

Packing speed

 40-60bag/min

Range of measurement

 0 -100ml

Bag size

 W:30-120mm  L:30-120mm



 Bag size can be lengthened according to customer requirement

Voltage

 380V or 220V or made accordingly

Power

 1100W

Dimension

 1150*750*1750mm

Packing material

 (PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE)



Method of Measurement

 Piston pump type

Weight

 280kg
