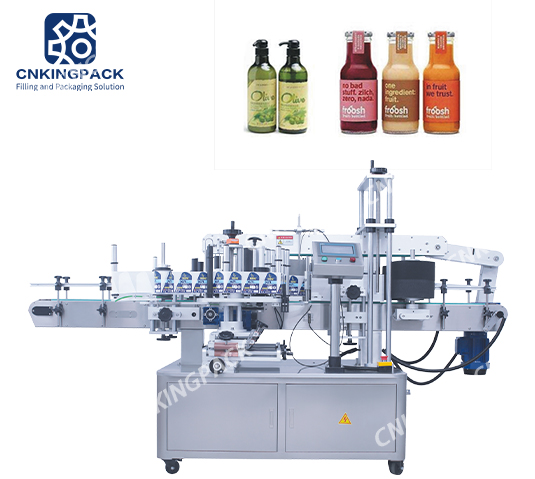

KP-160 Double Side Labeling Machine For Square Flat Bottle

Square Flat Bottle Small Ampoule Essential Oil Adhesive Sticker Labeling Applicator Machine Automatic Botttle Labeler is widely applied for lubricant, shampoo, clean liquid, oil, body lotion, juice and so on.

Description

For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
Application: Shampoo flat bottle labeling, flat bottle labeling oil, shampoo bottle labeling, etc.

Features

  • 01Wide range of applications, which can meet the entire circumference of round bottle labeling or semi-circle label, bottle label switching between simple and easy to adjust;
  • 02Labels coincide high standard with bypass adopt corrective institutions, marked with no easy road, labeling parts of the x/y/z direction and the inclination of eight three degrees of freedom is adjustable,adjust no dead ends,labels coincide with high ;
  • 03Labeling quality, using standard belt cover sexual repression, labeling smooth, wrinkle, improve the quality of packaging;
  • 04Flexible, stand-labeling bottles, bottles with automatic function, stand-alone production, can also be connected to production line;
  • 05Intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels,
    stickers and labels to prevent leakage of waste;
  • 06High stability, Delta PLC + touch screen + Japan Keyence Electric label sensor composed of advanced electronic control systems, support equipment 7 × 24-hour operation;
  • 07Adjustment is simple, labeling speed, transmission speed, divided bottle can realize stepless speed, adjust as needed;
  • 08Rugged, using three adjustment mechanism, take advantage of the stability triangle, the whole solid and durable. Stainless steel  and high-alloy steel, meet GMP production requirements;

Advantage

  • 01Adopt High stability Keyence labeling system, operation is stable and high-speed;
  • 02Using touch-screen control operating system, simple, practical, efficient;
  • 03Adapt variety shape of object in top labeling;
  • 04Screw adjustment to suppress body movements accurately;
  • 05Synchronization chain mechanism ensure labeling smooth and precise calibration;
  • 06Advanced technology of pneumatic coding system, print the batch number and expiry clearly.
  • 07Transmission-type rolling bottles, make sure the labels attached more firmly;
  • 08Labeling transparent label without bubble and wrinkle.

Applications

It is suitable for food, beverage, daily necessities, chemical industry and other industries. Square Flat Bottle Small Ampoule Essential Oil Adhesive Sticker Labeling Applicator Machine Automatic Botttle Labeler is widely applied for lubricant, shampoo, clean liquid, oil, body lotion, juice and so on.

Parameter Data

Model KP-160
Voltage   AC220V, 50Hz
Machine  Dimension Length 2800(L)*1500(W)*1500(H)(mm)
Conveyor  line height from the ground 800mm
Labeling   accuracy ±1mm
Labeling speed 10-120pcs/min
Applicable bottle range Length 25mm~250mm
Width 30~100mm
Height 50~350mm
Label size Length: 5-300mm
Width: 10-180mm (including backing width)
Maximum label diameter supply 300mm
Roll   label inner diameter 76mm
Working   environment 10~40℃
Relative   Humidity 15-85%
