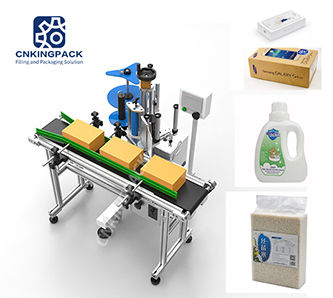

KP-220 Online Flat Labeling Machine without Conveyor System

 online labeling applicator ,Can be related to the production line, the flow of products, on the plane, curved labeling,implementing online marking, realize supporting to spurt the code conveyor belt, the flow through the object labeling


  • 01For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
  • 02Applicable products: Bottle surface or Box surface.
  • 03Industry: Widely used in printing, stationery, food, daily chemical, electronics, pharmaceutical, and other industries.
  • 04Application: Bottle surface or Box surface.


  • 01Wide range of applications near with conveyor system to achive the automatic labeling working.
  • 02Labeling accuracy is high, stepper motor or servo motor to send standard precision; marked with detour
    corrective institutions designed to ensure that the process is not about labels traction offset; eccentric technology for traction, traction tag non-skid, to ensure a standard precision;
  • 03High stability, Delta PLC + touch screen + Panasonic products sensor composed of advanced electronic control systems, support equipment 7 × 24-hour operation;
  • 04
    Flexible application can pick single production or assembly line production, the production site layout is simple;
  • 05Intelligent control, automatic photoelectric tracking, with no object no labeling, no label auto-correction and auto-detection function labels, stickers and labels to prevent leakage of waste;
  • 06Touch screen interface, the whole Chinese notes and complete failure prompts, simple and quick to adjust various parameters;
  • 07Powerful, with production counting function, power saving features, the production number setting prompts, parameter setting protection function to facilitate the production and management;


  • 01Adopt High stability Keyence labeling system, operation is stable and high-speed;
  • 02Using touch-screen control operating system, simple, practical, efficient;
  • 03Adapt variety shape of object in top labeling;
  • 04Screw adjustment to suppress body movements accurately;
  • 05Synchronization chain mechanism ensure labeling smooth and precise calibration;
  • 06Advanced technology of pneumatic coding system, print the batch number and expiry clearly.
  • 07Transmission-type rolling bottles, make sure the labels attached more firmly;
  • 08Labeling transparent label without bubble and wrinkle.


Suitable for bottle surface or box surface in food, beverage, daily necessities, chemical industry and other industries.

Parameter Data

Model KP-220
Labeling  Accuracy ±0.1mm
Labeling Speed 30-120pcs/min
Applicable Label Size Length Length:6mm~250mm
Width Width:20mm~150mm
Label Roll Outer Diameter(mm):φ280
Inner Diameter(mm):φ76mm
Applicable Products size No requirements (depending on production line parameters)
Power Supply 220V/50HZ
Weight 70KG
Machine Size(LxWxH) About 800mm x 800mm x 1600mm
