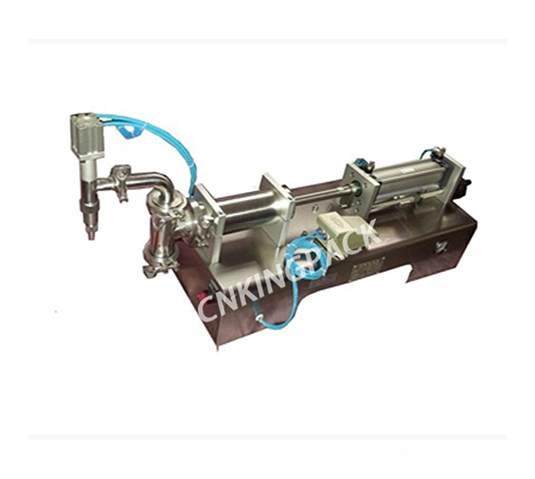

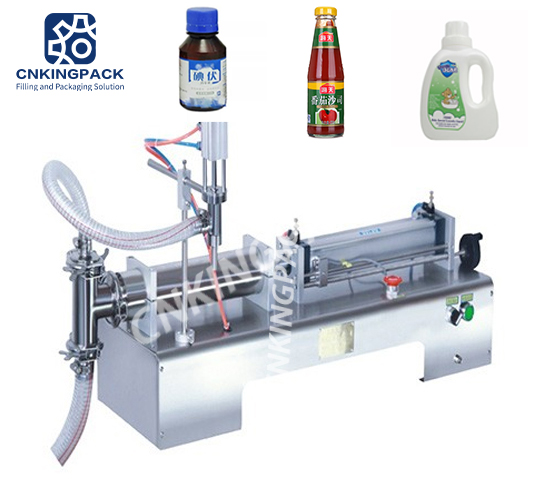

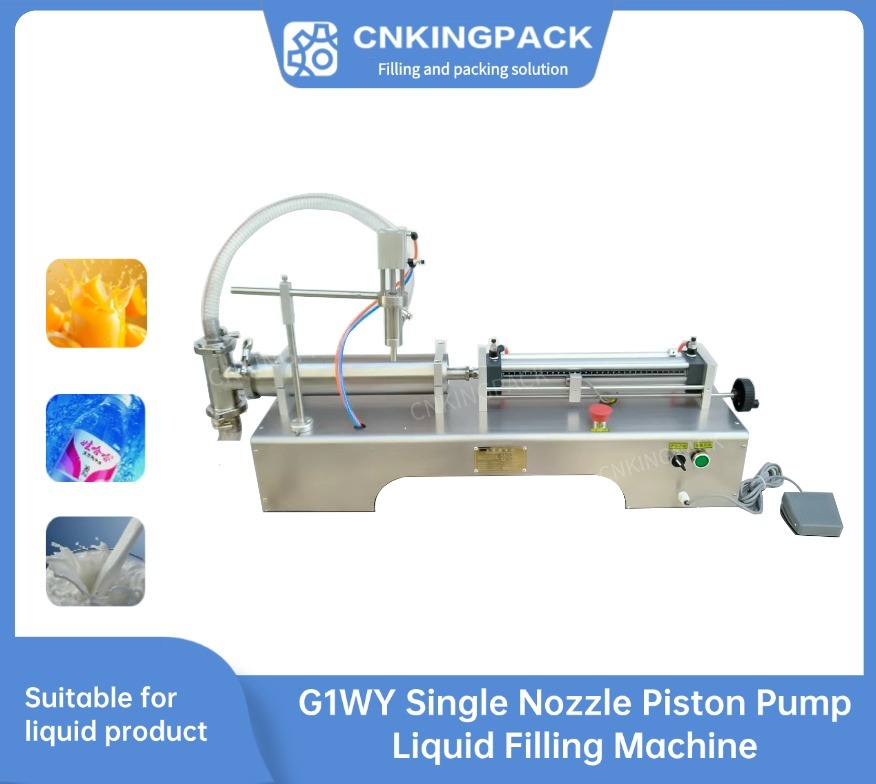

G1WY Single Nozzle Liquid Filling Machine
This machine is suitable for quantitative filling with low viscosity and no gas liquid, such as mineral water, juice, pesticide, soy sauce, and vinegar.
Description
This machine is suitable for quantitative filling with low viscosity and no gas liquid, such as mineral water, juice, pesticide, soy sauce, and vinegar.
Features
- 01Only for liquid filling,not for paste filling;
- 02Adopts pneumatic working principle, simple operation, high filling precision.
- 03A certain concentration or certain size granular materials ideal filling equipment.
- 04Stainless Steel Construction.
- 05 Rugged Rotary Valve System Design.
- 06Pneumatic Operation, the air compressor should be prepared by the buyer.The requirement of the air compressor: Pressure: 0.4-0.6MPa, Power: 1100W, Gas Capacity: >50L.
- 07 Piston Feed Speed Adjustment.
- 08No-drip Option Included and Installe.
- 09 Extremely Easy to Clean and Maintain.
- 10 Sanitary Stainless Steel Quick Disconnect Fittings.
- 11 Extremely Easy to Operate.
- 12Quick Connect/ Disconnect Pneumatic Fittings.
Advantage
- 01The filling volume is accurate and the error is small.
- 02The machine structure is simple and easy to operate.
- 03No noise, low energy consumption, energy saving and environmental protection.
Applications
Piston pneumatic Filler is of wide applicability and can be used for doing filling of creams and liquids in the fields of daily chemistry, food and beverage, pharmacy, chemistry and so on.

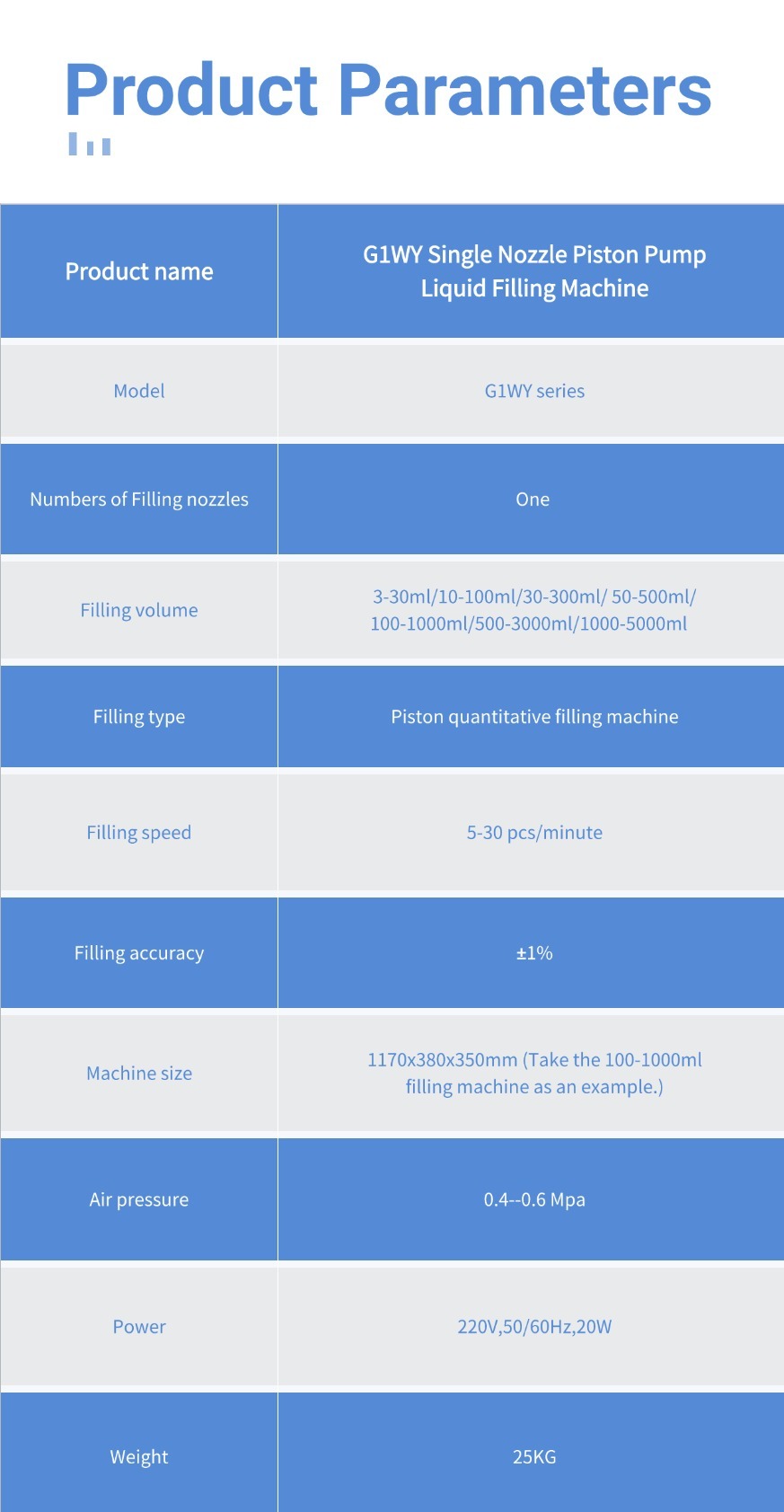

Parameter Data
|
Machine model |
G1WY-100 |
G1WY-300 |
G1WY-500 |
G1WY-1000 |
G1WY-3000 |
G1WY-5000 |
|
Filling speed |
10-30 bottle /min |
|||||
|
Filling range |
10-100ml |
30-300ml |
50-500ml |
100-1000ml |
500-3000ml |
1000-5000ml |
|
Air pressure |
0.4~0.6mpa |
|||||
|
Filling error |
≤ ±1% |
|||||
|
Voltage |
220V/50Hz or 110V/60Hz (Optional) |
|||||
