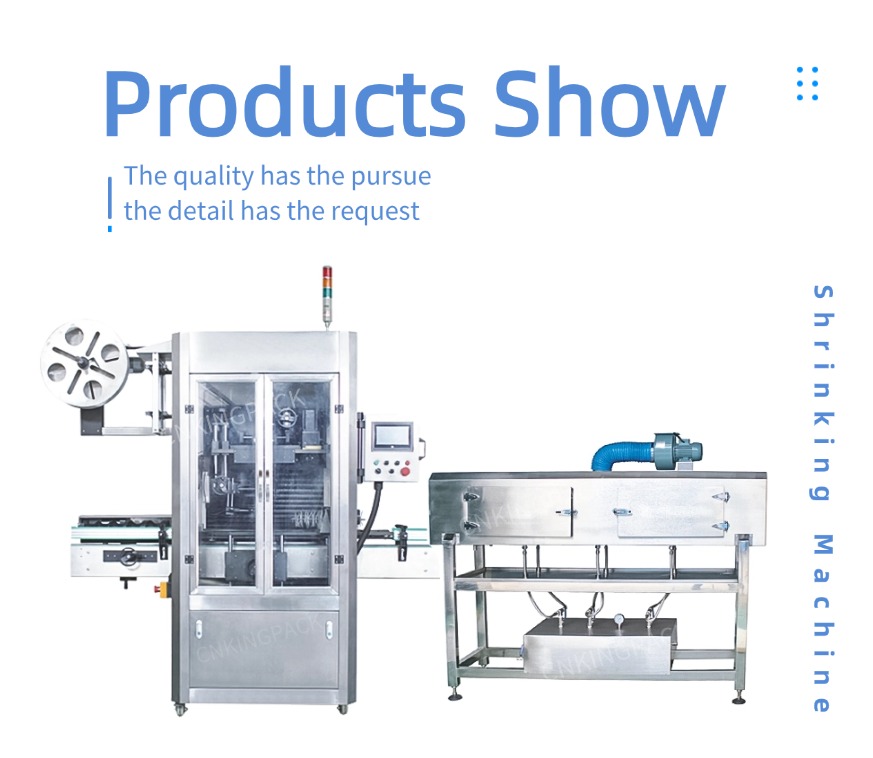

KP-260 Automatic Sleeve Labeling Machine with Electric Shrink Tunnel
Description
Shrink Sleeve Labeling Machine is a piece of highly automated equipment which has been widely used in labeling various bottled products in beverage, water, health care,
cosmetics, medicine, oil and other industries. The Shrink Sleeve Labeler has massively adopted aluminum alloy and stainless steel with high strength and corrosion resistance for its overall structure. The Sleeve Labeler adds modularized and humanized design to make all adjustments and replacements easier.

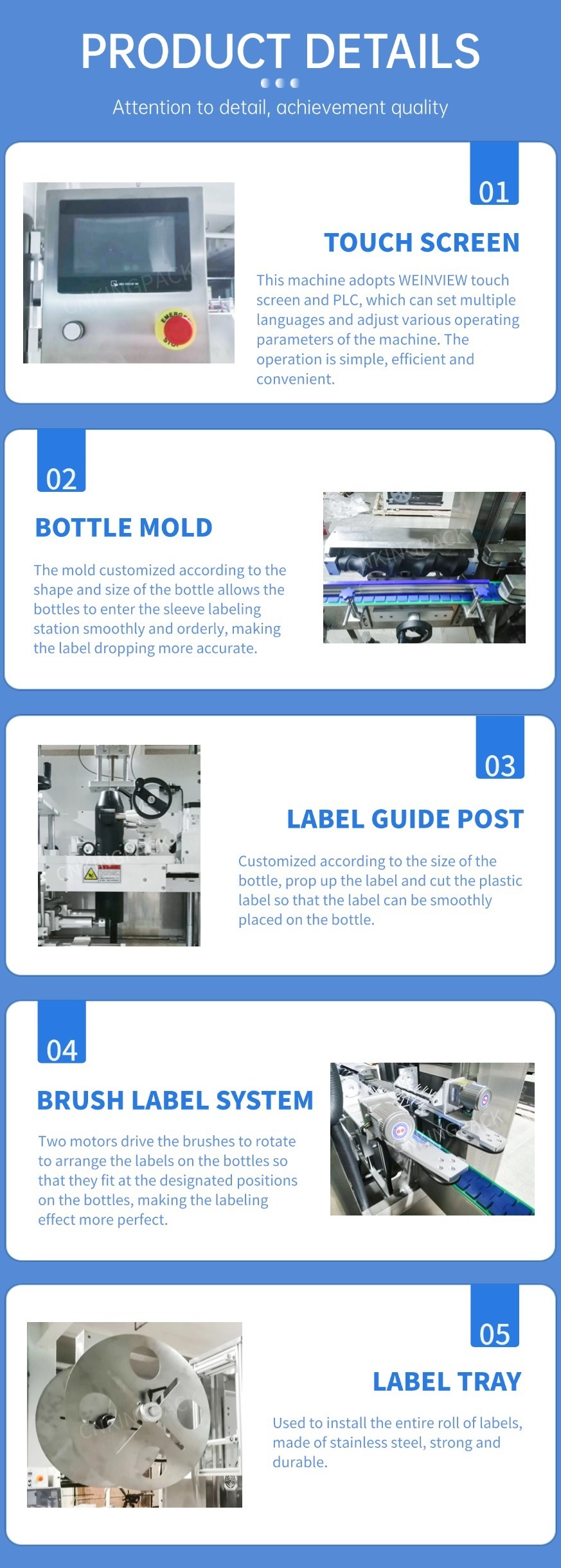

Features
1. Special holder holding style, stable label guiding.
2. Adopt superior magnalium alloy material, anodizing on surface, easier to be cleaned, resistant tocorrosion.
3. Synchronization driving cutting systems, makes the cutting keep a long life span and low cost
4. Adopt HMI controls, Chinese and English can be chosen, easy to operate.
Advantage
1. Low noise and low energy consumption，green and environmental protection, no pollution；
2. The structure of the machine is simple and the operation is convenient；
3. Wide range of applications, suitable for a variety of low-concentration liquid and paste products.

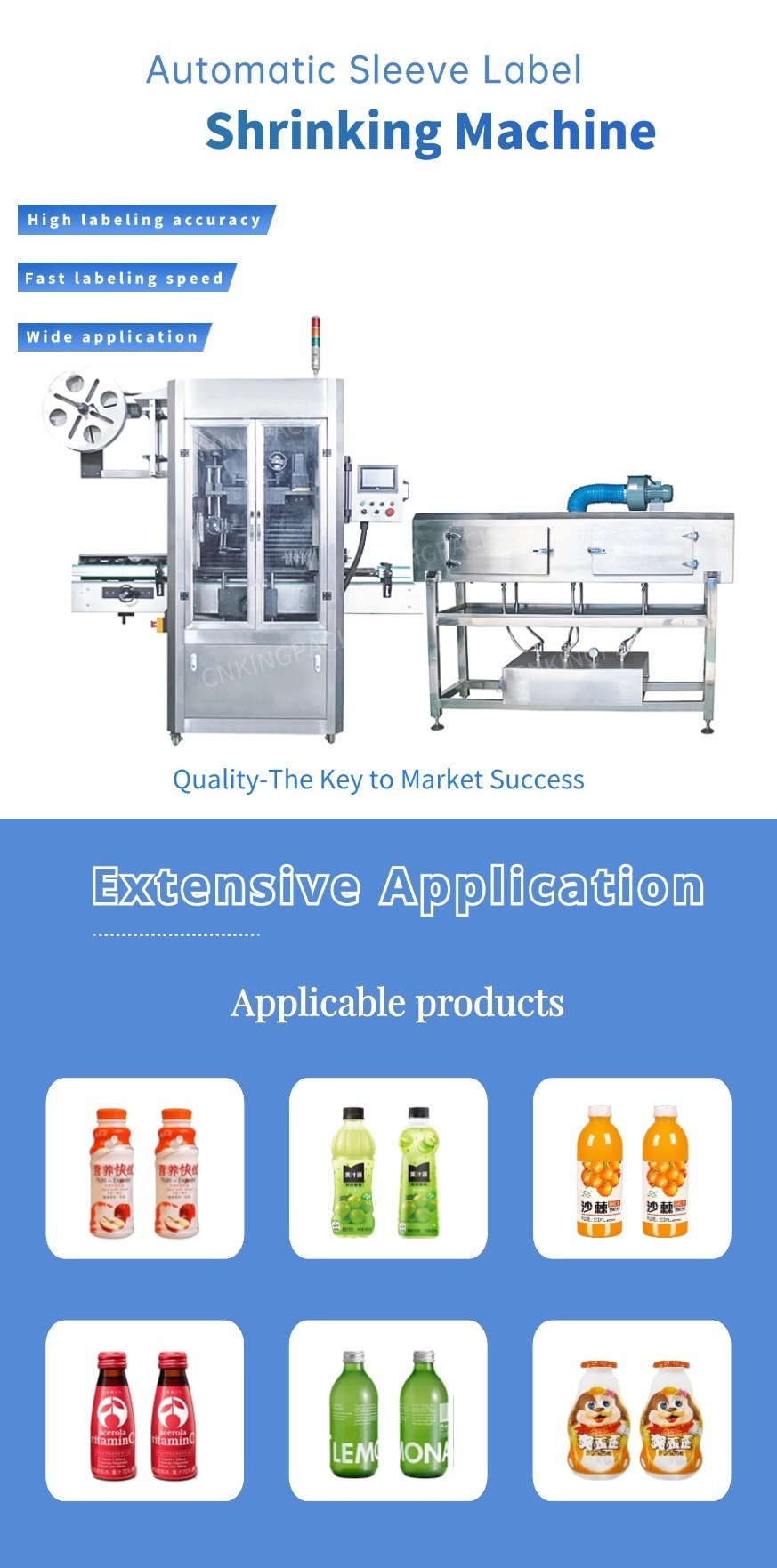

Applications
Shrink Sleeve Labeling Machine is a piece of highly automated equipment which has been widely used in labeling various bottled products in beverage, water, health care, cosmetics, medicine, oil and other industries.

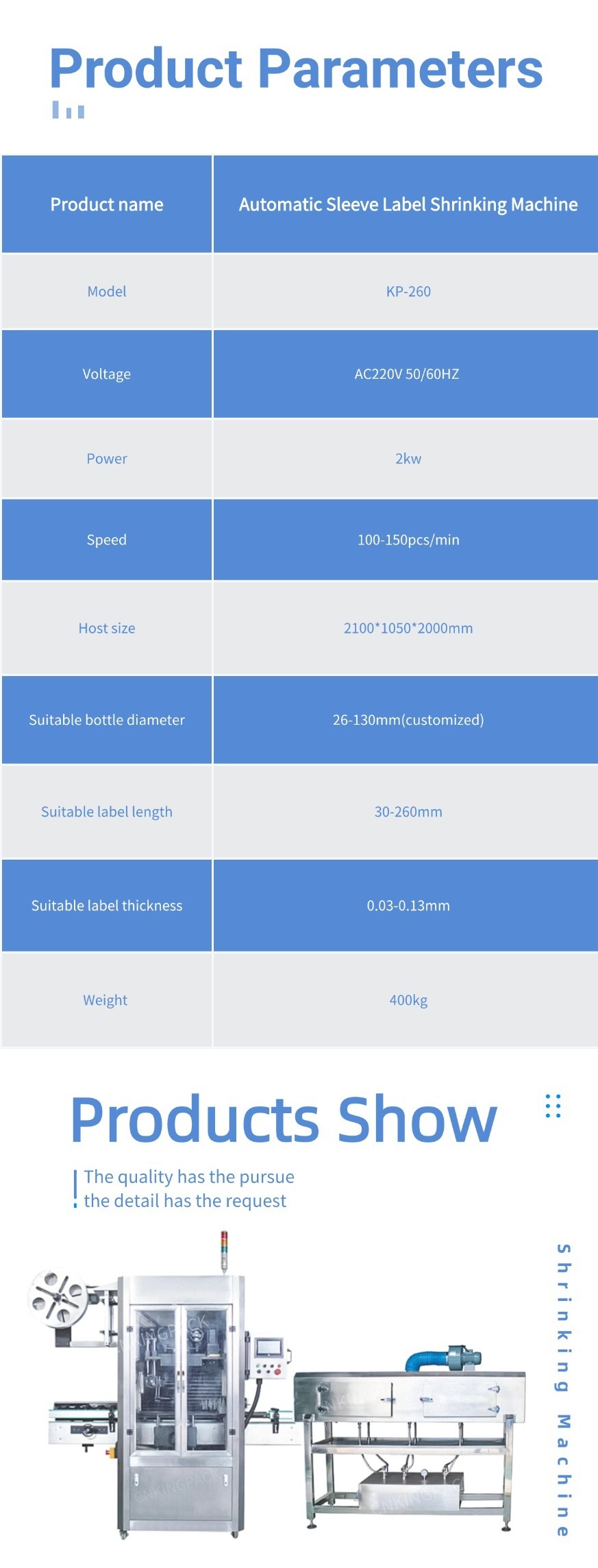

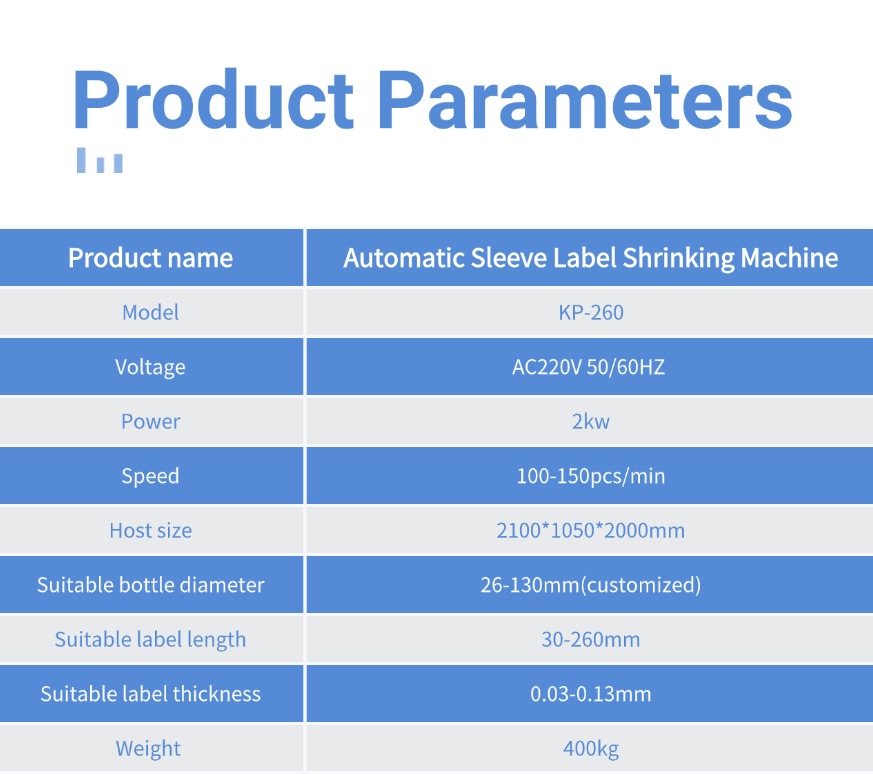

Parameter Data
|
Product Name
|
Sleeve labeling machine with electric shrink tunnel
|
|
Model
|
KP-260
|
|

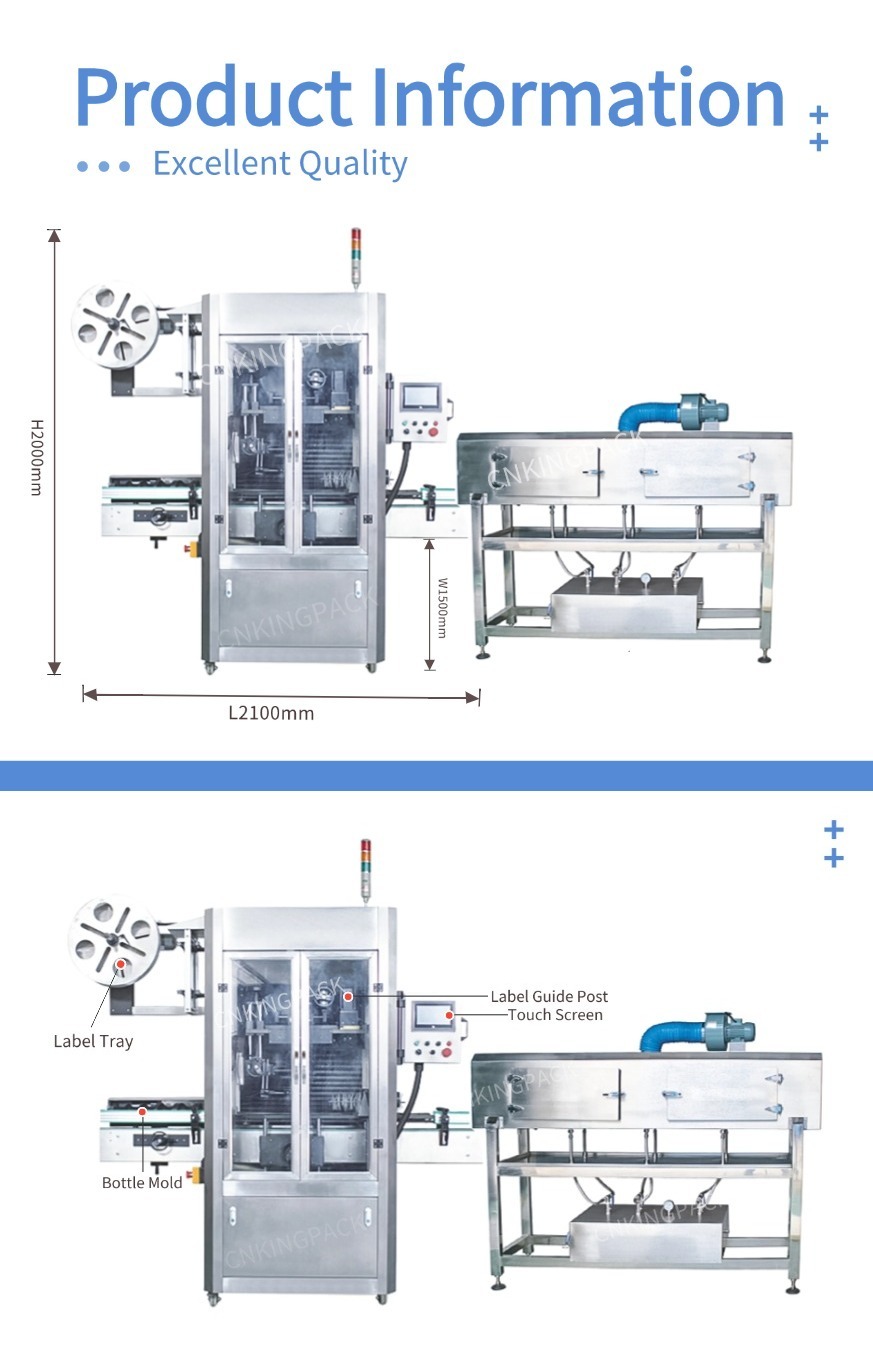

Size(mm)
|
5000 *1050*2000
|
|
Weight (kg)
|
300 |
|
Voltage/Frequency
|
220V/380V / 50HZ
|
|
Applicable label length(mm)
|
20～260mm
|
|
Applicable bottle size(mm)
|
Diameter 25~100mm, Height 30 ~280mm
|
|
Labeling accuracy
|
±1
|
|
Labeling speed(pcs/min)
|
25~120pcs/min
|
