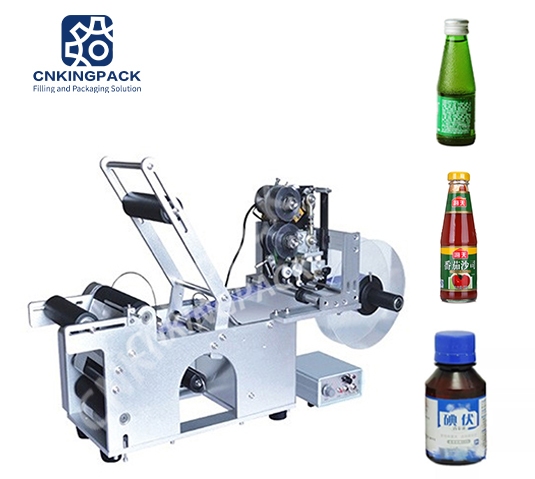

MT-50D Semi Automatic Sticker Labeling Machine

It's applied to label the self-adhesive label on various size cylinder products, as wine bottle , zip-top cans , etc.

Description

This semi automatic labeling machine is designed for labeling sticker on round bottles like beverage bottle,make up remover bottles,water bottles,food cans.It can adjust the outputting distance of labels slightly and it is with date coder which can code production date or production number.This machine is easy to operate and can help you improve working efficiency

Features

  • 01This machine is suitable for round bottles of various sizes and the production of small quantities of many varieties.
  • 02This machine can be used in stand-alone label only.
  • 03 This machine adopts hot stamp ribbon instead of liquid ink. It can print clear words on any packing materials with the features of simple operation and convenient maintenance.

Advantage

  • 01Wide application, can meet the 10-100mm diameter range cylinder labeling.
  • 02High precision end labeling, label place deviation less than 0.5mm.
  • 03This machine adopts hot stamp ribbon instead of liquid ink. It can print clear words on any packing materials with the features of simple operation and convenient maintenance.
  • 04The body is made of stainless steel, with long service life.
  • 05Using synchronous belt traction, mechanical stability greatly improved.
  • 06Desktop design, Stainless steel body, compact appearance, powerful.
  • 07 Using the advanced electric eye detection sensitivity, object, label.
  • 08This machine complies with CE certification

Applications

This machine suitable for round bottle, circular tank, cylinder self-adhesive labeling, suitable for PET bottles, plastic bottles, glass bottles, metal bottles round bottle labeling, widely used in cosmetics, food, beverage, pharmaceutical and other industries, greatly enhance the productivity and quality labeling.

Parameter Data

Model
MT-50D
Diameter of bottle
Φ15-120mm
Min. label size
Width 26mm* Length 25mm
Max. Label size
Width 140mm* Length 350mm
Outside diameter of label roll(max)
Φ275mm
Inside diameter of label roll
Φ75mm
Accuracy of labeling
±0.5mm
Voltage/Frenquency
110/220V,50/60Hz,100W
Package size
About 650*450*450mm
Package weight
About 25kg
